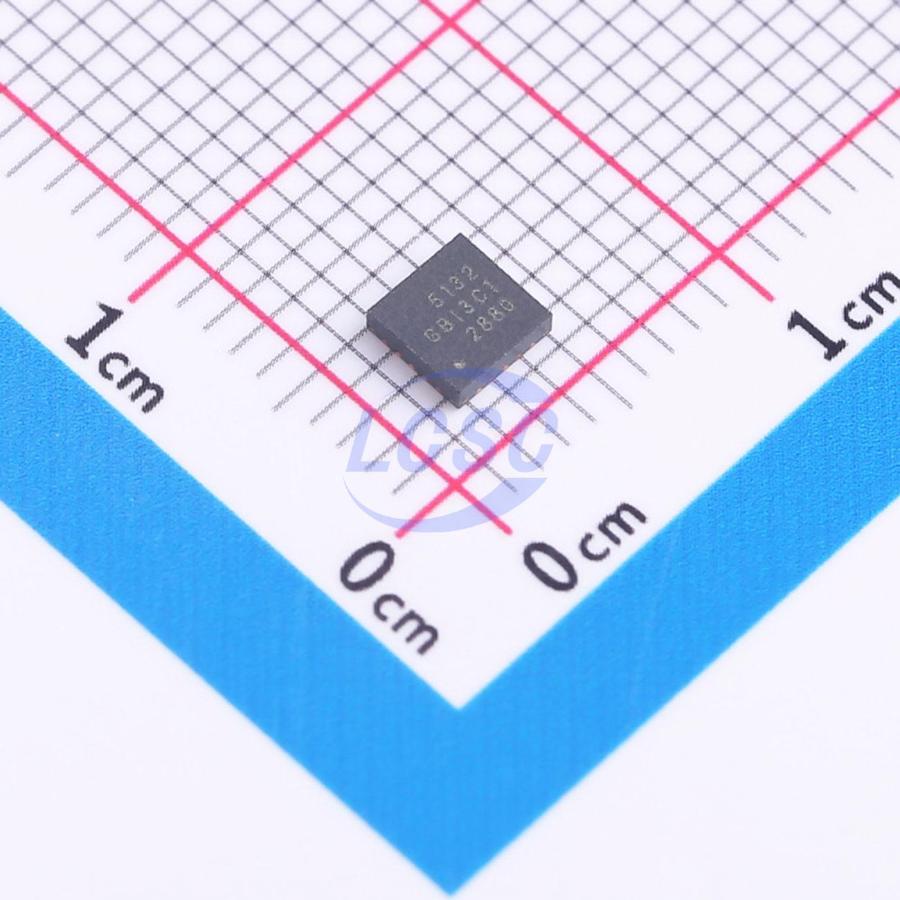

GBI5132QYAR

The GBI5132 is a low-noise, low-dropout linear regulator (LDO) capable of sourcing 3A with only 120mV maximum dropout. The device is offered in two output voltage ranges, which is pin-programmable from 0.5V to 2.075V, with a 25mV resolution, and adjustable from 0.5V to 5.15V using an external resistor divider. The combination of low-noise, high-PSRR, and high output-current capability makes the GBI5132 ideal to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications, such as SerDes, ADCs, DACs and RF components. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (1% over line and load), remote sensing, excellent transient performance, and soft-start capabilities of the GBI5132 ensure optimal system performance. GBI5132 is a high current (3A) low noise (7μVrms) high accuracy (1%) low-dropout linear voltage regulator (LDO) with maximum 120mV dropout voltage. The features make the device a robust solution for the application requirement of clean accurate power supply. GBI5132 has several features that make the device useful in a variety of applications. The features include: Low noise, high PSRR output Flexible output voltage setting with internal resistor network Optional bias rail Power-good output Programmable soft-start Foldback current limit Enable function Active discharge Thermal protection The high performance of the GBI5132 limits power supply generated phase noise and clock jitter, making this device ideal for powering high-performance serializer and de-serializer (SerDes), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and RF components. Specifically, RF amplifiers benefit from the high-performance and >5V output capability of the device.

Applications

• Macro remote radio units (RRU)
• Outdoor backhaul units
• Active antenna system mMIMO (AAS)
• Ultrasound scanners
• Lab and field instrumentation Sensor, imaging and radar

Key features

• Input voltage range:
• With BIAS: 1.1V to 6.5V
• Without BIAS: 1.4V to 6.5V
• Output voltage range:
• Adjustable operation: 0.5V to 5.15V
• Fixed operation: 0.5V to 2.075V
• Low dropout: 120mV (max) at 3A
• 1% (max) accuracy over line and load with BIAS
• Output voltage noise:
• -7μVRMS at 0.5V output
• -11.9μVRMS at 5.15V output
• Power-supply ripple rejection:
• 41.3dB at 500kHz
• Excellent load transient response
• Adjustable soft-start for in-rush control
• Open-drain power-good (PG) output
• Active discharge integrated
• Thermal shutdown and over current protection
• Available in 3.5mm x 3.5mm QFN-20 package
