TECH PUBLICDatasheet (PDF)

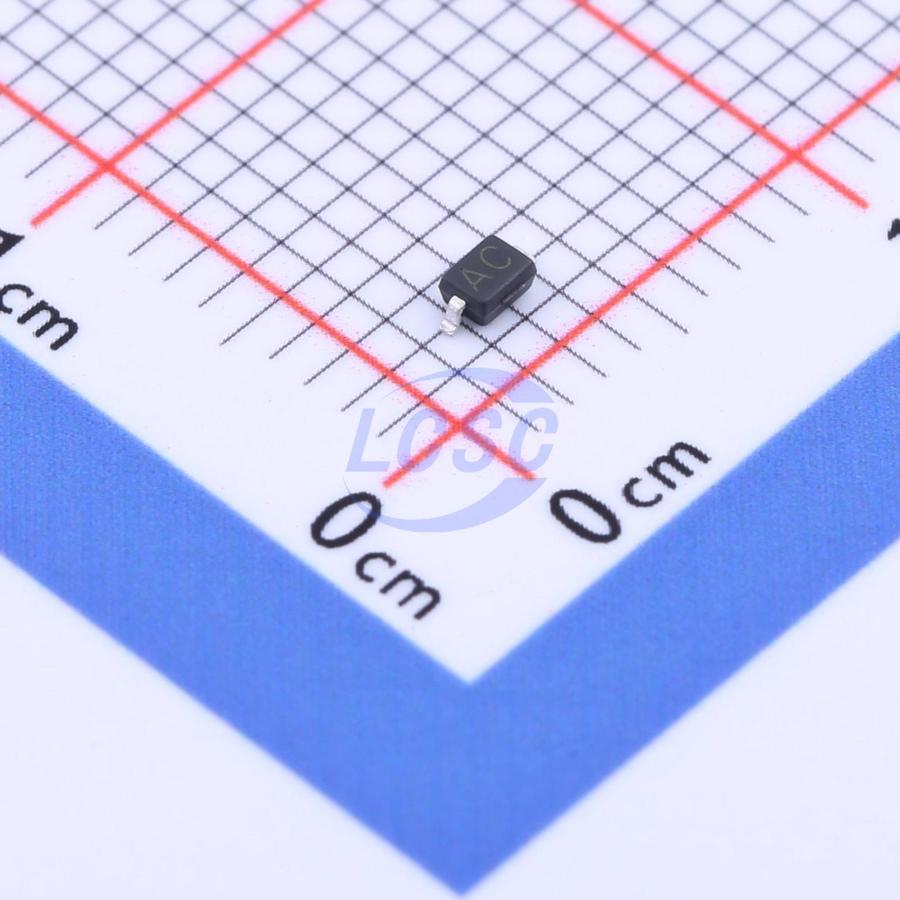

GBLC05CI
20VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 5VWM 20VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- GBLC05CI
- Store part #
- C2936992
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
930 in stock
#C2936992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹5.37 | ₹537.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 3,000+ | ₹3.97 | ₹11,910.00 |
| 6,000+ | ₹3.59 | ₹21,540.00 |
| 9,000+ | ₹3.40 | ₹30,600.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GBLC05CI
₹66.40 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 18A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 350W peak pulse power (8/20μs)
- Low operating :5V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage:nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
