GigaDevice Semicon BeijingDatasheet (PDF)

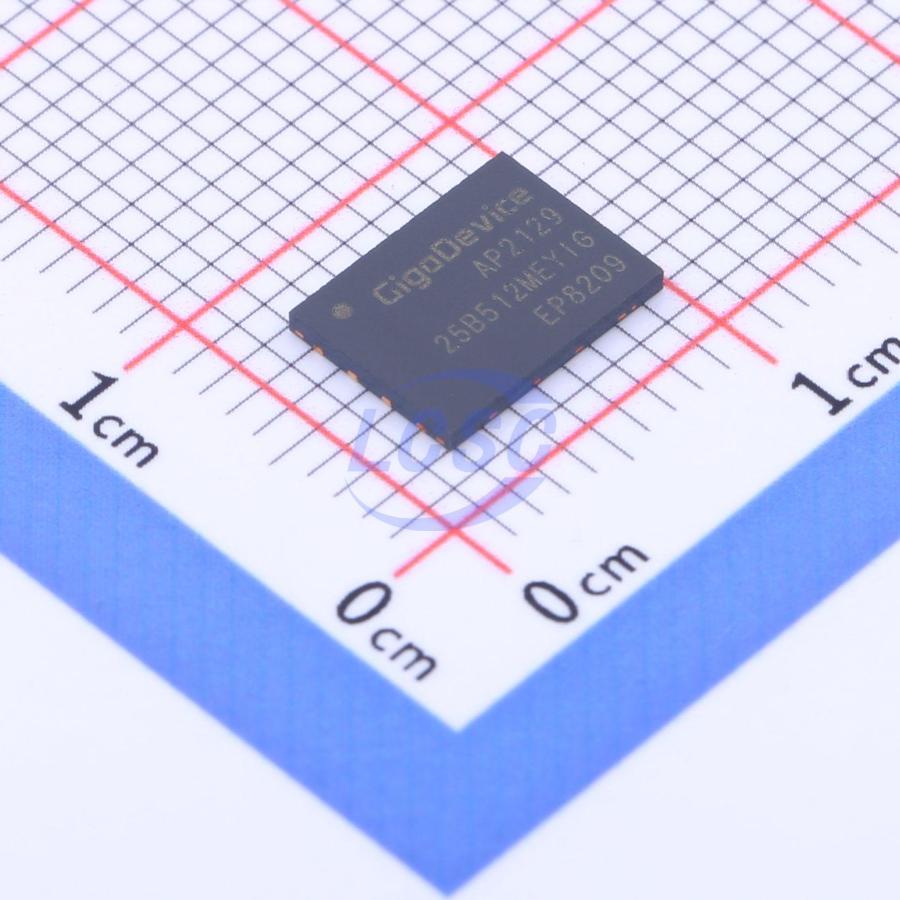

GD25B512MEYIGR
512Mbit 2.7V~3.6V 133MHz SPI WSON-8-EP(6x8) Memory
WSON-8-EP(6x8)RoHSActive
Uniform Sector Standard and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25B512MEYIGR
- Store part #
- C2974186
- Package / case
- WSON-8-EP(6x8)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C2974186
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,886.29 | ₹1,886.29 |
| 10+ | ₹1,695.93 | ₹16,959.30 |
| 30+ | ₹1,497.54 | ₹44,926.20 |
| 100+ | ₹1,400.41 | ₹1,40,041.00 |
1 × ₹1,886.29
₹1,886.29
excl. GST
₹2,225.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25B512MEYIGR
₹1,886.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 512Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 150us
- Standby Supply Current
- 16uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- 3A991b1a
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
The GD25B512ME (512M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Quad SPI and DTR mode: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3, and RESET#. The Quad I/O & Quad output data is transferred with speed of 532Mbits/s, and the DTR Quad I/O data is transferred with speed of 720Mbits/s.
Key features
- 512M-bit Serial Flash - 64M-Byte - 256 Bytes per programmable page
- Standard, Quad SPI, DTR, QPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, RESET#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3, RESET#
- QPI: SCLK, CS#, IO0, IO1, IO2, IO3, RESET#
- SPI DTR (Double Transfer Rate) Read
- 3 or 4-Byte Address Mode
- High Speed Clock Frequency
- 133MHz for fast read
- Quad I/O Data transfer up to 532Mbits/s
- QPI Mode Data transfer up to 532Mbits/s
- DTR Quad I/O Data transfer up to 720Mbits/s
- Allows XIP (eXecute in Place) Operation
- High speed Read reduce overall XiP instruction fetch time
- Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Individual Block Protection
- Fast Program/Erase Speed
- Page Program time: 0.15ms typical
- Sector Erase time: 30ms typical
- Block Erase time: 0.15/0.22s typical
- Chip Erase time: 150s typical
- Flexible Architecture
- Sector of 4K-Byte
- Block of 32/64K-Byte
- Erase/Program Suspend/Resume
- Low Power Consumption
- 16μA typical stand-by current
- 2μA typical power-down current
- Advanced Security Features
- 128-bit Unique ID
- 4K-Byte Security Registers With OTP Lock
- Single Power Supply Voltage
- Full voltage range: 2.7~3.6V
- Endurance and Data Retention
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Package Information
- SOP16 300mil
- WSON8 (8x6mm)
- TFBGA-24ball (5x5 Ball Array)
