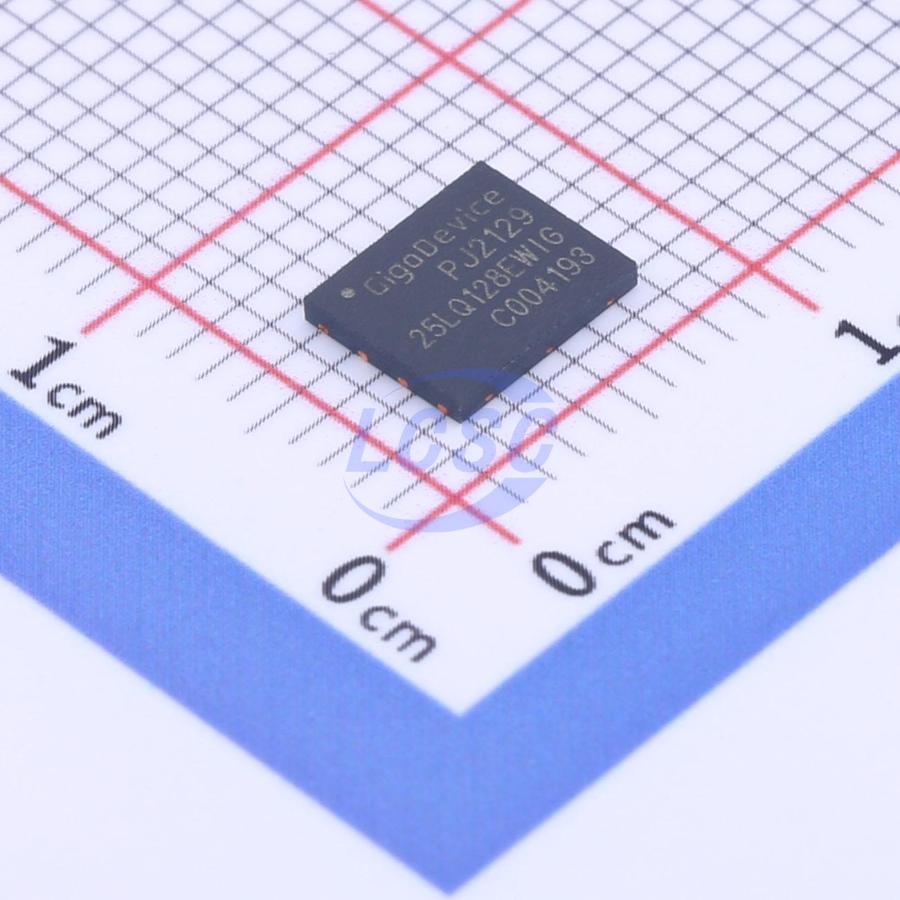

GD25LQ128EWIGR

The GD25LQ128E (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#). The Dual I/O data is transferred with speed of 240Mbit/s, and the Quad I/O data is transferred with speed of 480Mbit/s.

Key features

• 128M-bit Serial Flash
• 16M-Byte
• 256 Bytes per programmable page
• Fast Program/Erase Speed
• Page Program time: 0.5ms typical
• Sector Erase time: 70ms typical
• Block Erase time: 0.16s/0.3s typical
• Chip Erase time: 50s typical
• Standard, Dual, Quad SPI, QPI
• Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#, RESET#
• Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#, RESET#
• Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3, RESET#
• QPI: SCLK, CS#, IO0, IO1, IO2, IO3, RESET#
• Flexible Architecture
• Uniform Sector of 4K-Byte
• Uniform Block of 32/64K-Byte
• High Speed Clock Frequency
• 120MHz for fast read with 30PF load
• Dual I/O Data transfer up to 240Mbits/s
• Quad I/O Data transfer up to 480Mbits/s
• QPI Mode Data transfer up to 480Mbits/s
• Low Power Consumption
• 35μA typical standby current
• 1μA typical deep power down current
• Advanced Security Features
• 128-bit Unique ID for each device
• Serial Flash Discoverable parameters (SFDP) register
• 3x1024-Byte Security Registers With OTP Locks
• Software/Hardware Write Protection
• Write protect all/portion of memory via software
• Enable/Disable protection with WP# Pin
• Top/Bottom Block protection
• Single Power Supply Voltage
• Full voltage range: 1.65-2.0V
• Endurance and Data Retention
• Minimum 100,000 Program/Erase Cycles
• 20-year data retention typical
• Allows XiP (eXecute In Place) Operation
• High speed Read reduce overall XiP instruction fetch time
• Continuous Read with Wrap further reduce data latency to fill up SoC cache
• Package Information
• SOP8 208mil
• VSOP8 208mil
• SOP16 300mil
• USON8 (4x4mm)
• WSON8 (6x5mm)
• WSON8 (8x6mm)
• TFBGA-24ball (5x5 Ball Array)
• WLCSP 4-4 ball array
