GigaDevice Semicon BeijingDatasheet (PDF)

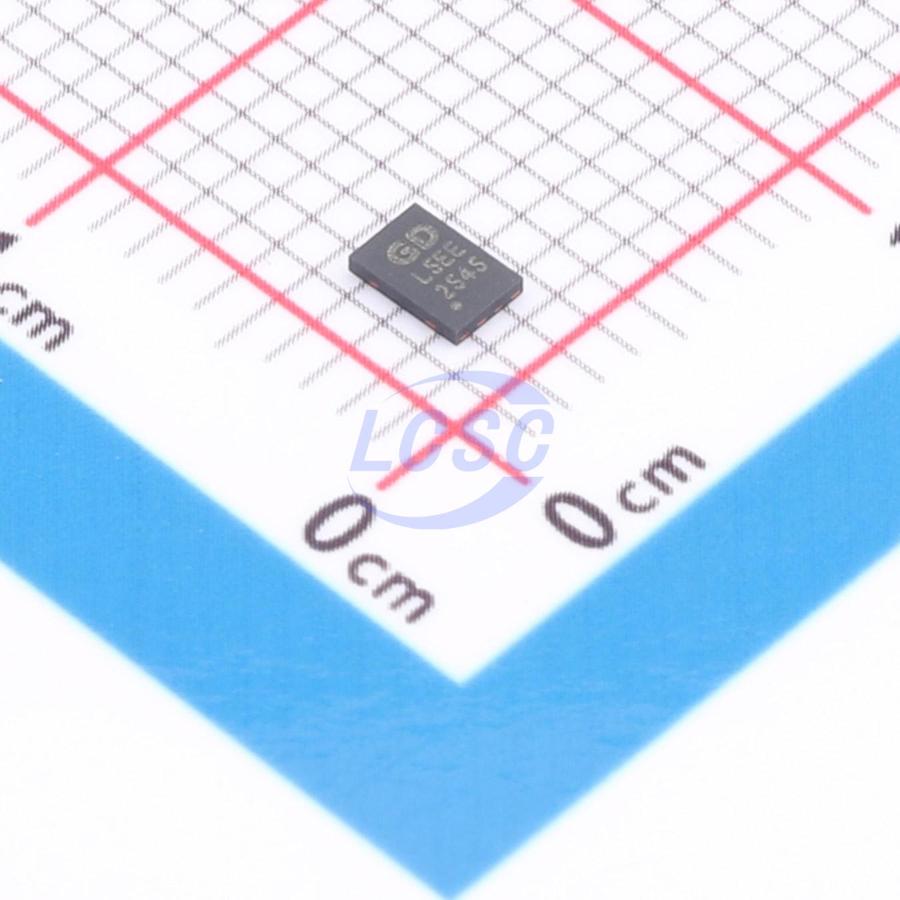

GD25LQ16EEIGR
16Mbit 1.65V~2.1V 133MHz SPI USON-8(2x3) Memory
USON-8(2x3)RoHSActive
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25LQ16EEIGR
- Store part #
- C3202815
- Package / case
- USON-8(2x3)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,484 in stock
#C3202815
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.95 | ₹99.95 |
| 10+ | ₹80.44 | ₹804.40 |
| 30+ | ₹70.48 | ₹2,114.40 |
| 100+ | ₹60.71 | ₹6,071.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.05 | ₹52,050.00 |
1 × ₹99.95
₹99.95
excl. GST
₹117.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25LQ16EEIGR
₹99.95 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Memory Size
- 16Mbit
- Voltage - Supply
- 1.65V~2.1V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Interface
- SPI
- Standby Supply Current
- 10uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.089 g
Overview
The GD25LQ16E (16M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#). The Dual I/O data is transferred with speed of 266Mbit/s, and the Quad I/O data is transferred with speed of 532Mbit/s.
Key features
- 16M-bit Serial Flash - 2048K-Byte - 256 Bytes per programmable page
- Standard, Dual, Quad SPI, QPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- QPI: SCLK, CS#, IO0, IO1, IO2, IO3
- High Speed Clock Frequency
- 133MHz for fast read with 30PF load
- Dual I/O Data transfer up to 266Mbits/s
- Quad I/O Data transfer up to 532Mbits/s
- QPI Mode Data transfer up to 532Mbits/s
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top/Bottom Block protection
- Endurance and Data Retention
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Allows XiP (eXecute In Place) Operation
- High speed Read reduce overall XiP instruction fetch time
- Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Fast Program/Erase Speed
- Page Program time: 0.4ms typical
- Sector Erase time: 40ms typical
- Block Erase time: 0.15s/0.2s typical
- Chip Erase time: 4.5s typical
- Flexible Architecture
- Uniform Sector of 4K-Byte
- Uniform Block of 32/64K-Byte
- Low Power Consumption
- 10μA typical standby current
- 1μA typical deep power down current
- Advanced Security Features
- 128-bit Unique ID for each device
- Serial Flash Discoverable parameters (SFDP) register
- 3x1024-Byte Security Registers With OTP Locks
- Single Power Supply Voltage
- Full voltage range: 1.65-2.1V
- Package Information
- SOP8 150mil
- SOP8 208mil
- USON8 (3x2mm, 0.45mm thickness)
- USON8 (3x4mm)
- WSON8 (6x5mm)
- WLCSP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| GD25LB16EEIGR#C20278496GigaDevice Semicon Beijing · USON-8(2x3) | GigaDevice Semicon Beijing | USON-8(2x3) | On request | ₹88.18 · 0 in stock | View | |
