GigaDevice Semicon BeijingDatasheet (PDF)

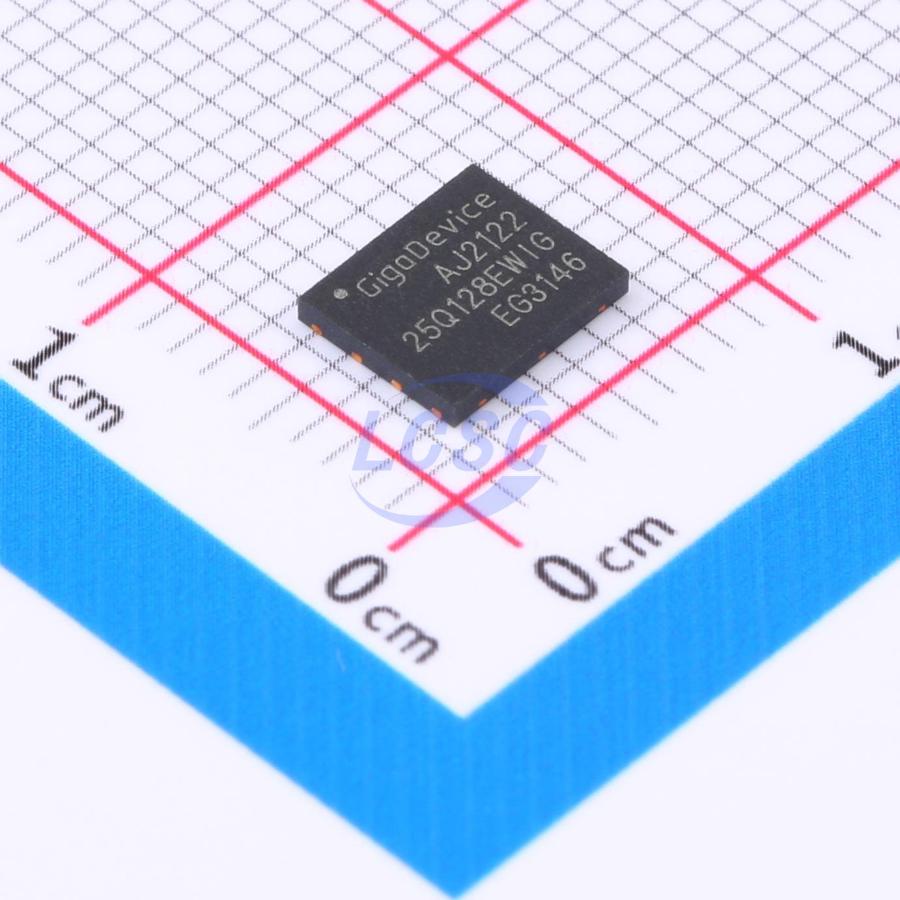

GD25Q128EWIGR
128Mbit 2.7V~3.6V 133MHz SPI WSON-8-EP(5x6) Memory
WSON-8-EP(5x6)RoHSActive
Dual and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25Q128EWIGR
- Store part #
- C2982923
- Package / case
- WSON-8-EP(5x6)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,114 in stock
#C2982923
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹440.33 | ₹440.33 |
| 10+ | ₹396.62 | ₹3,966.20 |
| 30+ | ₹369.45 | ₹11,083.50 |
| 100+ | ₹341.39 | ₹34,139.00 |
| 500+ | ₹183.75 | ₹91,875.00 |
| 1,000+ | ₹178.31 | ₹1,78,310.00 |
1 × ₹440.33
₹440.33
excl. GST
₹519.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25Q128EWIGR
₹440.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 128Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 150ms@(32KB);250ms@(64KB)
- Page Programming Time (Tpp)
- 500us
- Standby Supply Current
- 14uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.226 g
Overview
The GD25Q128E (128M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#/RESET#). The Dual I/O data is transferred with speed of 266Mbit/s, and the Quad I/O data is transferred with speed of 532Mbit/s.
Key features
- 128M-bit Serial Flash
- 16M-Byte
- 256 Bytes per programmable page
- Standard, Dual, Quad SPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#, RESET#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#, RESET#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3, RESET#
- Fast Program/Erase Speed
- Page Program time: 0.5ms typical
- Sector Erase time: 45ms typical
- Block Erase time: 0.15s/0.25s typical
- Chip Erase time: 50s typical
- Flexible Architecture
- Uniform Sector of 4K-Byte
- Uniform Block of 32/64K-Byte
- High Speed Clock Frequency
- 133MHz for fast read with 30PF load
- Dual I/O Data transfer up to 266Mbits/s
- Quad I/O Data transfer up to 532Mbits/s
- Low Power Consumption
- 14μA typical standby current
- 1μA typical deep power down current
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top/Bottom Block protection
- Advanced Security Features
- 128-bit Unique ID for each device
- Serial Flash Discoverable parameters (SFDP) register
- 3x1024-Byte Security Registers With OTP Locks
- Endurance and Data Retention
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Allows XiP (eXecute in Place) Operation
- High speed Read reduce overall XiP instruction fetch time
- Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Single Power Supply Voltage
- Full voltage range: 2.7-3.6V
- Package Information
- SOP8 208mil
- SOP16 300mil
- USON8 (4x4mm, 0.45mm thickness)
- WSON8 (6x5mm)
- WSON8 (8x6mm)
- TFBGA-24ball (6x4 Ball Array)
- TFBGA-24ball (5x5 Ball Array)
