GigaDevice Semicon BeijingDatasheet (PDF)

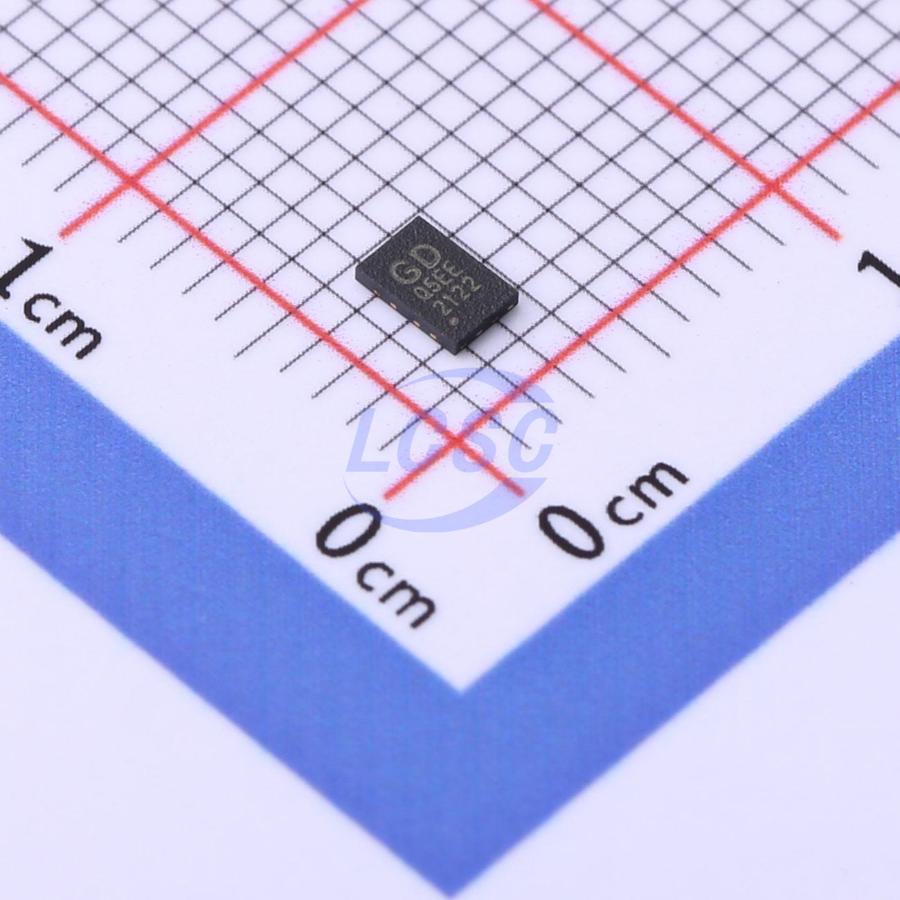

GD25Q16EEIGR
16Mbit 2.7V~3.6V 133MHz SPI USON-8(2x3) Memory RoHS
USON-8(2x3)ROHS3 CompliantActive
Dual and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25Q16EEIGR
- Store part #
- C2986331
- Package / case
- USON-8(2x3)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,372 in stock
#C2986331
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.22 | ₹201.22 |
| 10+ | ₹173.90 | ₹1,739.00 |
| 30+ | ₹160.23 | ₹4,806.90 |
| 100+ | ₹146.58 | ₹14,658.00 |
| 500+ | ₹75.03 | ₹37,515.00 |
| 1,000+ | ₹70.90 | ₹70,900.00 |
1 × ₹201.22
₹201.22
excl. GST
₹237.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25Q16EEIGR
₹201.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 150ms@(32KB)
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 11uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The GD25Q16E (16M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#). The Dual I/O data is transferred with speed of 266Mbit/s, and the Quad I/O data is transferred with speed of 532Mbit/s.
Key features
- 16M-bit Serial Flash
- 2048K-Byte - 256 Bytes per programmable page
- Standard, Dual, Quad SPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- High Speed Clock Frequency
- 133MHz for fast read with 30PF load
- Dual I/O Data transfer up to 266Mbits/s
- Quad I/O Data transfer up to 532Mbits/s
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top/Bottom Block protection
- Endurance and Data Retention
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Allows XiP (eXecute in Place) Operation
- High speed Read reduce overall XiP instruction fetch time
- Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Fast Program/Erase Speed
- Page Program time: 0.4ms typical
- Sector Erase time: 45ms typical
- Block Erase time: 0.15s/0.25s typical
- Chip Erase time: 6s typical
- Flexible Architecture
- Uniform Sector of 4K-Byte
- Uniform Block of 32/64K-Byte
- Low Power Consumption
- 11μA typical standby current
- 1μA typical deep power down current
- Advanced Security Features
- 128-bit Unique ID for each device
- Serial Flash Discoverable parameters (SFDP) register
- 2x1024 -Byte Security Registers With OTP Locks
- Single Power Supply Voltage
- Full voltage range: 2.7-3.6V
