GigaDevice Semicon BeijingDatasheet (PDF)

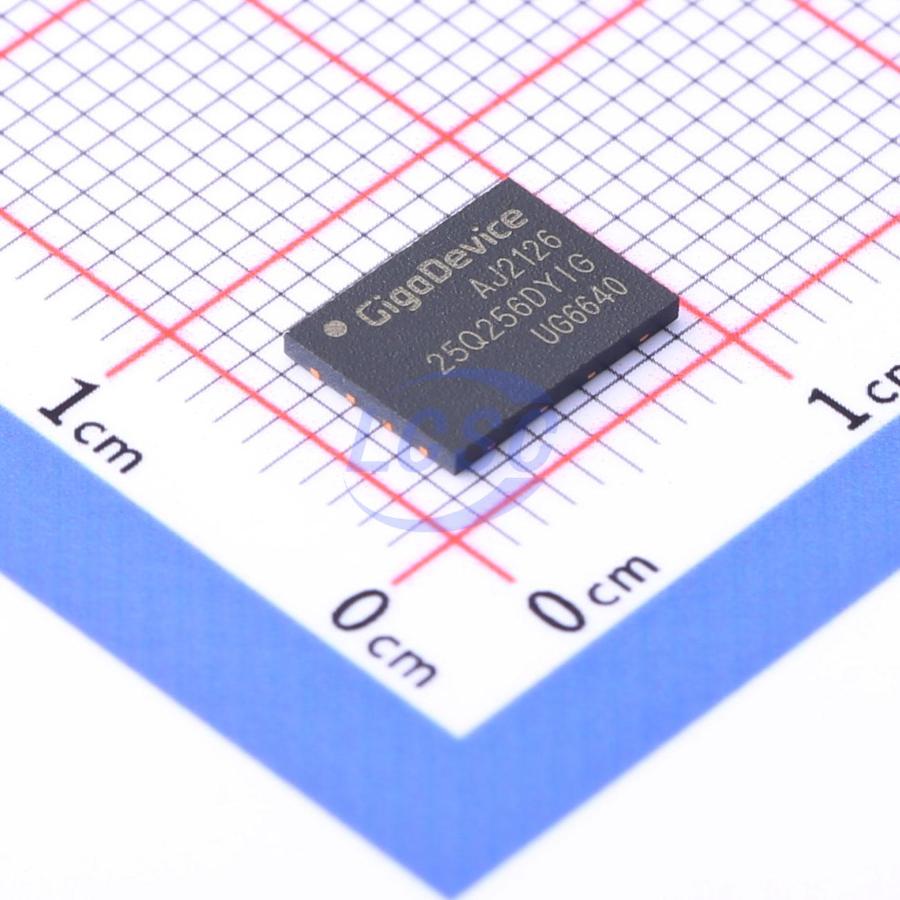

GD25Q256DYIGR
256Mbit 2.7V~3.6V 104MHz SPI WSON-8-EP(6x8) Memory RoHS
WSON-8-EP(6x8)ROHS CompliantActive
Dual and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25Q256DYIGR
- Store part #
- C2758337
- Package / case
- WSON-8-EP(6x8)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,677 in stock
#C2758337
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹920.16 | ₹920.16 |
| 10+ | ₹827.15 | ₹8,271.50 |
| 30+ | ₹771.86 | ₹23,155.80 |
| 100+ | ₹421.28 | ₹42,128.00 |
| 500+ | ₹395.47 | ₹1,97,735.00 |
| 1,000+ | ₹383.76 | ₹3,83,760.00 |
1 × ₹920.16
₹920.16
excl. GST
₹1,085.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25Q256DYIGR
₹920.16 for 1 + GST
Specifications
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 256Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 220ms
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 12uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- 3A991B1A
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.299 g
Overview
The GD25Q256D (256M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/ RESET#). The Dual I/O data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s.
Key features
- 256M-bit Serial Flash - 256 Bytes per programmable page
- Fast Program/Erase Speed
- Page Program time: 0.4ms typical
- Sector Erase time: 70ms typical
- Block Erase time: 0.16/0.22s typical
- Chip Erase time: 70s typical
- Standard, Dual, Quad SPI
- Standard SPI: SCLK, CS#, SI, SO,WP#, HOLD#/RESET#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#/RESET#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- 3 or 4-Byte Addressing Mode
- Flexible Architecture
- Uniform Sectors of 4K-Byte
- Uniform Blocks of 32/64K-Byte
- High Speed Clock Frequency
- Maximum 104MHz for fast read on 3.0 - 3.6V power supply
- Dual I/O Data transfer up to 208Mbits/s
- Quad I/O Data transfer up to 416Mbits/s
- Maximum 80MHz for fast read on 2.7 - 3.6V power supply
- Dual I/O Data transfer up to 160Mbits/s
- Quad I/O Data transfer up to 320Mbits/s
- Low Power Consumption
- 1uA typical deep power down current
- 12uA typical standby current
- Advanced Security Features
- 3 * 2048 -Byte Security Registers With OTP Locks
- 128-bit Unique ID
- Serial Flash Discoverable parameters (SFDP) register
- Software Write Protection
- Write protect all/portion of memory via software
- Top/Bottom Block protection
- Allows XIP(execute in place) Operation
- Continuous Read With 8/16/32/64-Byte Wrap
- Single Power Supply Voltage
- Full voltage range:2.7 - 3.6V
- Cycling Endurance and Data Retention
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Package Information
- SOP16 (300mil)
- WSON8 (8 * 6mm)
- TFBGA-24 (5 * 5 ball array)
