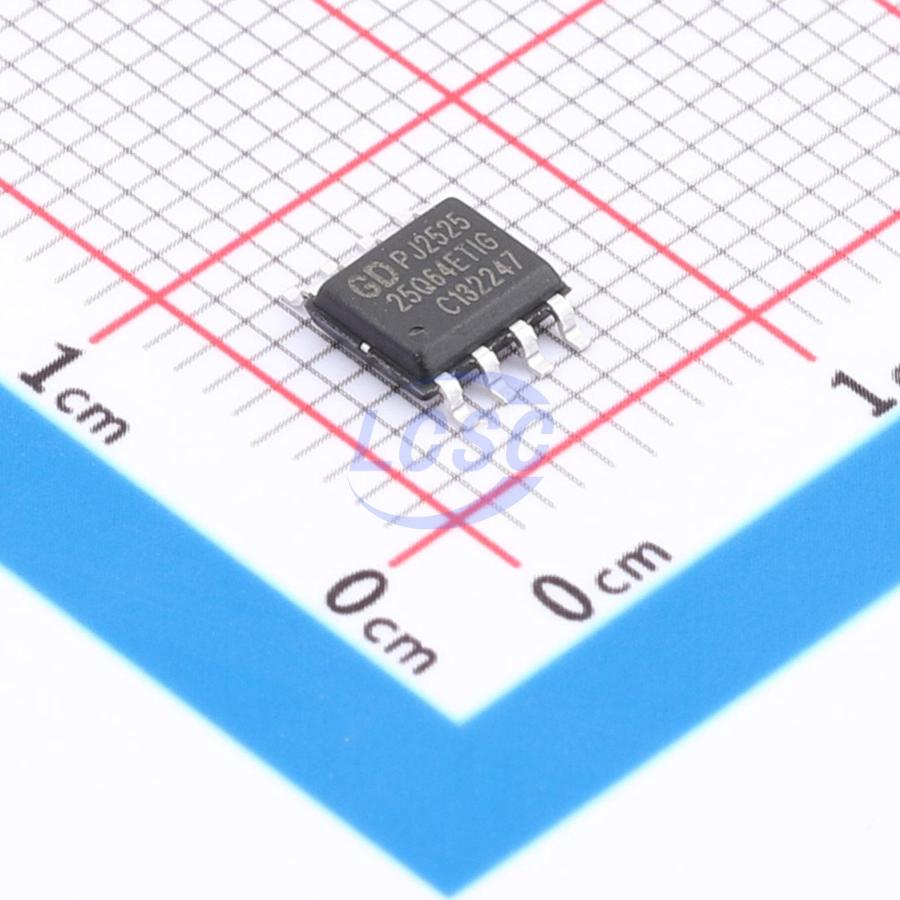

GigaDevice Semicon Beijing

GD25Q64ETIGR

64Mbit 2.7V~3.6V 133MHz SPI SOIC-8 Memory RoHS

SOIC-8ROHS3 CompliantActive

Dual and Quad Serial Flash

Manufacturer: GigaDevice Semicon Beijing
Manufacturer part #: GD25Q64ETIGR
Store part #: C2976334
Package / case: SOIC-8
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,122 in stock

#C2976334

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹171.80	₹171.80
10+	₹141.40	₹1,414.00
30+	₹124.89	₹3,746.70
100+	₹106.00	₹10,600.00
500+	₹97.74	₹48,870.00
1,000+	₹94.05	₹94,050.00

Quantity (min 1)

1 × ₹171.80

₹171.80

excl. GST

₹202.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

GD25Q64ETIGR

₹171.80 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Write enable latch;Hardware write protection;Software write protection;Absolute write protection
Memory Size: 64Mbit
Voltage - Supply: 2.7V~3.6V
Program / Erase Cycles: 100,000 cycles
Clock Frequency: 133MHz
Data Retention - TDR (Year): 20 Years
Block Erase Time(tBE): 250ms@(64KB)
Page Programming Time (Tpp): 500us
Standby Supply Current: 12uA
Interface: SPI

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 3A991B1A
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.523 g

Overview

The GD25Q64E (64M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#). The Dual I/O data is transferred with speed of 266Mbit/s, and the Quad I/O data is transferred with speed of 532Mbit/s.

Key features

64M-bit Serial Flash - 8192K-Byte - 256 Bytes per programmable page
Standard, Dual, Quad SPI - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
High Speed Clock Frequency - 133MHz for fast read - Dual I/O Data transfer up to 266Mbits/s - Quad I/O Data transfer up to 532Mbits/s
Software/Hardware Write Protection - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin - Top/Bottom Block protection
Endurance and Data Retention - Minimum 100,000 Program/Erase Cycles - 20-year data retention typical
Allows XiP (eXecute In Place) Operation - High speed Read reduce overall XiP instruction fetch time - Continuous Read with Wrap further reduce data latency to fill up SoC cache
Fast Program/Erase Speed - Page Program time: 0.5ms typical - Sector Erase time: 45ms typical - Block Erase time: 0.15s/0.25s typical - Chip Erase time: 25s typical
Flexible Architecture - Uniform Sector of 4K-Byte - Uniform Block of 32/64K-Byte
Low Power Consumption - 12μA typical standby current - 1μA typical deep power down current
Advanced Security Features - 128-bit Unique ID for each device - Serial Flash Discoverable parameters (SFDP) register - 3x1024-Byte Security Registers With OTP Locks
Single Power Supply Voltage - Full voltage range: 2.7-3.6V
