GigaDevice Semicon BeijingDatasheet (PDF)

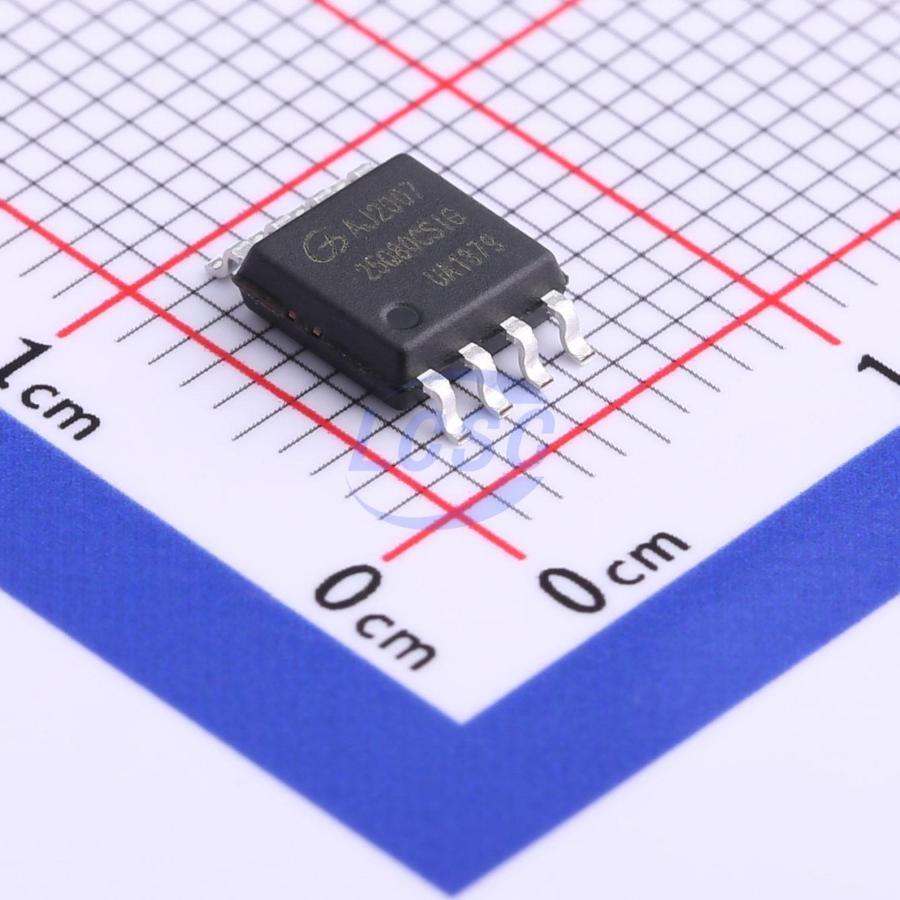

GD25Q80CSIG
8Mbit 2.7V~3.6V 120MHz SPI SOP-8-208mil Memory RoHS
SOP-8-208milROHS CompliantActive
Uniform Sector Dual and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25Q80CSIG
- Store part #
- C79073
- Package / case
- SOP-8-208mil
- Category
- Memory
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,514 in stock
#C79073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.09 | ₹117.09 |
| 10+ | ₹102.35 | ₹1,023.50 |
| 30+ | ₹94.96 | ₹2,848.80 |
| 95+ | ₹67.00 | ₹6,365.00 |
| 475+ | ₹62.67 | ₹29,768.25 |
| 1,045+ | ₹60.28 | ₹62,992.60 |
1 × ₹117.09
₹117.09
excl. GST
₹138.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 95 per tube
GD25Q80CSIG
₹117.09 for 1 + GST
Specifications
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 8Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 120MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 150ms@(32KB)
- Page Programming Time (Tpp)
- 600us
- Standby Supply Current
- 1uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 95 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.025 g
Overview
The GD25Q80C (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O data is transferred with speed of 240Mbits/s and the Quad I/O & Quad output data is transferred with speed of 480Mbits/s.
Key features
- 8M-bit Serial Flash - 1024K-byte - 256 bytes per programmable page
- Standard, Dual, Quad SPI
- Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
- Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- High Speed Clock Frequency
- 120MHz for fast read with 30PF load
- Dual I/O Data transfer up to 240Mbits/s
- Quad I/O Data transfer up to 480Mbits/s
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top or Bottom, Sector or Block selection
- Cycling endurance
- Minimum 100,000 Program/Erase Cycles
- Data retention
- 20-year data retention typical
- Program/Erase Speed
- Page Program time: 0.6ms typical
- Sector Erase time: 45ms typical
- Block Erase time: 0.15/0.25s typical
- Chip Erase time: 4s typical
- Flexible Architecture
- Sector of 4K-byte
- Block of 32/64k-byte
- Low Power Consumption
- 20mA maximum active current
- 1uA maximum power down current
- Advanced Security Features
- 128-Bit Unique ID for each device
- 4*256-Byte Security Registers With OTP Locks
- Discoverable parameters(SFDP) register
- Single Power Supply Voltage
- Full voltage range: 2.7~3.6V
