GigaDevice Semicon BeijingDatasheet (PDF)

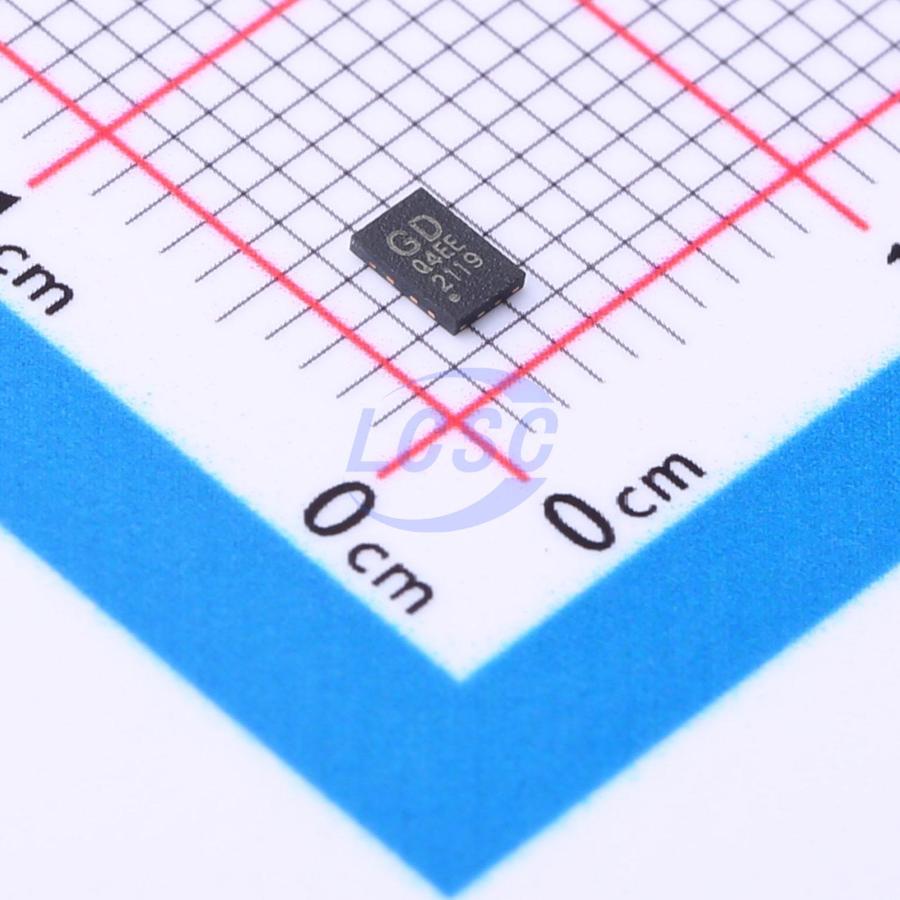

GD25Q80EEIGR
8Mbit 2.7V~3.6V 133MHz SPI USON-8-EP(2x3) Memory RoHS
USON-8-EP(2x3)ROHS CompliantActive
Dual and Quad Serial Flash
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25Q80EEIGR
- Store part #
- C2874937
- Package / case
- USON-8-EP(2x3)
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,251 in stock
#C2874937
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.68 | ₹75.68 |
| 10+ | ₹61.36 | ₹613.60 |
| 30+ | ₹53.99 | ₹1,619.70 |
| 100+ | ₹46.83 | ₹4,683.00 |
| 500+ | ₹42.51 | ₹21,255.00 |
| 1,000+ | ₹40.34 | ₹40,340.00 |
1 × ₹75.68
₹75.68
excl. GST
₹89.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25Q80EEIGR
₹75.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 8Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 11uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The GD25Q80E (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), I/O3 (HOLD#). The Dual I/O data is transferred with speed of 266Mbit/s, and the Quad I/O data is transferred with speed of 532Mbit/s.
Key features
- 8M-bit Serial Flash - 1024K-Byte - 256 Bytes per programmable page
- Standard, Dual, Quad SPI - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
- High Speed Clock Frequency - 133MHz for fast read with 30PF load - Dual I/O Data transfer up to 266Mbits/s - Quad I/O Data transfer up to 532Mbits/s
- Software/Hardware Write Protection - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin - Top/Bottom Block protection
- Endurance and Data Retention - Minimum 100,000 Program/Erase Cycles - 20-year data retention typical
- Allows XiP (eXecute in Place) Operation - High speed Read reduce overall XiP instruction fetch time - Continuous Read with Wrap further reduce data latency to fill up SoC cache
- Fast Program/Erase Speed - Page Program time: 0.4ms typical - Sector Erase time: 45ms typical - Block Erase time: 0.15s/0.25s typical - Chip Erase time: 3s typical
- Flexible Architecture - Uniform Sector of 4K-Byte - Uniform Block of 32/64K-Byte
- Low Power Consumption - 11μA typical standby current - 1μA typical deep power down current
- Advanced Security Features - 128-bit Unique ID for each device - Serial Flash Discoverable parameters (SFDP) register - 2x1024-Byte Security Registers With OTP Locks
- Single Power Supply Voltage - Full voltage range: 2.7-3.6V
- Package Information - SOP8 150mil - SOP8 208mil - USON8 (3x2mm, 0.45mm thickness) - USON8 (3x4mm) - WSON8 (6x5mm)
