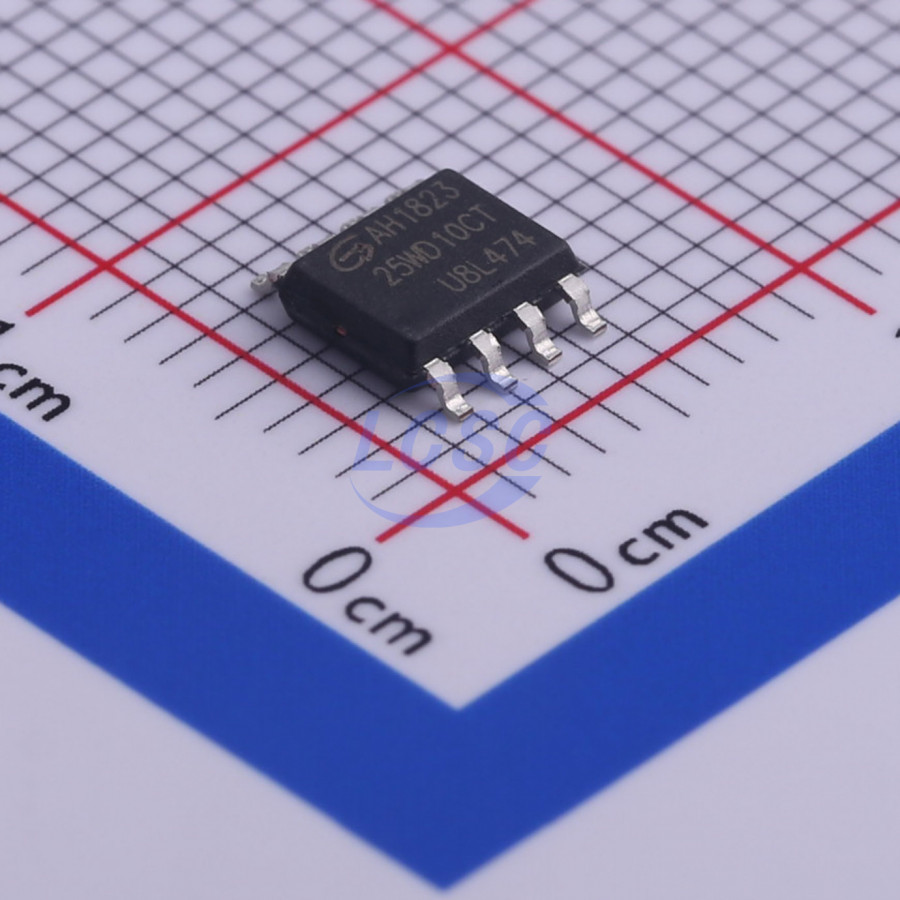

GigaDevice Semicon BeijingDatasheet (PDF)
GD25WD10CTIGR
FLASH - NOR Memory IC 1Mbit SPI 100MHz SOP-8-150mil
SOP-8-150milROHS CompliantActive
- Manufacturer
- GigaDevice Semicon Beijing
- Manufacturer part #
- GD25WD10CTIGR
- Store part #
- C395499
- Package / case
- SOP-8-150mil
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,705 in stock
#C395499
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.63 | ₹218.15 |
| 50+ | ₹34.89 | ₹1,744.50 |
| 150+ | ₹31.14 | ₹4,671.00 |
| 500+ | ₹26.46 | ₹13,230.00 |
| 3,000+ | ₹24.38 | ₹73,140.00 |
| 6,000+ | ₹23.14 | ₹1,38,840.00 |
5 × ₹43.63
₹218.15
excl. GST
₹257.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GD25WD10CTIGR
₹218.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 100MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 500ms@(32KB)
- Page Programming Time (Tpp)
- 1.6ms
- Standby Supply Current
- 0.1uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
Overview
The GD25WD10C/05C (1M/512K-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual Output: Serial Clock, Chip Select, Serial Data I/O0 (SI), O1 (SO). The Dual Output data is transferred with maximum speed of 160Mbits/s.
