VISHAYDatasheet (PDF)

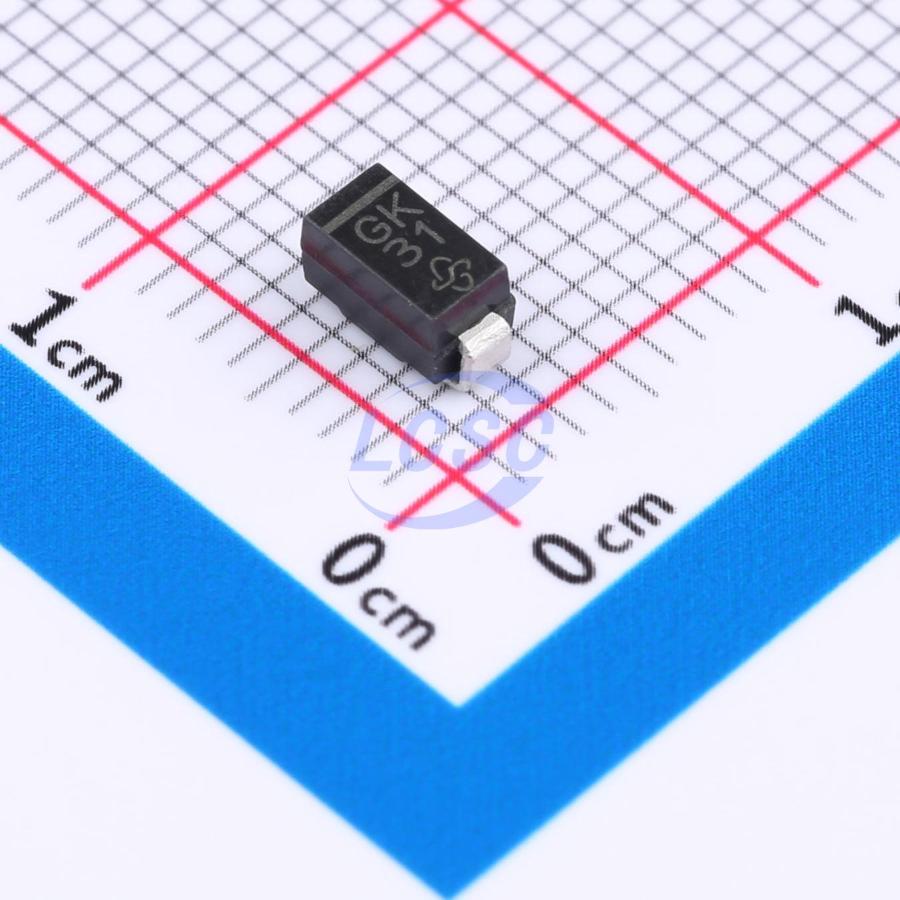

GF1KHE3/67A
Diode 1 Independent 800V 1A Surface Mount DO-214BA
DO-214BAROHS CompliantDiscontinued
DIODE STANDARD 800V 1A DO-214BA
- Manufacturer
- VISHAY
- Manufacturer part #
- GF1KHE3/67A
- Store part #
- C5377591
- Package / case
- DO-214BA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
912 in stock
#C5377591
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.08 | ₹51.08 |
| 10+ | ₹39.39 | ₹393.90 |
| 30+ | ₹34.46 | ₹1,033.80 |
| 100+ | ₹28.31 | ₹2,831.00 |
| 500+ | ₹25.44 | ₹12,720.00 |
| 1,500+ | ₹23.80 | ₹35,700.00 |
1 × ₹51.08
₹51.08
excl. GST
₹60.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
GF1KHE3/67A
₹51.08 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.2V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Ideal for automated placement RoHS
- Low forward voltage drop COMPLIANT
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 250 ℃
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GF1M#C232820onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 7,110 | ₹40.30 · 7,110 in stock | View |
 | CD214A-R12000R#C7419205BOURNS · SMA | BOURNS | SMA | 10 | ₹27.13 · 10 in stock | View |
 | GS1Y-LTP#C2987031MCC · SMA(DO-214AC) | MCC | SMA(DO-214AC) | 11,920 | ₹17.37 · 11,920 in stock | View |
 | RGF1M-HXY#C55510077HXY MOSFET · SMA | HXY MOSFET | SMA | 90 | ₹7.67 · 90 in stock | View |
 | NRVRGF1M-HXY#C55510078HXY MOSFET · SMA | HXY MOSFET | SMA | 95 | ₹18.93 · 95 in stock | View |
