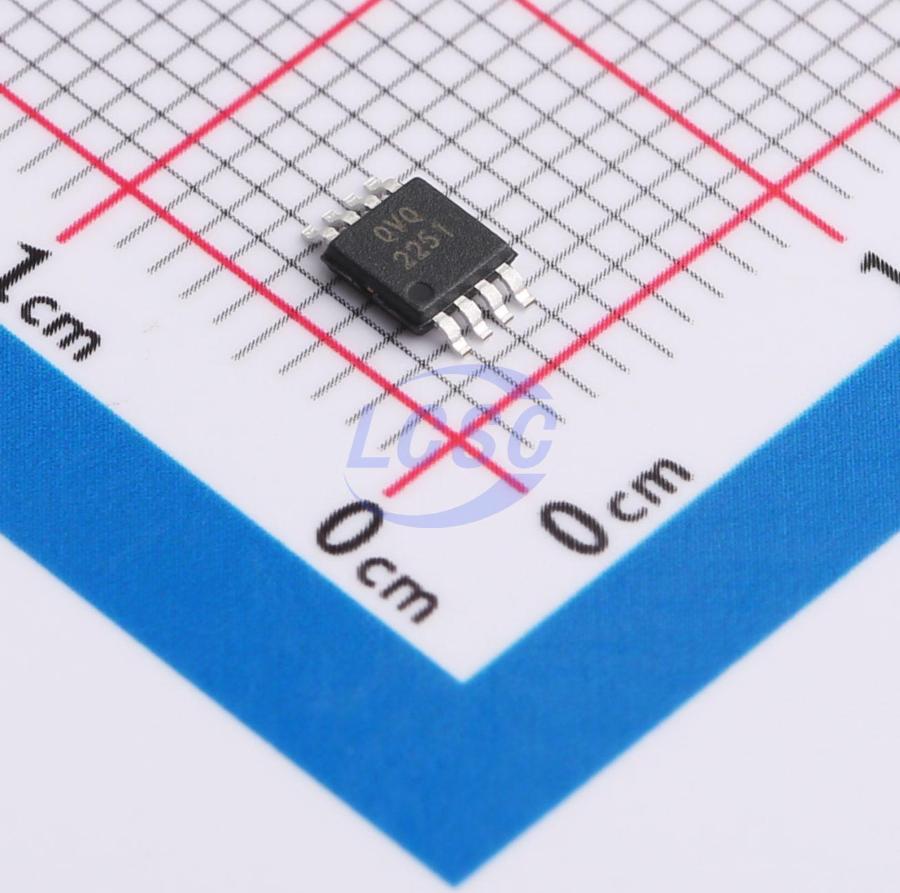

GM7A4001

The GM7A4001 device is a very high voltage-tolerant linear regulator that offers the benefits of a thermally-enhanced package, and is able to withstand continuous DC or transient input voltages of up to 100 V. The GM7A4001 device is stable with output capacitance greater than 2.2μF and any input capacitance greater than 0.47μF. Therefore, implementations of this device require minimal board space because of its miniaturized packaging (MSOP8-EP) and a potentially small output capacitor. In addition, the GM7A4001 device offers an enable pin (EN) compatible with standard CMOS logic to enable a low-current shutdown mode. The GM7A4001 device has an internal thermal shutdown and current limiting to protect the system during fault conditions. The SOP8-EP and MSOP8-EP packages have an operating temperature range of TJ = -40°C to 125°C. In addition, the GM7A4001 device is ideal for generating a low-voltage supply from intermediate voltage rails in telecom and industrial applications; not only can it supply a well-regulated voltage rail, but it can also withstand and maintain regulation during very high and fast voltage transients. These features translate to simpler and more cost-effective electrical surge-protection circuitry for a wide range of applications, including PoE, bias supply, and LED lighting.

Applications

• Microprocessors, Microcontrollers Powered by Industrial Busses with High Voltage Transients
• Industrial Automation
• Telecom Infrastructure
• Automotive
• Power over Ethernet(PoE) LED Lighting

Key features

• VIN Range 7V to 100V
• Output Voltage Tolerances of ±1.5% Output Current of 50 mA
• Low Quiescent Current 23 μA
• Quiescent Current at Shutdown 8 μA
• Dropout Voltage 2.8V at IOUT = 50 mA
• Internal Thermal Overload Protection
• Internal Short-Circuit Current Limit
• Adjustable Output Voltage form 1.2 to 90V
