GN Semic

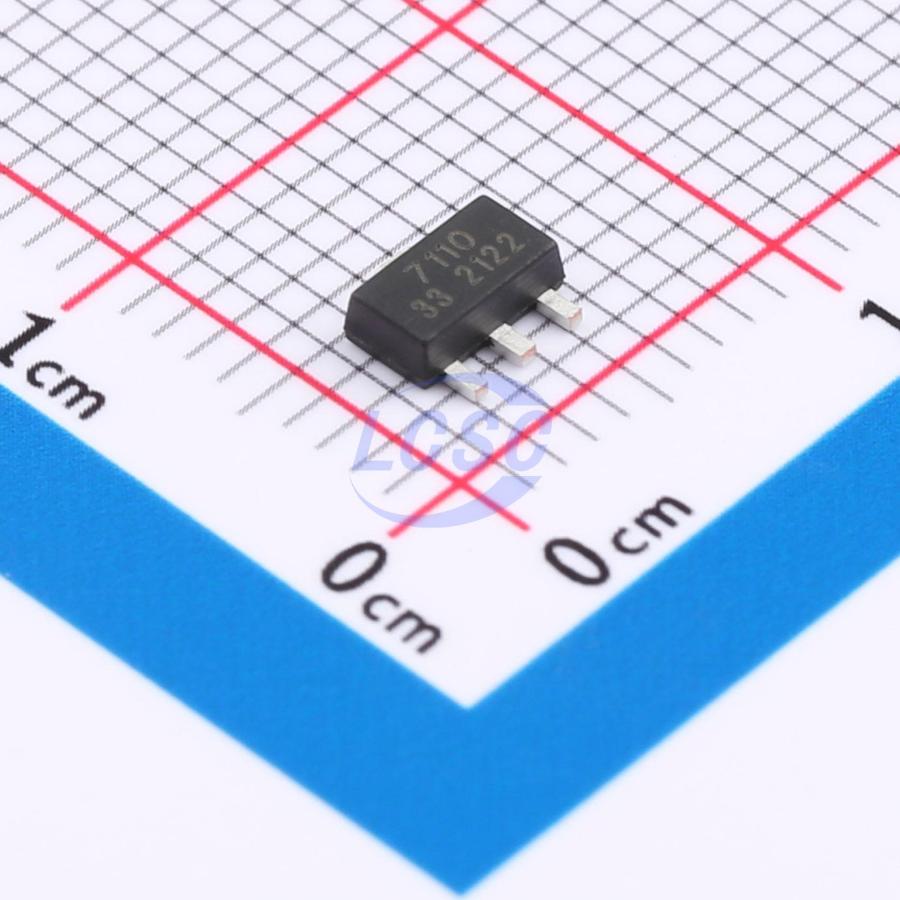

GN1117-3.3V

Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-3L

SOT-89-3LRoHSActive

Low Dropout (LDO) Positive Voltage Regulator

Manufacturer: GN Semic
Manufacturer part #: GN1117-3.3V
Store part #: C7502486
Package / case: SOT-89-3L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,310 in stock

#C7502486

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.29	₹52.90
100+	₹4.63	₹463.00
300+	₹4.31	₹1,293.00
1,000+	₹4.06	₹4,060.00
5,000+	₹3.86	₹19,300.00
10,000+	₹3.77	₹37,700.00

Quantity (min 10, multiples of 10)

10 × ₹5.29

₹52.90

excl. GST

₹62.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

GN1117-3.3V

₹52.90 for 10 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 15V
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.158 g

Overview

GN1117 is a low dropout positive voltage regulator with a maximum output current of 1A. The GN1117-ADJ is an adjustable output voltage version that requires only two external resistors to set the output voltage anywhere in the range of 1.25V to 13.8V, while the GN1117-1.2/1.5/1.8/2.5/2.85/3.3/5 provides fixed output voltages of 1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The device features built-in thermal protection and is widely used in applications requiring high-accuracy, low dropout positive voltage regulation.
