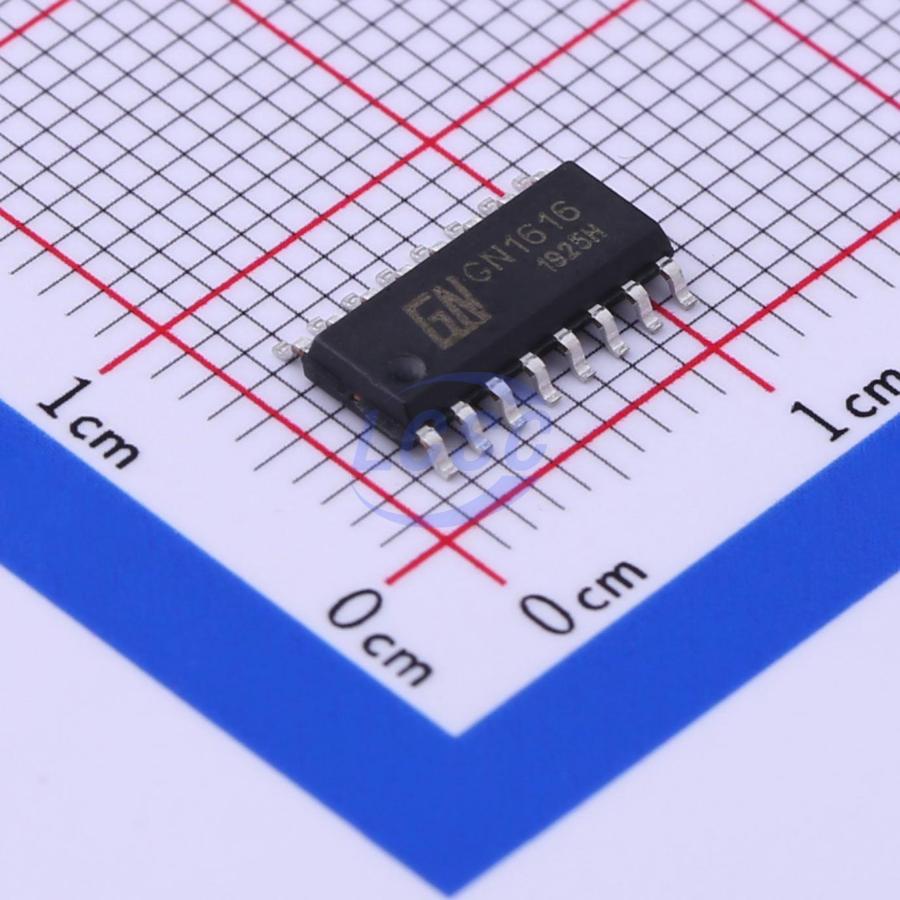

GN1616
3V~5.5V 1MHz 3-Wire Serial Interface 20mA 80mA SOP-16 Display Drivers
SOP-16RoHSActive
- Manufacturer
- GN Semic
- Manufacturer part #
- GN1616
- Store part #
- C427454
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,405 in stock
#C427454
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.01 | ₹55.05 |
| 50+ | ₹8.90 | ₹445.00 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 2,500+ | ₹6.42 | ₹16,050.00 |
| 5,000+ | ₹6.11 | ₹30,550.00 |
5 × ₹11.01
₹55.05
excl. GST
₹64.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN1616
₹55.05 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Configuration
- 7 Segment × 4 Digit
- Operating Temperature
- -40℃~+80℃
- Pd - Power Dissipation
- 400mW
- Clock Frequency
- 1MHz
- Interface
- 3-Wire Serial Interface
- Features
- PWM dimming;Internal reset function;BCD input latch function
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.271 g
Overview
GN1616 is a dedicated LED driver control circuit with an integrated MCU digital interface, data latches, and related circuitry. This product is primarily designed for display panel driving in VCR, VCD, DVD, and home theater systems.
Applications
- VCR
- VCD
- DVD
- Home theater display driver
Key features
- CMOS process
- Display mode (7-segment × 4-digit)
- Brightness adjustment circuit (8-level duty cycle adjustment)
- Serial interface (CLK, STB, DIO)
- Built-in RC oscillator (450KHz ± 5%)
- Built-in power-on reset circuit
