GN SemicDatasheet (PDF)

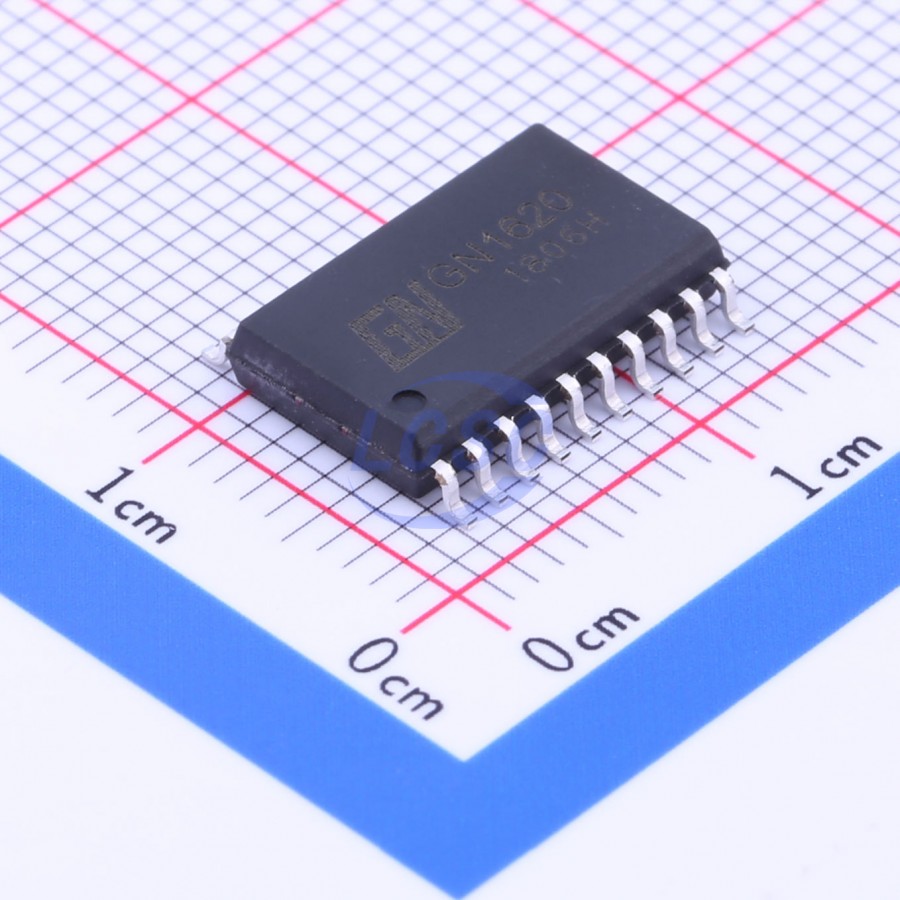

GN1620
3V~5.5V 1MHz 20mA 80mA SOP-20-300mil Display Drivers
SOP-20-300milRoHSActive
- Manufacturer
- GN Semic
- Manufacturer part #
- GN1620
- Store part #
- C265467
- Package / case
- SOP-20-300mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C265467
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.22 | ₹156.10 |
| 50+ | ₹26.04 | ₹1,302.00 |
| 150+ | ₹23.83 | ₹3,574.50 |
| 500+ | ₹21.60 | ₹10,800.00 |
| 2,000+ | ₹20.12 | ₹40,240.00 |
| 4,000+ | ₹19.24 | ₹76,960.00 |
5 × ₹31.22
₹156.10
excl. GST
₹184.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
GN1620
₹156.10 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Configuration
- 8 Segment x 6 Digit;10 Segment x 4 Digit
- Operating Temperature
- -40℃~+80℃
- Clock Frequency
- 1MHz
- Pd - Power Dissipation
- 400mW
- Features
- PWM dimming;Internal reset function;BCD input latch function
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.964 g
Overview
GN1620 is a dedicated LED driver control IC with integrated MCU digital interface, data latches, and other circuitry. This product is primarily used for display panel driving in VCR, VCD, DVD, and home theater systems.
Applications
- VCR
- VCD
- DVD
- Home Theater
Key features
- Power CMOS process
- Display modes (8-segment × 6-digit to 10-segment × 4-digit)
- Brightness adjustment circuit (8-level adjustable duty cycle)
- Serial interface (CLK, STB, DIO)
- Built-in RC oscillator (450KHz ±5%)
- Built-in power-on reset circuit
