GN SemicDatasheet (PDF)
GN1628
3V~5.5V 1MHz 3-Wire Serial Interface 20mA 80mA SOP-28-300mil Display Drivers
SOP-28-300milRoHSActive

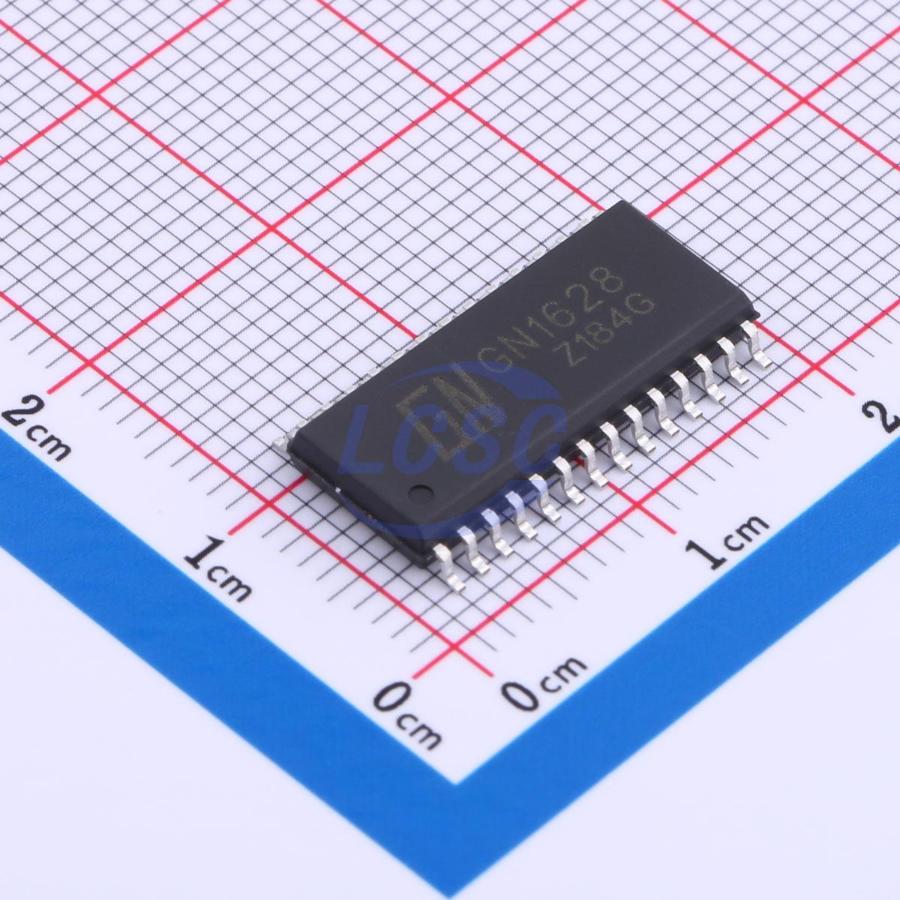

GN1628 Three-wire Serial Interface Common-cathode LED Driver Control Circuit
- Manufacturer
- GN Semic
- Manufacturer part #
- GN1628
- Store part #
- C2974370
- Package / case
- SOP-28-300mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C2974370
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.89 | ₹104.45 |
| 50+ | ₹17.68 | ₹884.00 |
| 150+ | ₹16.30 | ₹2,445.00 |
| 1,000+ | ₹13.39 | ₹13,390.00 |
| 2,000+ | ₹12.48 | ₹24,960.00 |
| 5,000+ | ₹11.93 | ₹59,650.00 |
5 × ₹20.89
₹104.45
excl. GST
₹123.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
GN1628
₹104.45 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Configuration
- 10 Segment x 7 Digit;13 Segment x 4 Digit
- Operating Temperature
- -40℃~+85℃
- Clock Frequency
- 1MHz
- Interface
- 3-Wire Serial Interface
- Features
- PWM dimming;Built-in display RAM
- Segment Drive Current
- 20mA
- Quiescent Current (Iq)
- 110uA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.22 g
Overview
GN1628 is a 3-wire serial interface, common-cathode LED driver and control IC supporting 10-segment×7-digit or 13-segment×4-digit display with 10×2 keyboard scanning. It features a 3-wire serial communication interface, RC oscillator, and 8-level adjustable brightness, suitable for a wide range of LED panel applications.
Applications
- LED display panel applications, such as microwave ovens, induction cookers, water heaters, and other home appliances.
Key features
- Display mode software-adjustable
- Built-in display RAM with 10×2 scan key matrix
- Display brightness software-adjustable
- 3-wire serial interface (CLK, STB, DIO)
- Built-in RC oscillator
Alternatives
Similar parts — check the datasheet before substituting.
