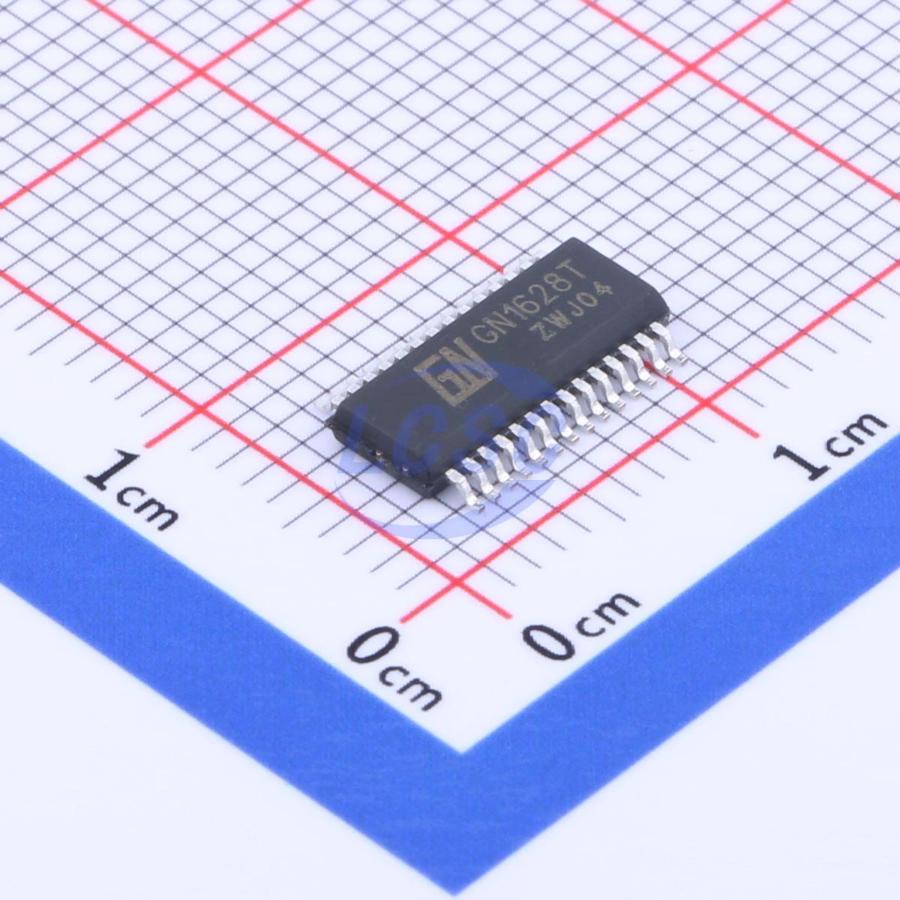

GN Semic

GN1628T

3V~5.5V 1MHz 3-Wire Serial Interface 20mA 80mA SSOP-28-150mil Display Drivers

SSOP-28-150milRoHSActive

GN1628 Three-wire Serial Interface Common-cathode LED Driver Control Circuit

Manufacturer: GN Semic
Manufacturer part #: GN1628T
Store part #: C2758329
Package / case: SSOP-28-150mil
Category: Display Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,165 in stock

#C2758329

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.77	₹103.85
50+	₹17.73	₹886.50
150+	₹16.21	₹2,431.50
500+	₹15.07	₹7,535.00
2,500+	₹14.16	₹35,400.00
4,000+	₹13.69	₹54,760.00

Quantity (min 5, multiples of 5)

5 × ₹20.77

₹103.85

excl. GST

₹122.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GN1628T

₹103.85 for 5 + GST

Specifications

Voltage - Supply: 3V~5.5V
Configuration: 10 Segment x 7 Digit;13 Segment x 4 Digit
Operating Temperature: -40℃~+85℃
Clock Frequency: 1MHz
Interface: 3-Wire Serial Interface
Features: Built-in display RAM;PWM dimming
Segment Drive Current: 20mA
Quiescent Current (Iq): 110uA
Digit Drive Current: 80mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.29 g

Overview

GN1628 is a 3-wire serial interface, common-cathode LED driver and control circuit supporting 10-segment 7-digit or 13-segment 4-digit display with 10×2 keyboard scanning. It features a 3-wire serial communication interface, RC oscillator, and 8-level brightness adjustment, making it widely applicable in various LED panel applications.

Applications

LED display panel applications, e.g. microwave ovens, induction cookers, water heaters and other home appliances

Key features

Display mode software-adjustable
Built-in display RAM with 10×2 scan key matrix, display brightness software-adjustable
3-wire serial interface (CLK, STB, DIO)
Built-in RC oscillator
