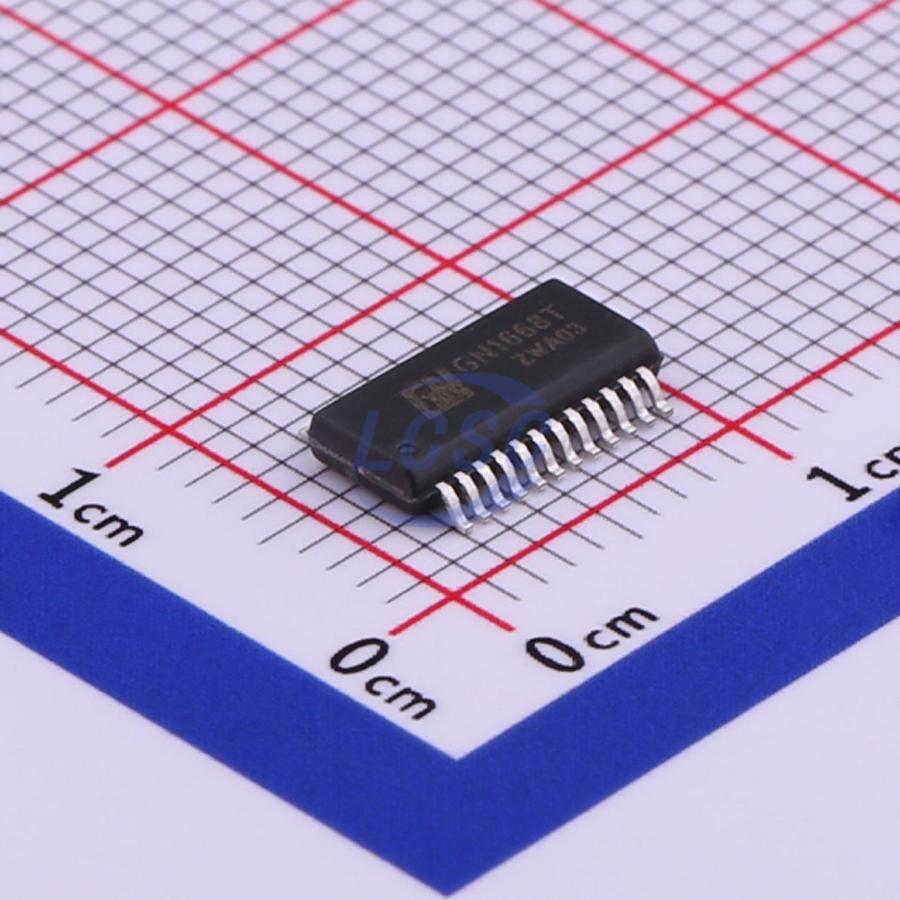

GN1668T
3V~5.5V 1MHz 3-Wire Serial Interface 20mA 80mA SSOP-24-150mil Display Drivers
SSOP-24-150milRoHSActive
GN1668 Three-wire Serial Interface Common-cathode LED Driver Control Circuit
- Manufacturer
- GN Semic
- Manufacturer part #
- GN1668T
- Store part #
- C526231
- Package / case
- SSOP-24-150mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,140 in stock
#C526231
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.39 | ₹101.95 |
| 50+ | ₹17.00 | ₹850.00 |
| 150+ | ₹15.56 | ₹2,334.00 |
| 500+ | ₹14.10 | ₹7,050.00 |
| 2,500+ | ₹13.14 | ₹32,850.00 |
| 4,000+ | ₹12.57 | ₹50,280.00 |
5 × ₹20.39
₹101.95
excl. GST
₹120.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GN1668T
₹101.95 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Configuration
- 10 Segment x 7 Digit;13 Segment x 4 Digit
- Operating Temperature
- -40℃~+85℃
- Clock Frequency
- 1MHz
- Interface
- 3-Wire Serial Interface
- Features
- Built-in display RAM;PWM dimming
- Segment Drive Current
- 20mA
- Quiescent Current (Iq)
- 130uA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
GN1668 is a dedicated LED driver control IC featuring a 3-wire serial interface for common-cathode 10-segment 7-digit or 13-segment 4-digit display with 70×2-bit keyboard scanning. It integrates a 3-wire serial communication interface and RC oscillator, supports 8-level brightness adjustment, and is widely applicable to various LED panel applications.
Applications
- LED display panel applications, e.g. microwave ovens, induction cookers, water heaters and other home appliances
Key features
- Display mode software-adjustable built-in
- Display RAM 70×2 scan key matrix
- Display brightness software-adjustable
- 3-wire serial interface (CLK, STB, DIO)
- Built-in RC oscillator
