GN SemicDatasheet (PDF)

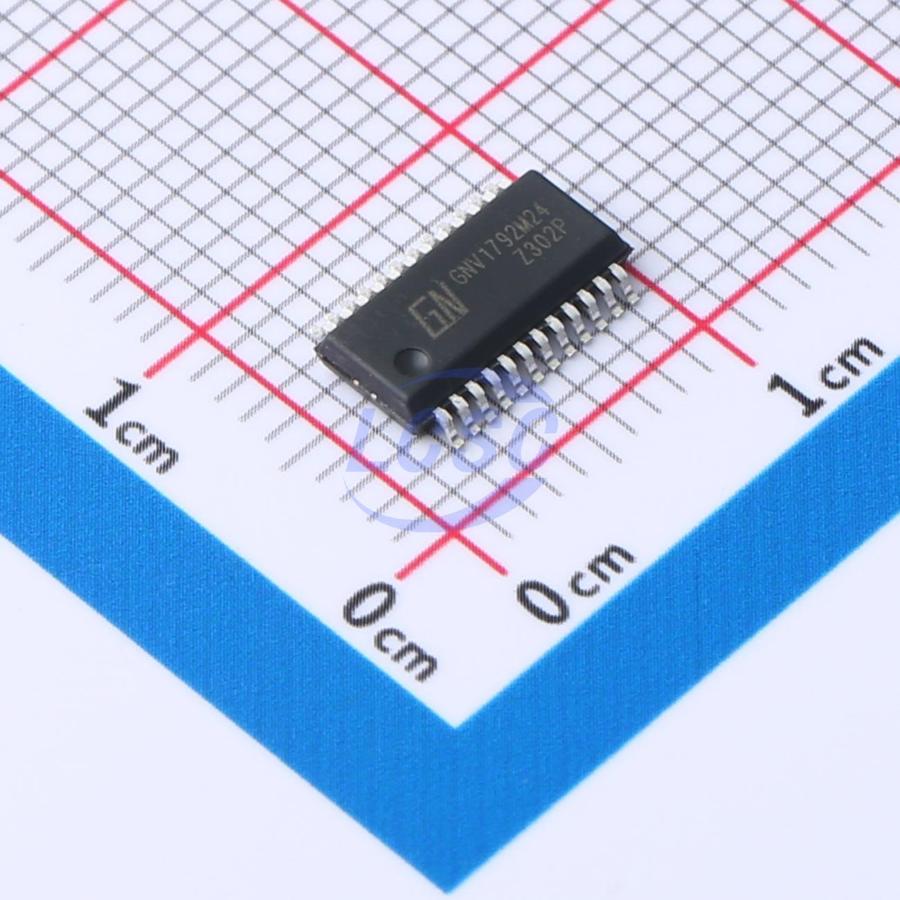

GNV1792M24
2.5V~5.5V 36 Segment 2-Wire Serial Interface 7.5uA SSOP-24 Display Drivers
SSOP-24RoHSActive
Universal single-chip LCD driver circuit
- Manufacturer
- GN Semic
- Manufacturer part #
- GNV1792M24
- Store part #
- C19173001
- Package / case
- SSOP-24
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,505 in stock
#C19173001
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.25 | ₹121.25 |
| 50+ | ₹21.35 | ₹1,067.50 |
| 150+ | ₹20.11 | ₹3,016.50 |
| 500+ | ₹18.56 | ₹9,280.00 |
| 2,500+ | ₹17.87 | ₹44,675.00 |
| 4,000+ | ₹17.46 | ₹69,840.00 |
5 × ₹24.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GNV1792M24
₹121.25 for 5 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Frequency
- 80Hz
- Operating Temperature
- -40℃~+85℃
- Display Configurations(bit)
- 36x4 bit
- Pd - Power Dissipation
- 640mW
- Display Configurations(Segment)
- 36 Segment
- Interface
- 2-Wire Serial Interface
- Features
- Built-in oscillator
- Quiescent Current (Iq)
- 5uA
- Current - Supply
- 7.5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
GNV1792S is a general-purpose single-chip LCD driver capable of driving 144 segments for character or graphic display. Compatible with most microprocessors/microcontrollers, it communicates via a two-wire bus. Primarily designed for driving segmented LCD panels.
Applications
- Drives segment LCD displays
Key features
- Operating voltage: 2.5V~5.5V
- LCD drive outputs: 4 Common lines, 36 Segment lines
- Built-in display RAM: 36×4 = 144 bits
- 2-wire bus interface (SCL, SDA)
- Built-in oscillator circuit
- Built-in LCD drive circuit: 1/4 duty, 1/2 or 1/3 bias selectable
- Built-in Buffer AMP
- Low power consumption design
- Built-in wait mode
- Built-in power-on reset circuit
- Built-in blinking function
