GN SemicDatasheet (PDF)

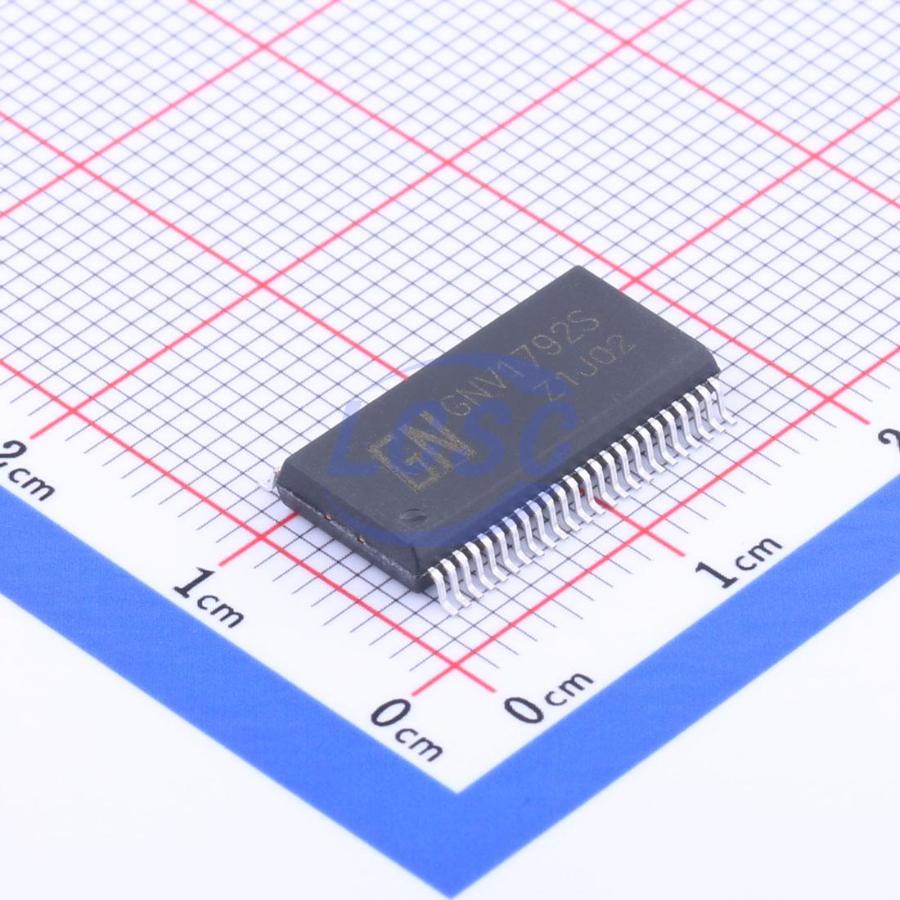

GNV1792S
2.5V~5.5V 36 Segment 2-Wire Serial Interface 7.5uA SSOP-48-300mil Display Drivers
SSOP-48-300milRoHSActive
Driver for segmented LCD display controller
- Manufacturer
- GN Semic
- Manufacturer part #
- GNV1792S
- Store part #
- C2758333
- Package / case
- SSOP-48-300mil
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,578 in stock
#C2758333
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.68 | ₹59.68 |
| 10+ | ₹50.15 | ₹501.50 |
| 30+ | ₹45.29 | ₹1,358.70 |
| 90+ | ₹41.69 | ₹3,752.10 |
| 510+ | ₹38.30 | ₹19,533.00 |
| 990+ | ₹36.61 | ₹36,243.90 |
1 × ₹59.68
₹59.68
excl. GST
₹70.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 30 per tube
GNV1792S
₹59.68 for 1 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Frequency
- 80Hz
- Operating Temperature
- -40℃~+85℃
- Display Configurations(bit)
- 36x4 bit
- Pd - Power Dissipation
- 640mW
- Display Configurations(Segment)
- 36 Segment
- Interface
- 2-Wire Serial Interface
- Features
- Built-in oscillator
- Quiescent Current (Iq)
- 5uA
- Current - Supply
- 7.5uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.103 g
Overview
GNV1792S is a general-purpose single-chip LCD driver capable of driving 144 segments for character or graphic displays. Compatible with most microprocessors/microcontrollers, it communicates via a two-wire bus interface. Primarily designed for driving segmented LCD panels.
Applications
- Drives segment LCD displays
Key features
- Operating voltage: 2.5V~5.5V
- LCD drive outputs: 4 Common lines, 36 Segment lines
- Built-in display RAM: 36×4 = 144 bits
- 2-wire bus interface (SCL, SDA)
- Built-in oscillator circuit
- Built-in LCD driver circuit: 1/4 duty, selectable 1/2 or 1/3 bias
- Built-in Buffer AMP
- Low power consumption design
- Built-in standby mode
- Built-in power-on reset circuit
- Built-in blink function
- Package: SSOP48
