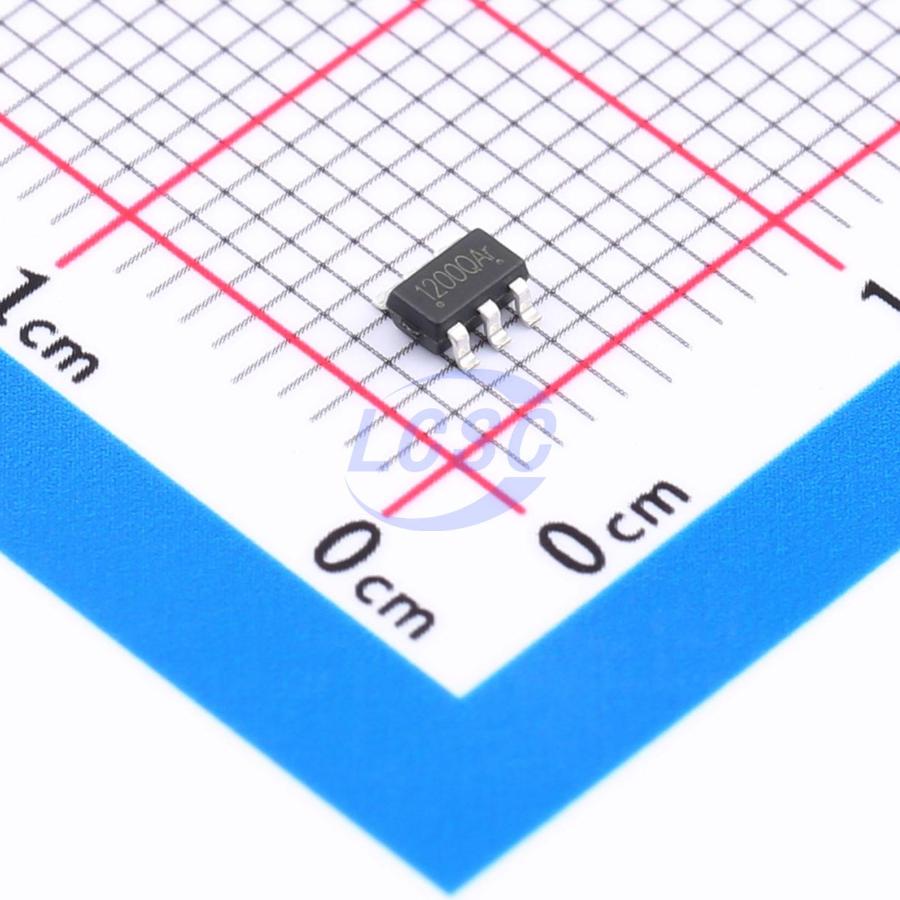

GP1200QLGT
Converter Offline Flyback Topology 120kHz SOT-23-6
SOT-23-6ROHS CompliantActive
Primary-side feedback constant current and constant voltage control chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP1200QLGT
- Store part #
- C19626937
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C19626937
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.41 | ₹87.05 |
| 50+ | ₹13.77 | ₹688.50 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.57 | ₹5,285.00 |
| 3,000+ | ₹9.49 | ₹28,470.00 |
| 6,000+ | ₹8.93 | ₹53,580.00 |
5 × ₹17.41
₹87.05
excl. GST
₹102.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GP1200QLGT
₹87.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Voltage - Supply
- 35V
- Features
- Quasi-resonant/valley switching;Cable compensation;Leading edge blanking;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection;Soft-start
- Topology
- Flyback
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
GP1200Q is a highly integrated PSR driver control IC for isolated adapters and chargers, with an external MOSFET. GP1200Q operates in QR conduction mode, offering high efficiency and good EMI characteristics. Its standby power consumption is less than 70mW, easily meeting the European Energy Star Level 6 efficiency standard. The output line loss compensation is adjustable, enabling a well-regulated output voltage profile across no-load to full-load conditions. GP1200Q integrates output short-circuit protection, overvoltage protection, cycle-by-cycle overcurrent protection, soft-start, Vdd pin overvoltage/undervoltage protection and clamping, and Gate pin clamping protection for the secondary-stage MOSFET. GP1200Q is available in a SOT23-6 package.
Applications
- Battery chargers
- Power adapters
- LED lighting drivers
Key features
- Standby power consumption below 70mW
- ±5% constant current/constant voltage accuracy with built-in line loss compensation
- Output short-circuit protection
- Cycle-by-cycle overcurrent protection
- Leading-edge blanking to prevent OCP false triggering
- Pin open-circuit protection
- Soft-start function
- Output overvoltage protection
- Supply (Vdd pin) overvoltage protection and clamping
- Supply (Vdd pin) undervoltage protection
