HaloChipDatasheet (PDF)

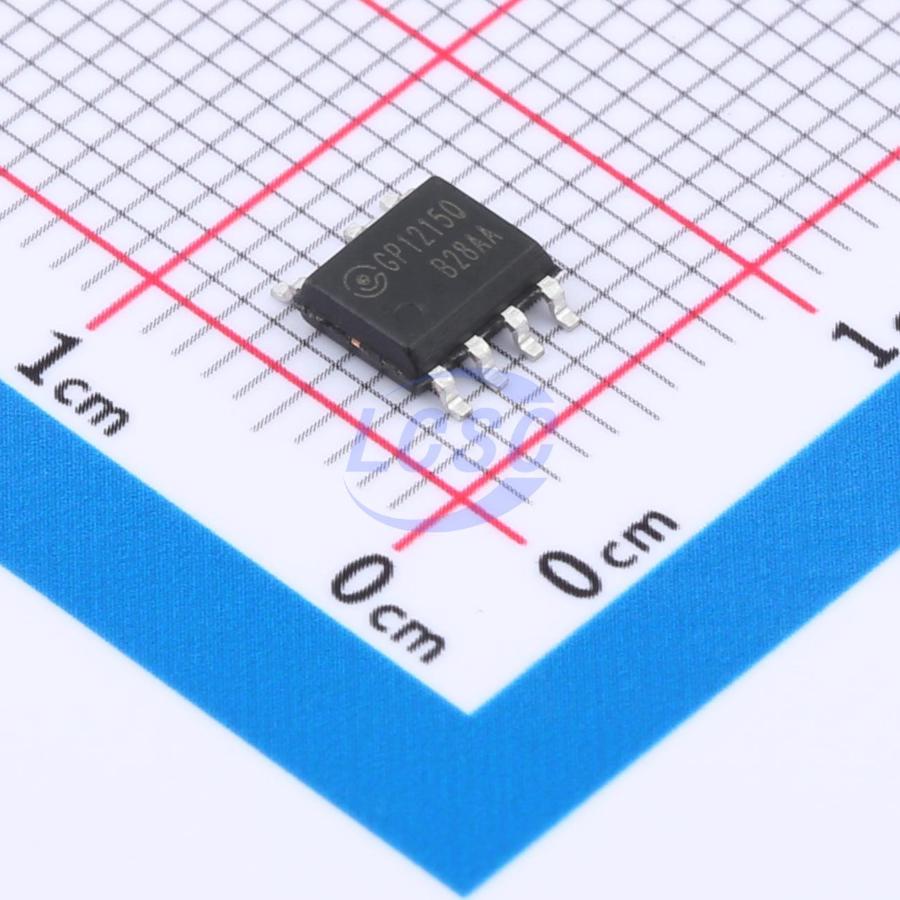

GP1215QTGT
Converter Offline Flyback Topology 120kHz SOP-7
SOP-7ROHS CompliantActive
Primary-side feedback constant current and constant voltage control chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP1215QTGT
- Store part #
- C19626932
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C19626932
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.19 | ₹195.95 |
| 50+ | ₹30.77 | ₹1,538.50 |
| 150+ | ₹27.16 | ₹4,074.00 |
| 500+ | ₹22.66 | ₹11,330.00 |
| 2,500+ | ₹20.65 | ₹51,625.00 |
| 4,000+ | ₹19.46 | ₹77,840.00 |
5 × ₹39.19
₹195.95
excl. GST
₹231.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP1215QTGT
₹195.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 120kHz
- Voltage - Supply
- 9.5V~33V
- Voltage - Breakdown
- 650V
- Features
- Quasi-resonant/valley switching;Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Short Circuit Protection;Over Voltage Protection;Under Voltage Protection
- Topology
- Flyback
- Working Mode
- QR
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
GP1210Q/GP1215Q/GP1224Q is a highly integrated PSR built-in MOSFET controller IC for isolated adapters and chargers. Operating in QR conduction mode, it offers high efficiency and excellent EMI characteristics. Standby power consumption is below 70mW, easily meeting the European Energy Star Level 6 efficiency standard. The output line loss compensation is adjustable, enabling a well-regulated output voltage profile across no-load to full-load conditions. Integrated protections include output short circuit, overvoltage protection, cycle-by-cycle overcurrent protection, soft start, and Vdd pin overvoltage/undervoltage protection with clamping.
Applications
- Battery chargers
- Power adapters
- LED lighting drivers
Key features
- Integrated 650V MOSFET / COOLMOSFET
- Standby power consumption below 70mW
- ±5% CC/CV accuracy with built-in line loss compensation
- Output short-circuit protection
- Cycle-by-cycle overcurrent protection
- Leading-edge blanking to prevent OCP false triggering
- Pin open-circuit protection
- Soft-start function
- Output overvoltage protection
- VDD overvoltage protection and clamping
- VDD undervoltage protection
