GUQIAO MicroelectronicsDatasheet (PDF)

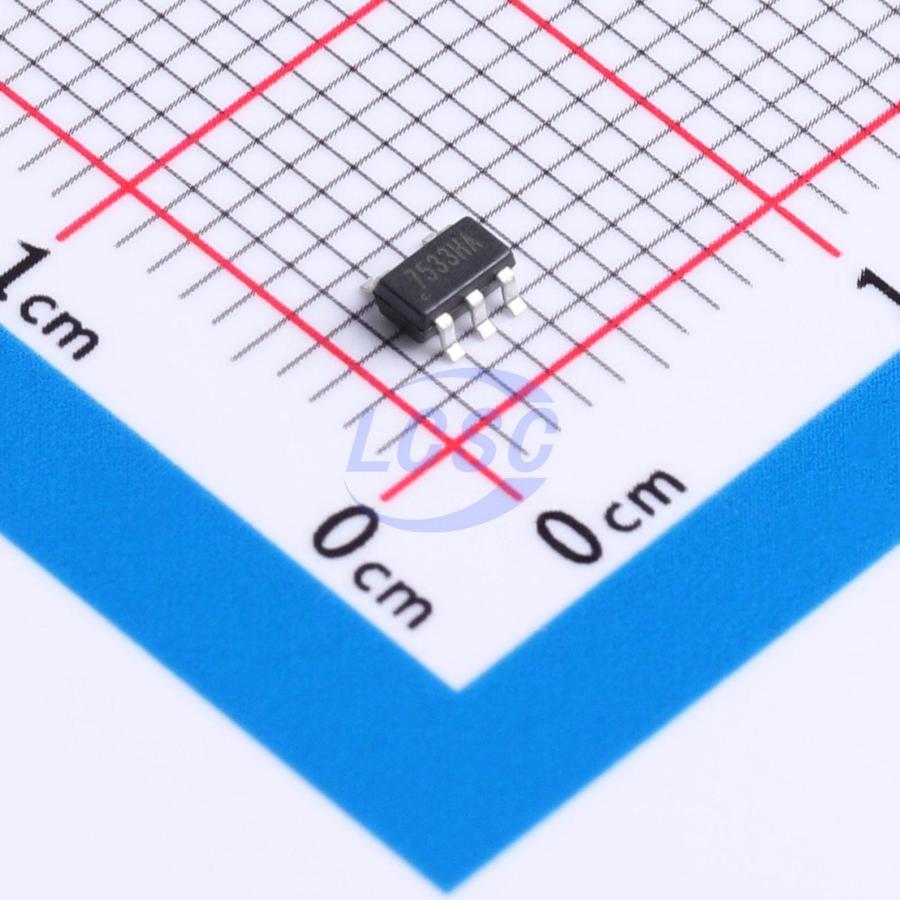

GP2001-33HT5R
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
- Manufacturer
- GUQIAO Microelectronics
- Manufacturer part #
- GP2001-33HT5R
- Store part #
- C48997237
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C48997237
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.73 | ₹67.30 |
| 100+ | ₹5.32 | ₹532.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹6.73
₹67.30
excl. GST
₹79.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GP2001-33HT5R
₹67.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 150mA
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The GP2001 series is a family of high-voltage, high-accuracy, low quiescent current, low dropout, low-power linear regulators. Designed primarily using CMOS technology, they can withstand input voltages up to 45V. These devices offer multiple fixed output voltages and can also be used with external components to achieve adjustable output voltages from 1.8V to 5.0V. The series is available in TO92, SOT89-3A, SOT89-3B, SOT23-3, SON763, and SOT23-5 packages.
Applications
- Electricity meters
- Multi-cell battery-powered devices
- Communication equipment
- Smoke detectors
- Audio/video equipment
- LED drivers
Key features
- Low quiescent current: 2μA
- Low dropout: 600mV @ 100mA
- Low temperature coefficient
- Fixed output voltage: 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 3.6V, 4.0V, 4.4V, 5.0V
- Thermal shutdown protection
- High ripple rejection: 65dB @ 100Hz
- High input voltage (up to 45V)
- Output current (up to 150mA at VIN - VOUT = 2V)
- Output voltage accuracy: ±2% @ 25°C
- Available in TO92/SOT89-3A/SOT89-3B/SOT23-3/SON763/SOT23-5 packages
