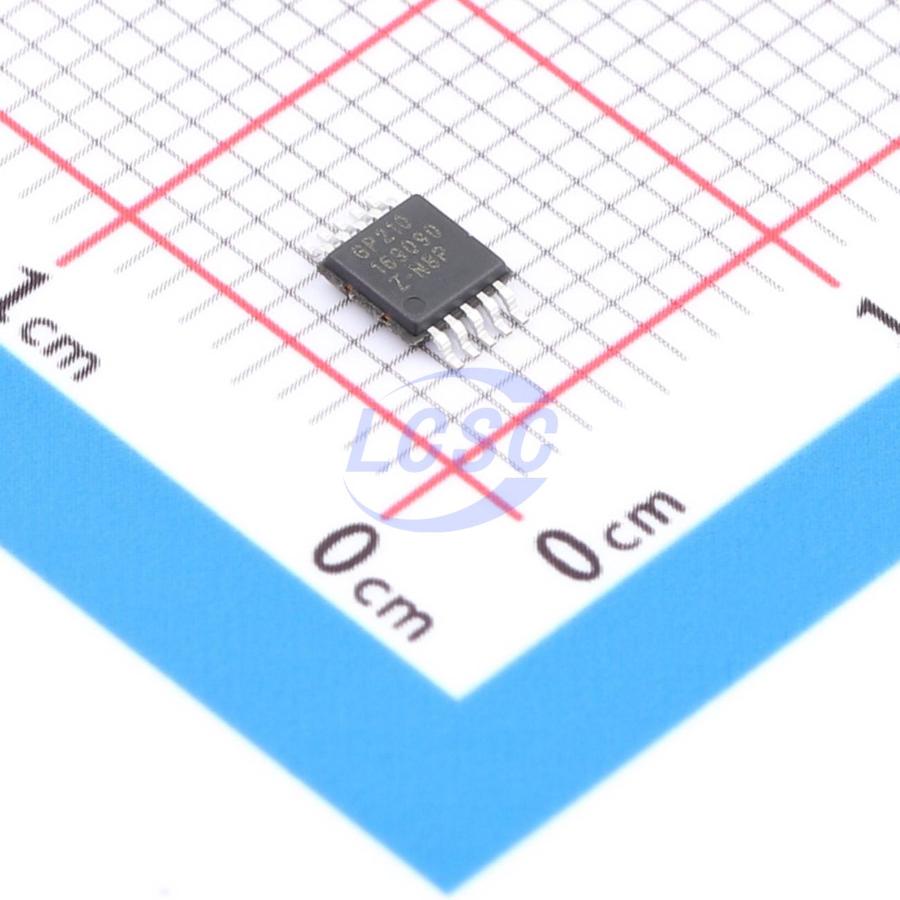

GP210-MH

GP210 is a DAC with a PWM digital interface, capable of linearly converting PWM voltage to a 0–20mA or 4–20mA analog current output. The output range can be configured via an external resistor Rset. Initial analog output error is less than 0.1%, and output current linearity error is less than 0.05% (with two-point calibration). This product is designed for sensors, instrumentation, and industrial control applications with demanding performance requirements, addressing diverse output needs.

Applications

• Three-wire 4-20mA transmitter
• PLC
• Sensor
• Industrial control

Key features

• Converts 0%–100% duty cycle PWM input to a linearly scaled 0–25mA analog current output @ SET = 1K.
• Input PWM duty cycle range: 0%–100%.
• Input PWM frequency range: 50Hz to 5KHz.
• Internal LDO output: 5V (load capability 5mA; recommended for powering isolators via emitter follower or other applications).
• Input PWM high-level voltage range: 2.7V–5.5V.
• Output error: ±0.1% FSR.
• Built-in over-temperature protection and over-current protection.
• Output current linearity error: 0.05% (two-point calibration required).
• Supply voltage range: 8V–36V.
• Package type: MSOP10-EPAD.
• Power consumption: < 1.2mA.
• Start-up time: < 1ms.
• Operating temperature range: -40°C to 105°C.
