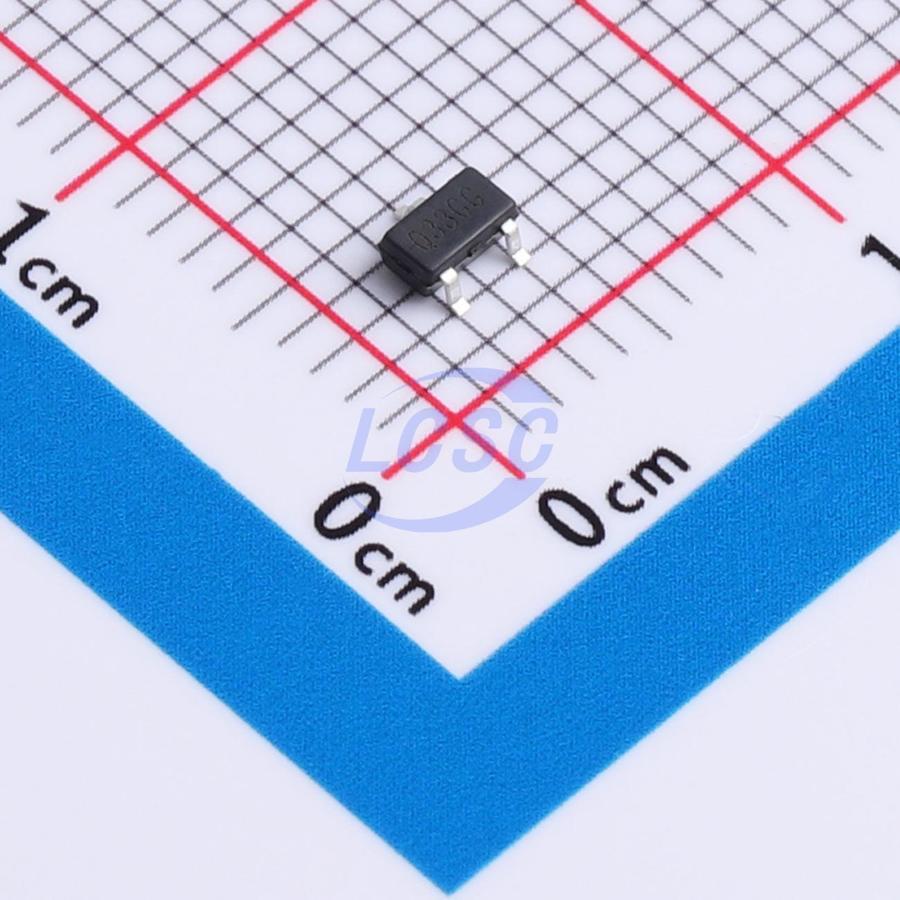

GUQIAO MicroelectronicsDatasheet (PDF)
GP2101-33T3R
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
- Manufacturer
- GUQIAO Microelectronics
- Manufacturer part #
- GP2101-33T3R
- Store part #
- C48997261
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C48997261
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.23 | ₹62.30 |
| 100+ | ₹4.92 | ₹492.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 3,000+ | ₹3.78 | ₹11,340.00 |
| 6,000+ | ₹3.40 | ₹20,400.00 |
| 9,000+ | ₹3.20 | ₹28,800.00 |
10 × ₹6.23
₹62.30
excl. GST
₹73.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GP2101-33T3R
₹62.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown;Enable control;Output discharge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
This device is a high PSRR, low-noise, ultra-low quiescent current LDO regulator capable of delivering up to 300mA output current. It is specifically designed to meet the demands of IoT, wearable, and battery-powered applications, featuring low noise, high PSRR, ultra-low quiescent current, and excellent line/load transient response. Through innovative design techniques, the device achieves industry-leading noise performance without requiring a noise bypass capacitor. The device offers fixed output voltages ranging from 1.1V to 4.5V in 50mV steps. The product family is available in SOT23-3, SOT23-5, and DFN4-1×1 packages.
Applications
- Smartphones and tablets
- Portable medical devices
- Smart meters and field transmitters
- IP cameras
- Digital cameras and audio equipment
- Portable and battery-powered devices
- RF, PLL, VCO, and clock power supplies
- Drones
Key features
- Input voltage range: 2V to 5.5V
- Output voltage range: 1.1V to 4.5V
- Output voltage accuracy: ±2%
- Ultra-low shutdown current: 0.1μA (typical)
- Ultra-low quiescent current: 1.5μA (typical)
- Low dropout: 80mV@100mA
- High PSRR: 60dB@1KHz (typical)
- Overcurrent protection
- Short-circuit protection
- Thermal shutdown protection
- Operating junction temperature range: -40℃ to 125℃
- SOT23-5/SOT23-3/DFN4-1×1 package
