HaloChipDatasheet (PDF)

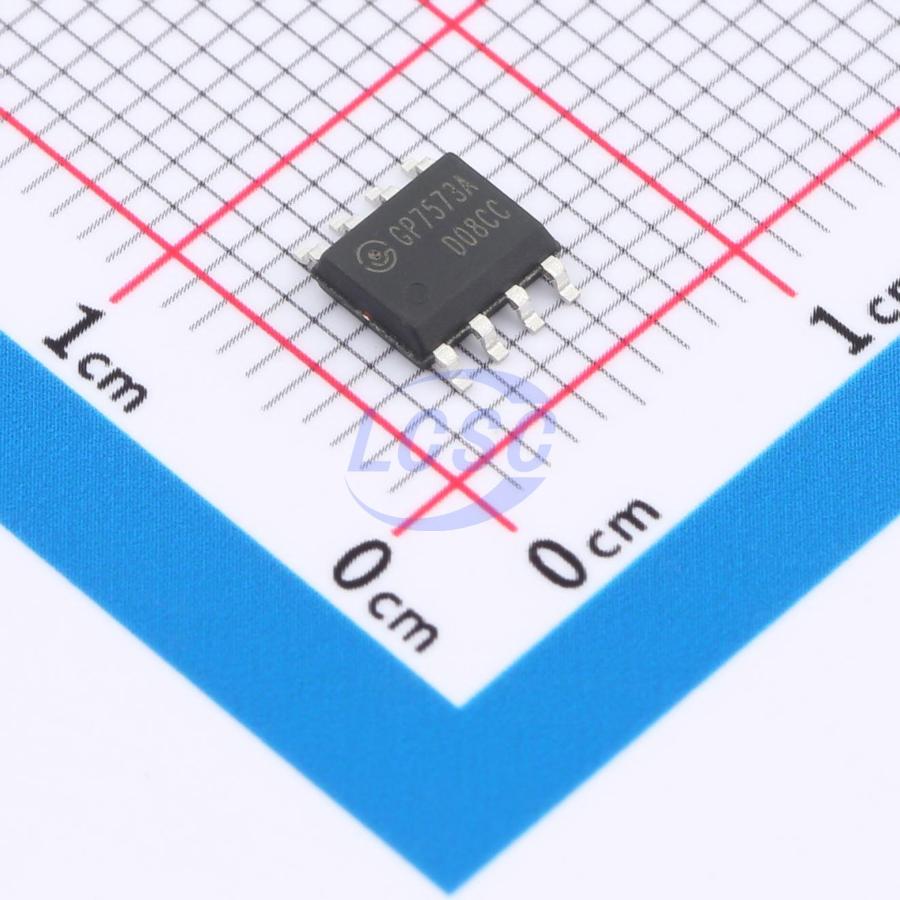

GP7573A
1 SOP-8 Power Distribution Switches, Load Drivers
SOP-8RoHSActive
- Manufacturer
- HaloChip
- Manufacturer part #
- GP7573A
- Store part #
- C49420373
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C49420373
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.93 | ₹54.65 |
| 50+ | ₹8.64 | ₹432.00 |
| 150+ | ₹7.50 | ₹1,125.00 |
| 500+ | ₹6.64 | ₹3,320.00 |
| 2,500+ | ₹5.95 | ₹14,875.00 |
| 4,000+ | ₹5.61 | ₹22,440.00 |
5 × ₹10.93
₹54.65
excl. GST
₹64.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP7573A
₹54.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Under-voltage lockout
- number of channels
- 1
- RDS(on)
- 20mΩ
- Operating Voltage
- 4.7V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.181 g
Overview
High-performance synchronous rectification power switch designed to replace secondary-side Schottky diodes in flyback converters, integrating an ultra-low on-resistance power MOSFET to improve system efficiency. Supports both "floating ground" and "common ground" synchronous rectification topologies, as well as DCM and QR operating modes. Built-in high-voltage VCC supply module eliminates the need for a VCC auxiliary winding, reducing system cost. Integrated VCC UVLO protection. SOP8 package.
Applications
- Flyback converter
- Adapter
- Charger
- Other power supplies
Key features
- Flyback topology secondary-side synchronous rectification power switch
- Supports both "floating ground" and "common ground" synchronous rectification topologies
- Supports DCM and QR operating modes
- Low quiescent current
- Built-in high-voltage supply module, no auxiliary winding required
- Undervoltage protection
