HaloChipDatasheet (PDF)

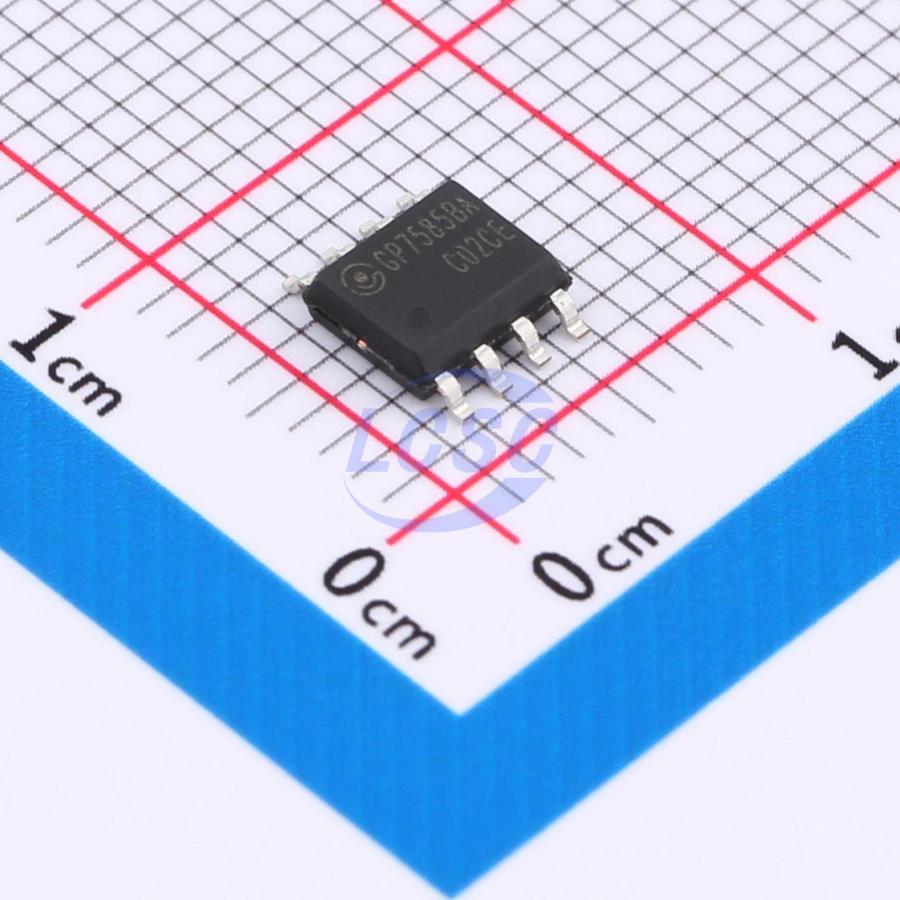

GP7585BA
Converter Offline Flyback Topology SOP-8
SOP-8ROHS CompliantActive
High-performance secondary-side synchronous rectification power switch
- Manufacturer
- HaloChip
- Manufacturer part #
- GP7585BA
- Store part #
- C39836403
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,345 in stock
#C39836403
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.28 | ₹51.40 |
| 50+ | ₹8.12 | ₹406.00 |
| 150+ | ₹7.05 | ₹1,057.50 |
| 500+ | ₹6.24 | ₹3,120.00 |
| 2,500+ | ₹5.60 | ₹14,000.00 |
| 5,000+ | ₹5.28 | ₹26,400.00 |
5 × ₹10.28
₹51.40
excl. GST
₹60.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP7585BA
₹51.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Breakdown
- 45V
- Voltage - Supply
- 5V
- Features
- Under Voltage Protection
- Topology
- Flyback
- Working Mode
- DCM;QR;CCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
GP7585BA is a high-performance synchronous rectification power switch designed to replace the secondary-side Schottky diode in flyback converters, featuring an ultra-low on-resistance power MOSFET to improve system efficiency. GP7585BA supports both "floating ground" and "common ground" synchronous rectification architectures, as well as DCM, QR, and CCM operating modes. GP7585BA integrates a built-in VCC high-voltage supply module, eliminating the need for a VCC auxiliary winding and reducing system cost. GP7585BA also incorporates an internal VCC UVLO protection function.
Applications
- Flyback converter
- Adapter
- Charger
- Other power supplies
Key features
- Flyback topology secondary-side synchronous rectification power switch
- Supports both "floating ground" and "common ground" synchronous rectification topologies
- Supports DCM, QR, CCM operating modes
- Low quiescent current
- Built-in high-voltage supply module, no auxiliary winding required
- Undervoltage protection
