HaloChipDatasheet (PDF)

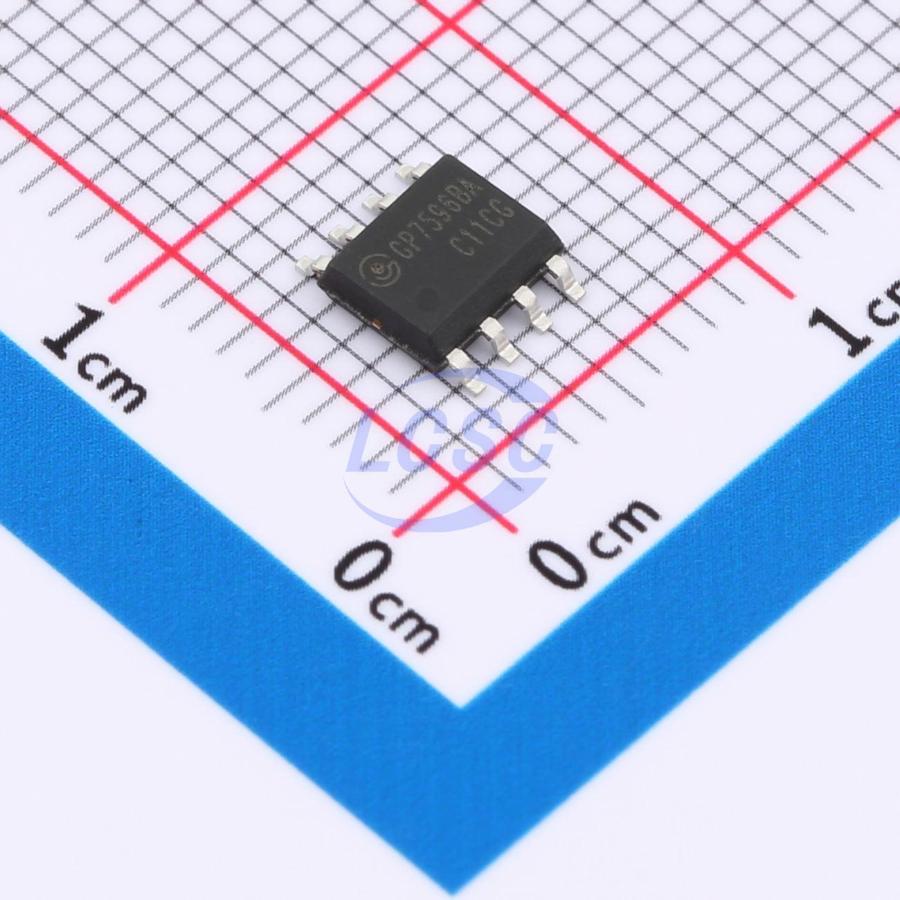

GP7596BA
Converter Offline Flyback Topology SOP-8
SOP-8ROHS CompliantActive
High-performance secondary-side synchronous rectification power switch
- Manufacturer
- HaloChip
- Manufacturer part #
- GP7596BA
- Store part #
- C22434956
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C22434956
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.99 | ₹99.95 |
| 50+ | ₹15.70 | ₹785.00 |
| 150+ | ₹13.87 | ₹2,080.50 |
| 500+ | ₹11.56 | ₹5,780.00 |
| 2,500+ | ₹10.54 | ₹26,350.00 |
| 4,000+ | ₹9.94 | ₹39,760.00 |
5 × ₹19.99
₹99.95
excl. GST
₹117.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP7596BA
₹99.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Breakdown
- 60V
- Voltage - Supply
- 4.7V~54V
- Features
- Under Voltage Protection
- Topology
- Flyback
- Working Mode
- DCM;QR;CCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.39 g
Overview
GP7596XX is a high-performance synchronous rectification power switch designed to replace the secondary-side Schottky diode in flyback converters. It integrates an ultra-low on-resistance power MOSFET to improve system efficiency. The device supports both "floating ground" and "common ground" synchronous rectification topologies, as well as DCM, QR, and CCM operating modes. An integrated high-voltage VCC supply module eliminates the need for a VCC auxiliary winding, reducing system cost. The device also features built-in VCC undervoltage protection and is available in an SOP8 package.
Applications
- Flyback converter
- Adapter
- Charger
- Other power supplies, etc.
Key features
- Flyback topology secondary-side synchronous rectification power switch
- Supports both "floating ground" and "common ground" synchronous rectification topologies
- Supports DCM, QR, and CCM operating modes
- Low quiescent current
- Built-in high-voltage supply module, no auxiliary winding required
- Under-voltage protection
