GP8242J
Converter Offline Flyback Topology 40kHz~70kHz SOP-8
SOP-8ROHS CompliantActive
High-performance PSR CV/CC power switch
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8242J
- Store part #
- C19626936
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,445 in stock
#C19626936
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.36 | ₹40.36 |
| 10+ | ₹35.46 | ₹354.60 |
| 30+ | ₹33.31 | ₹999.30 |
| 100+ | ₹30.76 | ₹3,076.00 |
| 500+ | ₹28.19 | ₹14,095.00 |
| 1,000+ | ₹27.56 | ₹27,560.00 |
1 × ₹40.36
₹40.36
excl. GST
₹47.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel

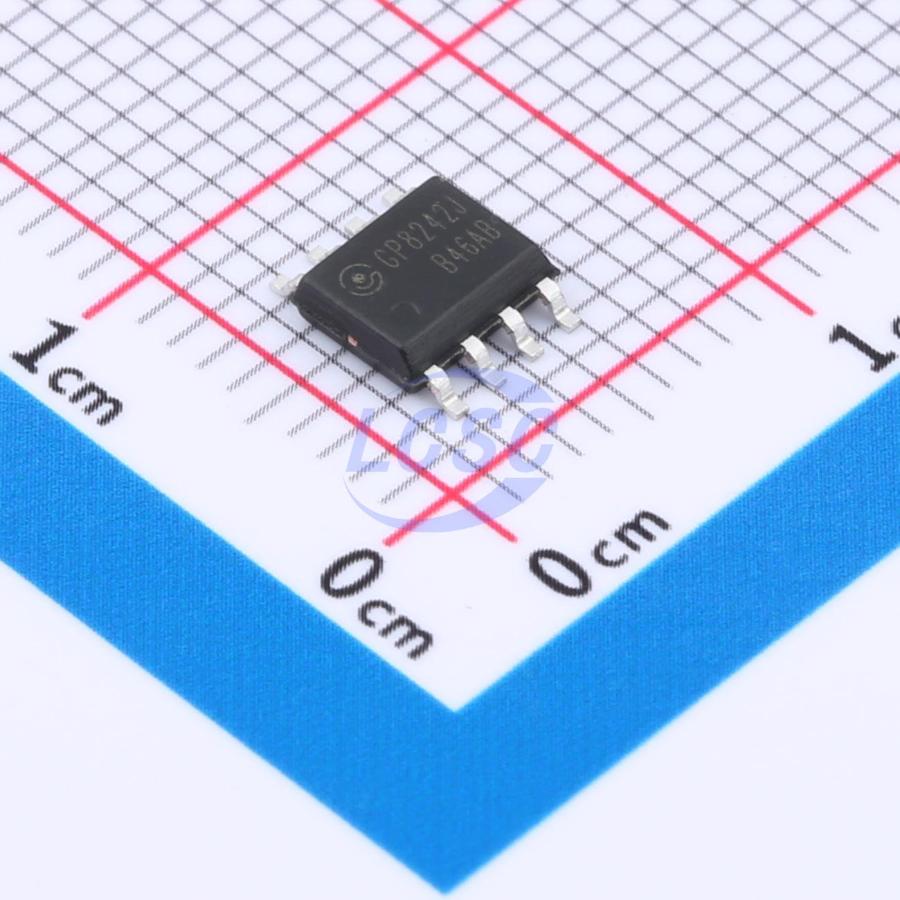

GP8242J
₹40.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 40kHz~70kHz
- Voltage - Supply
- 9.5V~25V
- Voltage - Breakdown
- 650V
- Features
- Constant Current Mode (CC);Constant Voltage (CV);Soft-start;Over Voltage Protection;Under Voltage Protection;Short Circuit Protection;Over Current Protection;Overtemperature protection (OTP)
- Topology
- Flyback
- Working Mode
- PFM Modulation;PWM Modulation
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.254 g
Overview
GP8242X is a high-performance AC/DC power control switch designed for chargers and adapters. The IC employs primary-side feedback and control, achieving 4% CC/CV regulation accuracy without optocouplers or TL431. PFM control is used in constant current operation, while a composite PFM/PWM multi-mode control is applied in constant voltage operation. In addition, GP8242X integrates output cable compensation, which helps reduce switching losses, simplify system EMI design, and optimize output characteristics. GP8242X provides soft-start, audio noise suppression, and multiple protection features, including auto-restart, cycle-by-cycle current limiting, VCC OVP/UVP clamp protection, pin open/short-circuit protection, and gate clamp protection. Available in SOP8 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Drop-in replacement for linear power supplies and RCC converters, and other auxiliary power supplies
Key features
- Primary-side sensing and feedback, no optocoupler or TL431 required
- 4% CC/CV accuracy under standard input conditions
- Output line loss compensation
- Ultra-low standby power consumption: 70mW
- Audio noise cancellation
- Leading-edge blanking (LEB)
- Cycle-by-cycle current limiting
- VCC OVP/UVLO protection & clamp
- Pin open-circuit protection
