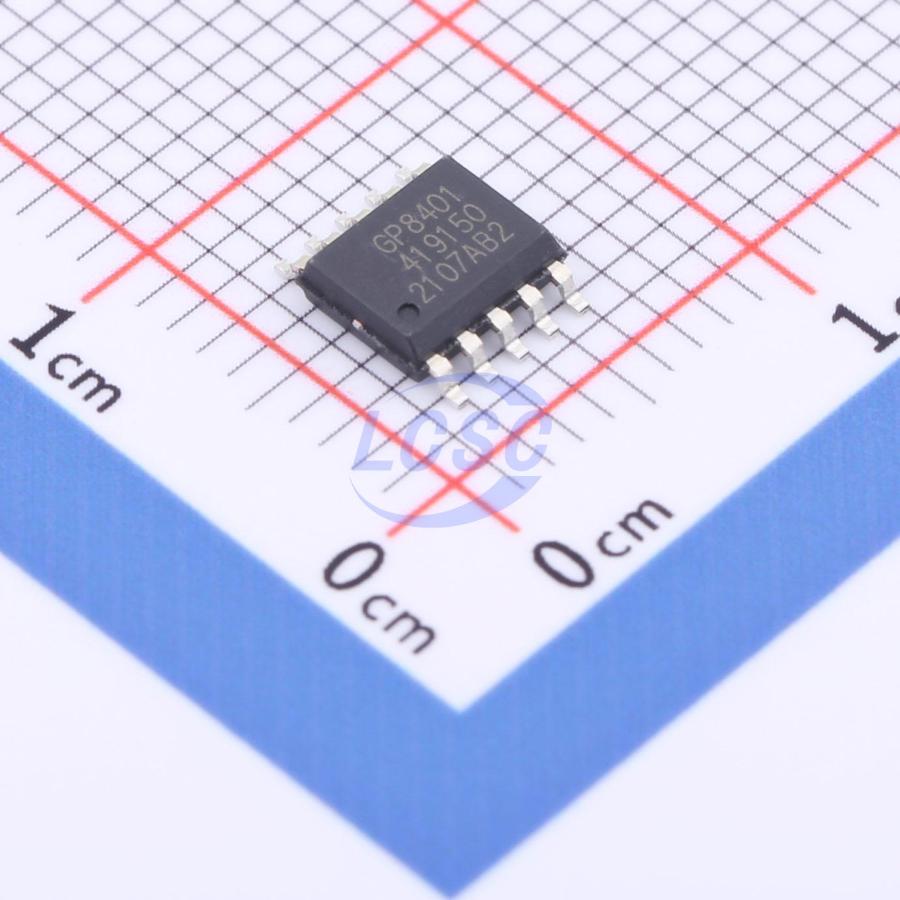

GP8401-TC50-EW

2 9V~36V ESSOP-10-150mil ADCs/DACs - Special Purpose RoHS

ESSOP-10-150milROHS CompliantActive

Dual 0%-100% PWM to 0-5V/0-10V

Manufacturer: Guestgood
Manufacturer part #: GP8401-TC50-EW
Store part #: C2856291
Package / case: ESSOP-10-150mil
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,211 in stock

#C2856291

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹238.71	₹238.71
10+	₹199.79	₹1,997.90
30+	₹175.35	₹5,260.50
100+	₹150.49	₹15,049.00
500+	₹142.71	₹71,355.00
1,000+	₹137.95	₹1,37,950.00

Quantity (min 1)

1 × ₹238.71

₹238.71

excl. GST

₹281.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8401-TC50-EW

₹238.71 for 1 + GST

Specifications

Number of Channels: 2
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 9V~36V
Quiescent Current: 2000uA
Resolution (Bits): -;-

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

GP8401 is a PWM-to-analog signal converter, functionally equivalent to a DAC with PWM input and analog output. The device linearly converts two PWM signals with duty cycles ranging from 0% to 100% into two analog voltage outputs of 0–5V or 0–10V, with output voltage accuracy better than 0.2%.

Applications

General-purpose signal conversion
Motor speed control, LED dimming
Inverters, power supplies
Industrial analog signal isolation

Key features

Converts two PWM input signals with 0%–100% duty cycle to two analog voltage outputs of 0–5V or 0–10V via linear conversion.
Input signal range: 0%–100%
Input PWM signal frequency range: 50Hz ~ 50kHz
Input PWM signal high level: 2.7V ~ 5.5V
Output voltage error: typical 0.2%
Output voltage linearity error: typical 0.1%
Output short-circuit protection: enters protection mode and halts output when output pin is shorted to GND.
Supply voltage: 9V ~ 36V
Power consumption: typical 2mA
Startup time: <2ms
Operating temperature: -40℃ ~ 85℃
