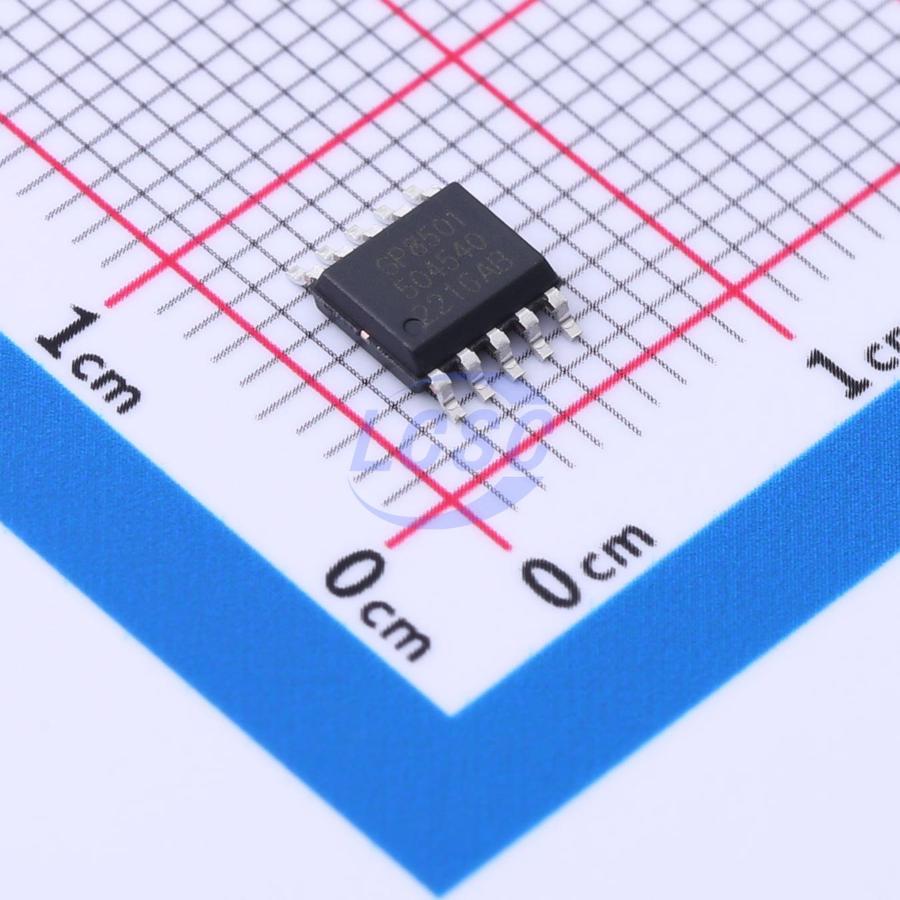

GP8501-TC50-EW

Built-in reference source 2 2.7V~5.5V ESSOP-10 ADCs/DACs - Special Purpose RoHS

ESSOP-10ROHS CompliantActive

Dual 0%-100% PWM to 0-2.5V/0-VCC

Manufacturer: Guestgood
Manufacturer part #: GP8501-TC50-EW
Store part #: C5240410
Package / case: ESSOP-10
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,003 in stock

#C5240410

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹259.47	₹259.47
10+	₹220.98	₹2,209.80
30+	₹196.76	₹5,902.80
100+	₹165.41	₹16,541.00
500+	₹154.17	₹77,085.00
1,000+	₹149.41	₹1,49,410.00

Quantity (min 1)

1 × ₹259.47

₹259.47

excl. GST

₹306.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8501-TC50-EW

₹259.47 for 1 + GST

Specifications

Features: Built-in reference source
Number of Channels: 2
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 2.7V~5.5V
Quiescent Current: 2000uA
Resolution (Bits): -;50kHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.22 g

Overview

GP8501 is a PWM-to-analog signal converter, functioning as a DAC with PWM signal input and analog signal output. The device linearly converts two PWM input signals with duty cycles ranging from 0% to 100% into two analog voltage outputs of 0–2.5V or 0–VCC, with output voltage accuracy better than 0.2%.

Applications

General-purpose signal conversion
Motor speed control
LED dimming
Inverter
Power supply
Industrial analog signal isolation

Key features

Converts two PWM input signals (0%–100% duty cycle) to two analog voltage outputs (0–2.5V or 0–VCC) with linear conversion.
Input signal range: 0%–100%.
Input PWM signal frequency range: 50Hz to 50KHz (below 50Hz, please contact Keyiwei).
Input PWM signal high level: 2.7V–5.5V.
Output voltage error: 0.2% (typical).
Output voltage linearity error: 0.1% (typical).
Output short-circuit protection: when the output pin is shorted to ground, the chip enters protection mode and halts output.
Supply voltage: 2.7V–5.5V.
Power consumption: <2mA (typical).
Startup time: <2ms.
Operating temperature: -40℃ to 85℃.
