HaloChipDatasheet (PDF)

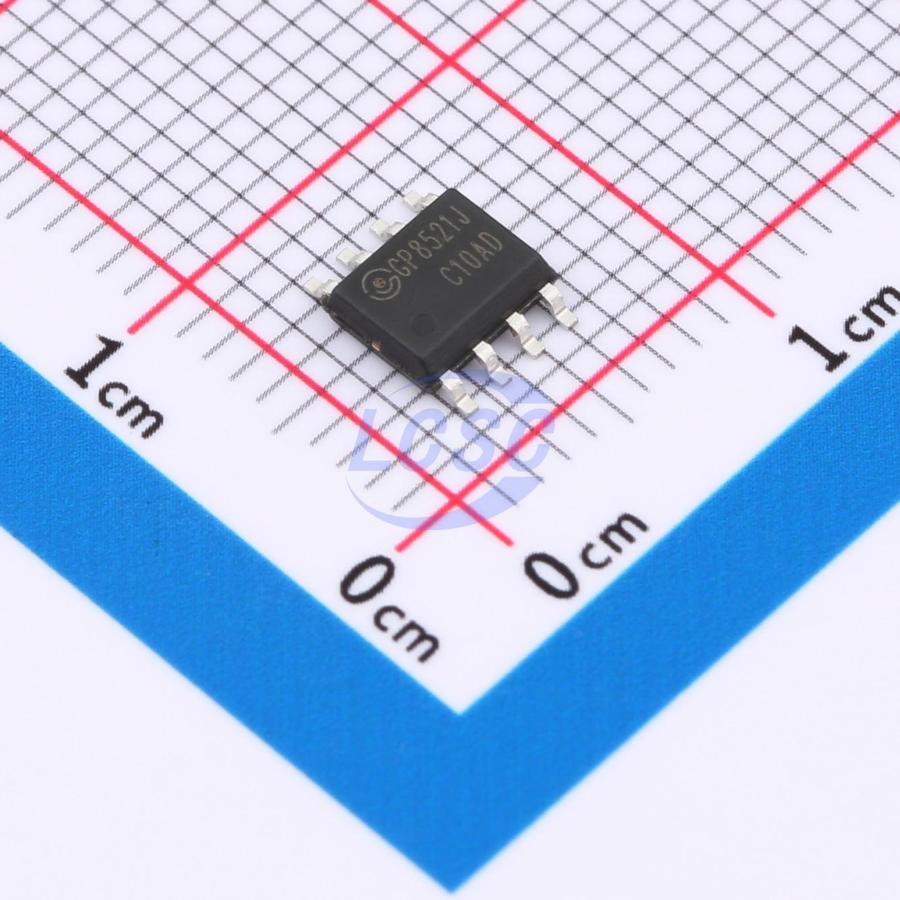

GP8521J
Converter Offline Flyback Topology 60kHz~70kHz SOP-8
SOP-8ROHS CompliantActive
High-performance current-mode PWM power switch
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8521J
- Store part #
- C22434955
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,324 in stock
#C22434955
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.06 | ₹55.06 |
| 10+ | ₹43.18 | ₹431.80 |
| 30+ | ₹38.00 | ₹1,140.00 |
| 100+ | ₹31.53 | ₹3,153.00 |
| 500+ | ₹28.72 | ₹14,360.00 |
| 1,000+ | ₹27.86 | ₹27,860.00 |
1 × ₹55.06
₹55.06
excl. GST
₹64.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8521J
₹55.06 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 60kHz~70kHz
- Voltage - Supply
- 14.5V~40V
- Voltage - Breakdown
- 650V
- Topology
- Flyback
- Features
- Over Voltage Protection;Under Voltage Protection;Over Current Protection;Overload Protection;Soft-start
- Duty Cycle(Max)
- 70%
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
GP8521X is a high-performance AC/DC current-mode PWM power switch designed for chargers and adapters. GP8521X features audio noise elimination. The operating frequency is 65kHz with ±4% frequency jittering. As output power decreases, the IC reduces switching frequency based on power-saving mode control to improve light-load efficiency. When power drops below a certain threshold, the IC enters burst mode to reduce standby power consumption, keeping the no-load power dissipation of the entire unit below 75mW. It features seamless OCP/OPP recovery, constant power limiting, and OCP/OPP compensation across the full input voltage range. Multiple protection features are included, such as UVLO, VDD OVP, cycle-by-cycle current limiting OCP, and overload protection OLP. Available in SOP8 package.
Applications
- AC/DC Adapters
- Laptop Chargers
- Open-Frame SMPS
- Other Auxiliary Power Supplies
Key features
- Audio noise cancellation technology
- Energy-saving mode for improved light-load efficiency
- Fixed 65kHz switching frequency
- OCP/OPP seamless recovery control
- Low standby power consumption 75mW
- Built-in synchronous harmonic compensation
- Leading-edge blanking (LEB) and cycle-by-cycle current limiting
- Open-circuit protection, OVP, UVP, OTP
