HaloChipDatasheet (PDF)

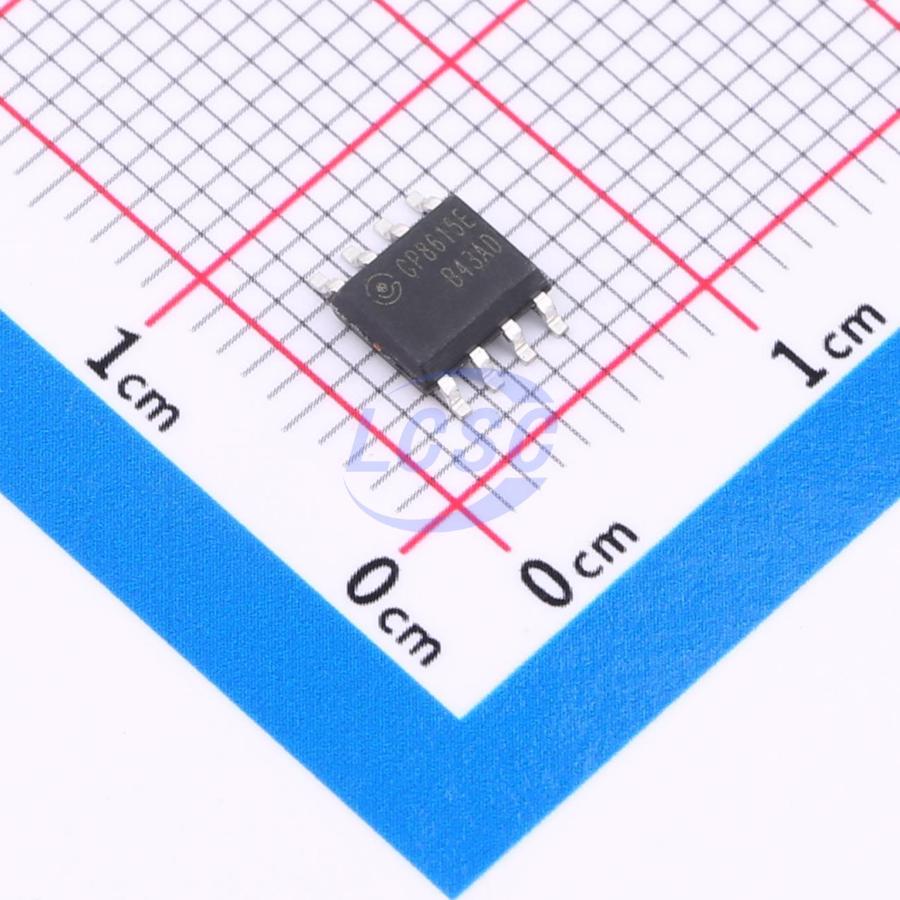

GP8615E
70kHz 700V Flyback SOP-8 AC DC Converters, Offline Switchers RoHS
SOP-8ROHS CompliantActive
Constant Voltage and Constant Current Primary-Side Feedback QR Conduction Control Chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8615E
- Store part #
- C47117410
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C47117410
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.23 | ₹81.15 |
| 50+ | ₹12.83 | ₹641.50 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹9.86 | ₹4,930.00 |
| 2,500+ | ₹8.84 | ₹22,100.00 |
| 4,000+ | ₹8.33 | ₹33,320.00 |
5 × ₹16.23
₹81.15
excl. GST
₹95.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8615E
₹81.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 70kHz
- Voltage - Breakdown
- 700V
- Topology
- Flyback
- Features
- Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Voltage (CV);Constant Current Mode (CC);Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Short Circuit Protection
- Feedback System
- Primary-side feedback
- Working Mode
- DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
GP8615X is a constant-voltage, constant-current primary-side feedback QR conduction control IC designed for chargers and adapters. It features a proprietary output line loss compensation technique that effectively compensates for the voltage drop caused by output current across the output cable. The built-in loop compensation circuit eliminates the need for external compensation components, ensuring excellent system stability. The IC delivers superior CV/CC characteristics and meets the standby power consumption requirement of less than 75mW. GP8615X incorporates multiple protection features, including open-circuit protection, overvoltage protection, and short-circuit protection. The IC is available in an SOP8 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Drop-in replacement for linear power supplies and RCC converters
Key features
- Primary-side feedback control
- High accuracy constant voltage and constant current
- Standby power consumption approx. 75mW
- Adjustable output line loss compensation
- Open-circuit protection, OVP, UVP, OTP, short-circuit protection
