HaloChipDatasheet (PDF)

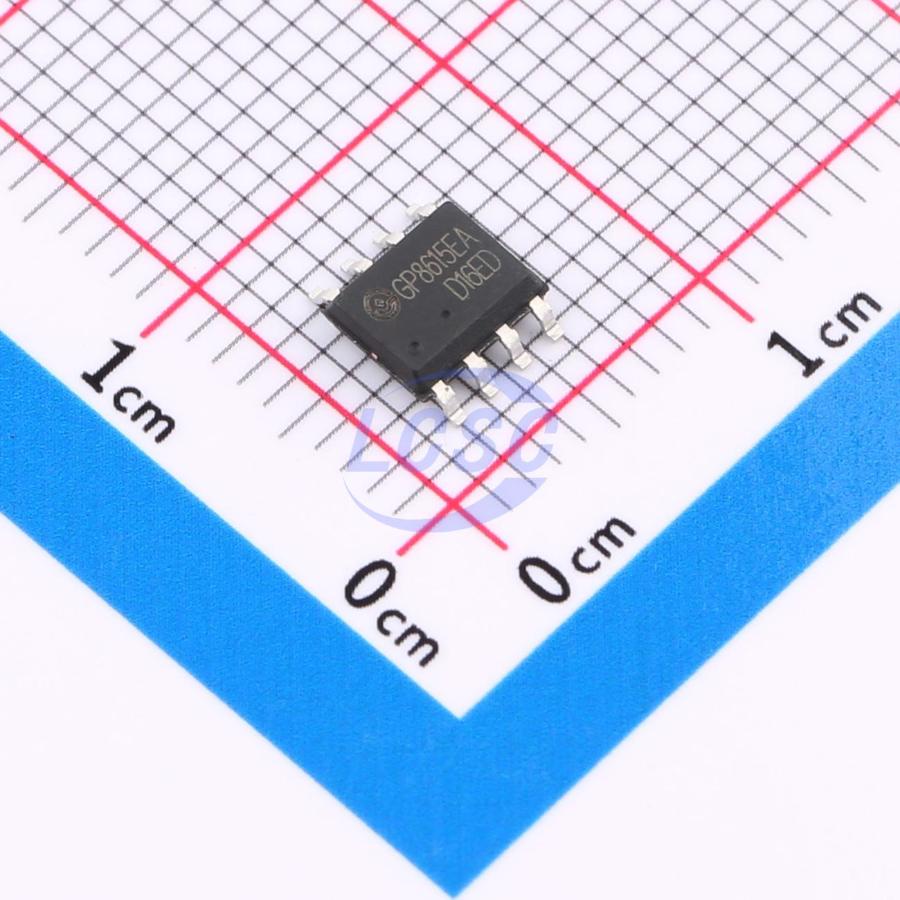

GP8615EA
70kHz 700V Flyback SOP-8 AC DC Converters, Offline Switchers
SOP-8RoHSActive
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8615EA
- Store part #
- C49420382
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,945 in stock
#C49420382
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.25 | ₹46.25 |
| 50+ | ₹8.12 | ₹406.00 |
| 150+ | ₹7.55 | ₹1,132.50 |
| 500+ | ₹7.13 | ₹3,565.00 |
| 2,500+ | ₹6.80 | ₹17,000.00 |
| 4,000+ | ₹6.63 | ₹26,520.00 |
5 × ₹9.25
₹46.25
excl. GST
₹54.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8615EA
₹46.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 70kHz
- Voltage - Breakdown
- 700V
- Topology
- Flyback
- Features
- Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
- Working Mode
- QR;DCM
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
GP8615X is a constant voltage/constant current primary-side feedback QR turn-on control IC designed for chargers and adapters. It features a proprietary output line loss compensation technology that effectively compensates for the voltage drop caused by output current losses across the output cable. The IC integrates an internal loop compensation circuit, eliminating the need for external compensation components, ensuring good system stability and excellent CV/CC characteristics while meeting the standby power consumption requirement of less than 75mW. The GP8615X incorporates multiple protection functions, including open-circuit, overvoltage, and short-circuit protection, and is available in an SOP8 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Linear power supply and RCC converter upgrades/replacements
Key features
- Primary-side feedback control
- High accuracy constant voltage and constant current
- ~75mW standby power consumption
- Adjustable output cable drop compensation
- OVP, UVP, OTP, SCP, open-circuit protection
