HaloChipDatasheet (PDF)

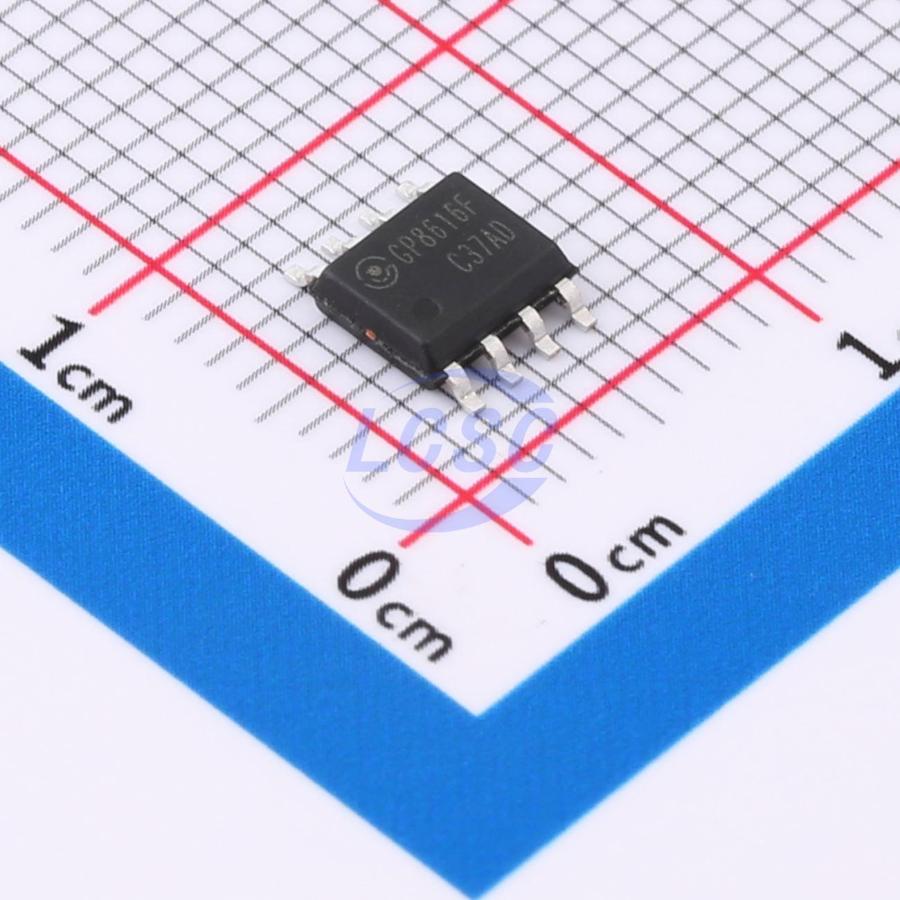

GP8616F
70kHz 800V 4.6V~24V Flyback SOP-8 AC DC Converters, Offline Switchers RoHS
SOP-8ROHS CompliantActive
Constant Voltage and Constant Current Primary-Side Feedback QR Conduction Control Chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8616F
- Store part #
- C47117412
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,975 in stock
#C47117412
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.24 | ₹71.20 |
| 50+ | ₹12.44 | ₹622.00 |
| 150+ | ₹11.66 | ₹1,749.00 |
| 500+ | ₹10.69 | ₹5,345.00 |
| 2,500+ | ₹10.27 | ₹25,675.00 |
| 4,000+ | ₹10.00 | ₹40,000.00 |
5 × ₹14.24
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8616F
₹71.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 70kHz
- Voltage - Breakdown
- 800V
- Voltage - Supply
- 4.6V~24V
- Topology
- Flyback
- Features
- Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Short Circuit Protection
- Feedback System
- Primary-side feedback
- Working Mode
- DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
GP8616X is a constant-voltage, constant-current primary-side feedback quasi-resonant turn-on control IC designed for chargers and adapters. It features a proprietary output cable loss compensation technique that effectively compensates for the voltage drop caused by output current along the cable. The IC integrates an internal loop compensation circuit, eliminating the need for external compensation while ensuring good system stability. It offers excellent CV/CC characteristics with standby power consumption below 75mW. The IC incorporates multiple protection functions including open-circuit, overvoltage, and short-circuit protection, and is available in an SOP8 package.
Applications
- Adapters and chargers for portable devices such as mobile phones, cordless phones, PDAs, and MP3 players
- LED driver power supplies
- Drop-in replacement for linear and RCC switching power supplies
Key features
- Primary-side feedback control
- High-accuracy constant voltage and constant current control
- Low standby power consumption of approximately 75mW
- Adjustable output line loss compensation
- Open-circuit, OVP, UVP, OTP, and short-circuit protection
