HaloChipDatasheet (PDF)

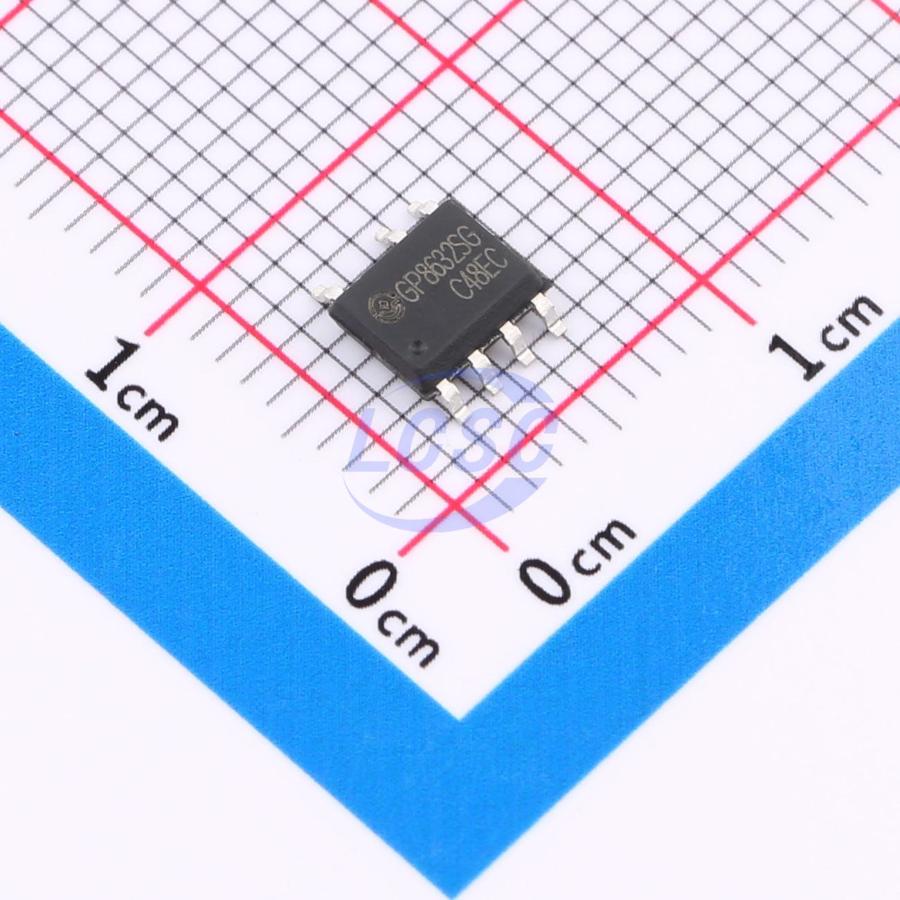

GP8632SG
100kHz 1.5A 14.5V~24V 800V Flyback 12V SOP-7 AC DC Converters, Offline Switchers
SOP-7RoHSActive
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8632SG
- Store part #
- C49420384
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C49420384
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.17 | ₹80.85 |
| 50+ | ₹14.12 | ₹706.00 |
| 150+ | ₹13.24 | ₹1,986.00 |
| 500+ | ₹12.15 | ₹6,075.00 |
| 2,500+ | ₹11.66 | ₹29,150.00 |
| 4,000+ | ₹11.36 | ₹45,440.00 |
5 × ₹16.17
₹80.85
excl. GST
₹95.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8632SG
₹80.85 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 100kHz
- Output Current
- 1.5A
- Voltage - Supply
- 14.5V~24V
- Voltage - Breakdown
- 800V
- Topology
- Flyback
- Features
- Quasi-resonant/valley switching;Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Voltage (CV);Constant Current Mode (CC);Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Short Circuit Protection
- Output Voltage
- 12V
- Feedback System
- Primary-side feedback
- Working Mode
- DCM
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
GP8632SX is a primary-side feedback valley-switching control IC with constant voltage (CV) and constant current (CC) regulation, designed for chargers and adapters. It features a proprietary output cable loss compensation technology that effectively compensates for the voltage drop caused by output current across the output cable. The IC integrates an internal loop compensation circuit, eliminating the need for external compensation components while ensuring excellent system stability. GP8632SX achieves superior CV/CC characteristics and meets the standby power consumption requirement of less than 75mW. The IC provides multiple protection features, including open-circuit protection, overvoltage protection (OVP), and short-circuit protection. GP8632SX is available in an SOP7 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Linear power supply and RCC converter upgrades/replacements
Key features
- Primary-side feedback control
- High accuracy constant voltage and constant current
- ~75mW standby power consumption
- Adjustable output cable drop compensation
- OVP, UVP, OTP, SCP, open-circuit protection
