HaloChipDatasheet (PDF)

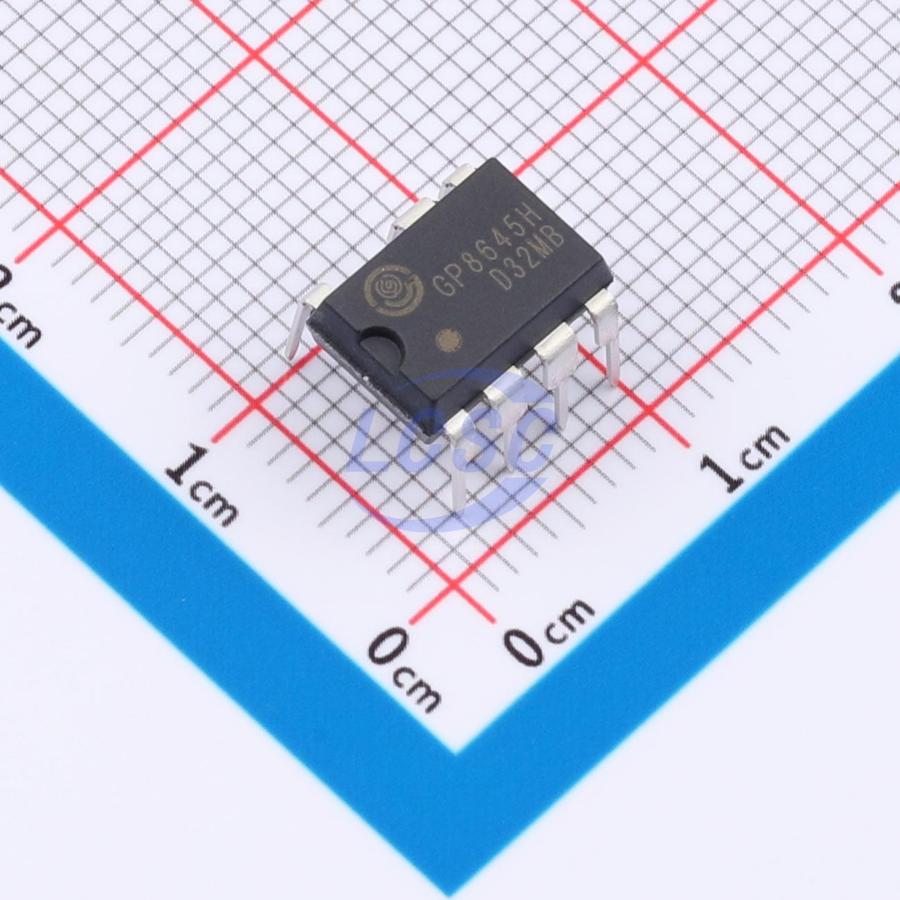

GP8645H
70kHz 18V~32V 650V Flyback DIP-7 AC DC Converters, Offline Switchers
DIP-7RoHSActive
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8645H
- Store part #
- C49420387
- Package / case
- DIP-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C49420387
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.66 | ₹198.30 |
| 50+ | ₹31.14 | ₹1,557.00 |
| 150+ | ₹27.49 | ₹4,123.50 |
| 500+ | ₹22.94 | ₹11,470.00 |
| 2,000+ | ₹20.92 | ₹41,840.00 |
| 4,000+ | ₹19.70 | ₹78,800.00 |
5 × ₹39.66
₹198.30
excl. GST
₹233.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
GP8645H
₹198.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 70kHz
- Voltage - Supply
- 18V~32V
- Voltage - Breakdown
- 650V
- Topology
- Flyback
- Features
- Cable compensation;Audio noise elimination;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Soft-start;Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP)
- Working Mode
- PFM Modulation;PWM Modulation
- Feedback System
- Primary-side feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.777 g
Overview
GP8645H is a high-performance AC/DC power control switch designed for chargers and adapters. This IC adopts primary-side feedback and control, achieving 4% CC/CV accuracy without optocouplers or TL431. PFM control is employed during constant-current operation, while a PFM/PWM multi-mode composite control scheme is used during constant-voltage operation. In addition, the IC integrates output cable compensation, helping to reduce switching losses, simplify system EMI design, and optimize output characteristics. The GP8645H provides soft-start, audio noise cancellation, and multiple protection features, including auto-restart, cycle-by-cycle current limiting, VCC OVP/UVP, pin open/short-circuit protection, and drive clamp protection. This IC is available in a DIP7 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Replacement for linear power supplies and RCC switching power supplies
- Other auxiliary power supplies
Key features
- Primary-side sensing and feedback, no optocoupler or TL431 required
- 4% CC/CV accuracy under standard input conditions
- Output line loss compensation
- Ultra-low standby power consumption: 70mW
- Audio noise suppression
- Leading-edge blanking
- Cycle-by-cycle current limiting
- VCC OVP/UVP protection
- Pin open-circuit protection
