HaloChipDatasheet (PDF)

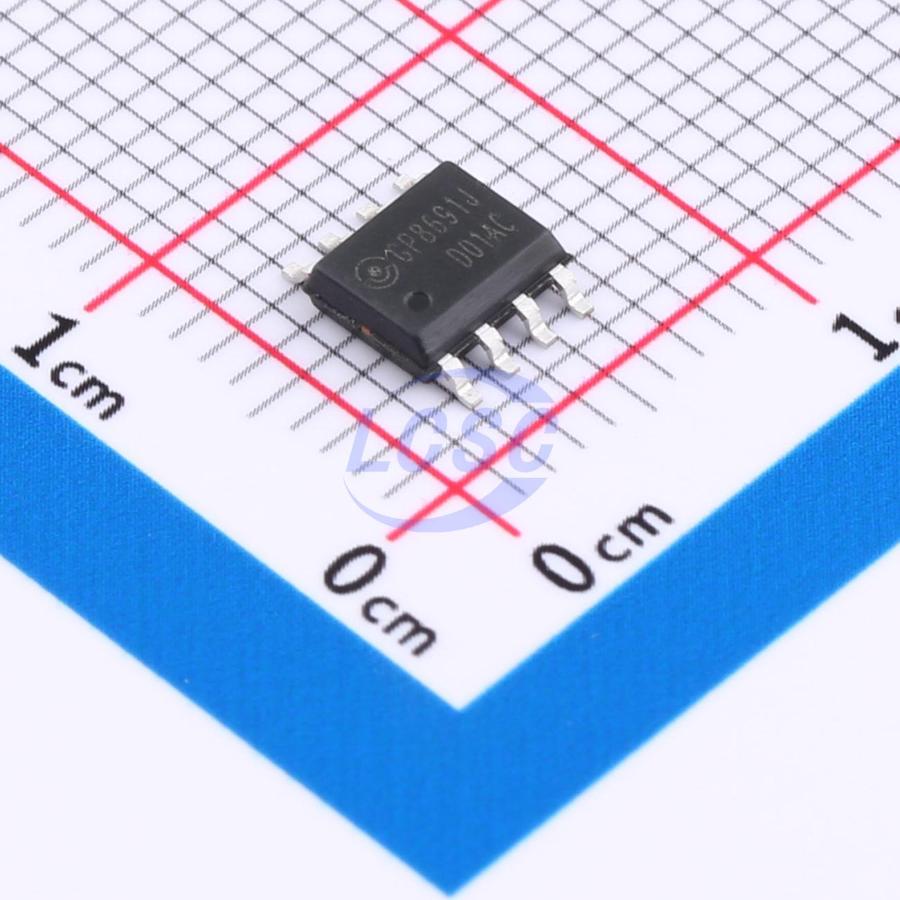

GP8691J
70kHz 14.5V~31V 650V Flyback SOP-8 AC DC Converters, Offline Switchers RoHS
SOP-8ROHS CompliantActive
Primary-side feedback QR conduction control chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8691J
- Store part #
- C47117414
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,780 in stock
#C47117414
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.35 | ₹106.75 |
| 50+ | ₹18.64 | ₹932.00 |
| 150+ | ₹17.49 | ₹2,623.50 |
| 500+ | ₹16.03 | ₹8,015.00 |
| 2,500+ | ₹15.40 | ₹38,500.00 |
| 4,000+ | ₹15.00 | ₹60,000.00 |
5 × ₹21.35
₹106.75
excl. GST
₹125.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8691J
₹106.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 70kHz
- Voltage - Supply
- 14.5V~31V
- Voltage - Breakdown
- 650V
- Topology
- Flyback
- Features
- Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Under Voltage Protection;Overtemperature protection (OTP);Short Circuit Protection
- Feedback System
- Primary-side feedback
- Working Mode
- DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
Integrated power composite transistor, constant voltage/constant current primary-side feedback QR turn-on control IC for chargers and adapters. Features proprietary output cable loss compensation technology to effectively compensate for the voltage drop caused by output current across the output cable. Built-in loop compensation circuit eliminates external compensation components, ensuring excellent system stability. Achieves superior CV/CC characteristics with standby power consumption below 75mW. Comprehensive protection features include open-circuit protection, OVP, and short-circuit protection. SOP8 package.
Applications
- Portable device adapters/chargers
- LED driver power supplies
- Linear power supply and RCC converter upgrades
Key features
- High reliability primary-side high-voltage test chip
- Primary-side feedback control
- High CV/CC accuracy
- Standby power consumption ~75mW
- Adjustable output line loss compensation
- FB open-circuit protection, OVP, UVP, OTP, FB-to-GND short-circuit protection, secondary winding short-circuit protection, secondary Schottky short-circuit reverse-connection protection, output OVP/UVP
