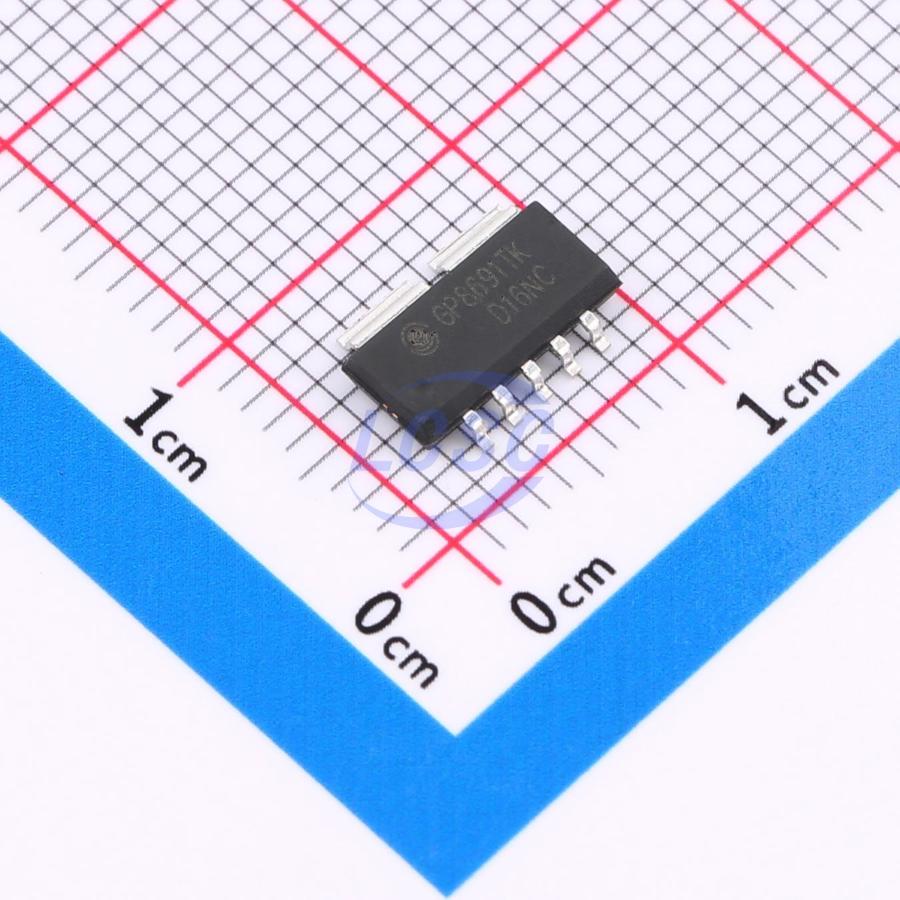

HaloChip

GP8691TK

70kHz 14.5V~31V 750V Flyback SOP-7PLUS AC DC Converters, Offline Switchers

SOP-7PLUSRoHSActive

Manufacturer: HaloChip
Manufacturer part #: GP8691TK
Store part #: C49420396
Package / case: SOP-7PLUS
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,905 in stock

#C49420396

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.47	₹132.35
50+	₹23.39	₹1,169.50
150+	₹22.07	₹3,310.50
500+	₹20.41	₹10,205.00
2,500+	₹19.67	₹49,175.00
4,000+	₹19.24	₹76,960.00

Quantity (min 5, multiples of 5)

5 × ₹26.47

₹132.35

excl. GST

₹156.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP8691TK

₹132.35 for 5 + GST

Specifications

Operating Temperature: -40℃~+150℃
Frequency - Switching: 70kHz
Voltage - Supply: 14.5V~31V
Voltage - Breakdown: 750V
Topology: Flyback
Features: Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
Feedback System: Primary-side feedback
Working Mode: DCM

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.252 g

Overview

Integrated power composite transistor, employing primary-side feedback quasi-resonant turn-on control with constant voltage and constant current regulation, suitable for chargers and adapters. Proprietary output cable loss compensation effectively compensates for the voltage drop across the output wiring. Built-in loop compensation eliminates the need for external components, ensuring excellent system stability. Achieves superior CV/CC characteristics with standby power consumption below 75mW. Comprehensive protection features include open-circuit, overvoltage, and short-circuit protection. Available in SOP7-PLUS package.

Applications

Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
LED driver power supplies
Upgrade replacement for linear power supplies and RC-coupled converters

Key features

Primary-secondary high-voltage tested, high reliability
Primary-side feedback control
High CV/CC accuracy
Standby power consumption ~75mW
Adjustable output line loss compensation
Protections: FB open-circuit, OVP, UVP, OTP, FB-to-GND short-circuit, secondary winding short-circuit, secondary Schottky short/reverse protection, output OVP/UVP
