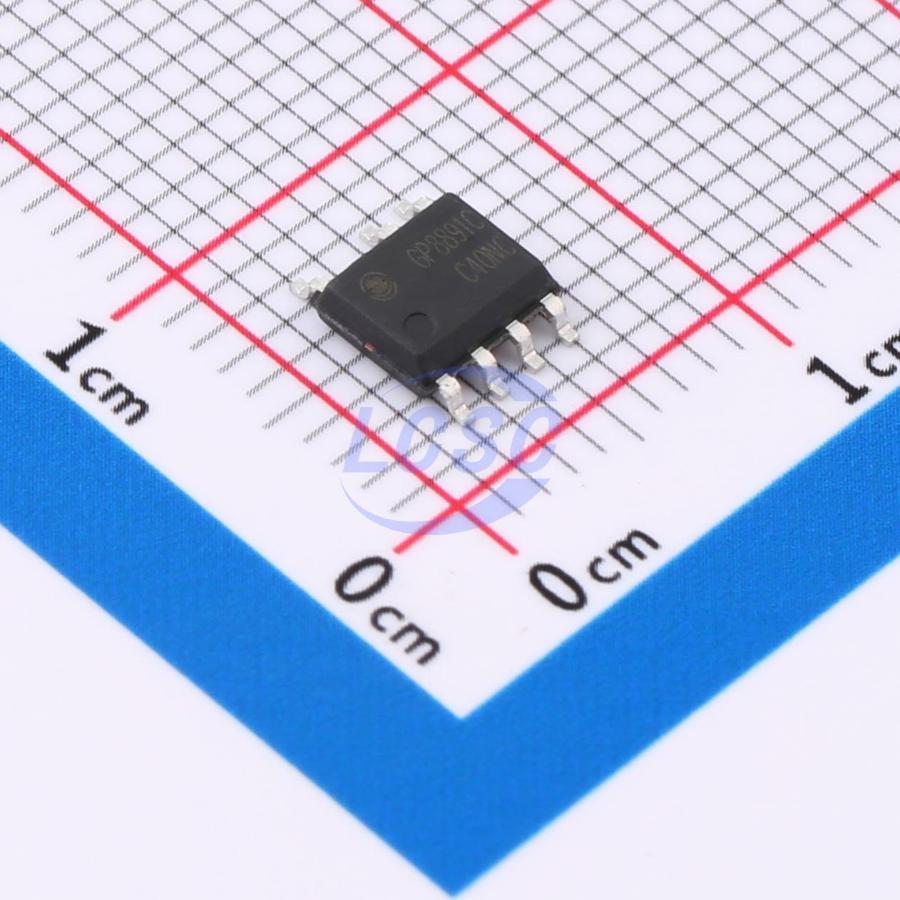

GP8891C
70kHz 1A 2.8V~5.1V 850V Flyback 5V SOP-7 AC DC Converters, Offline Switchers RoHS
SOP-7ROHS CompliantActive
Self-powered constant voltage and constant current primary-side feedback control chip
- Manufacturer
- HaloChip
- Manufacturer part #
- GP8891C
- Store part #
- C47117416
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,540 in stock
#C47117416
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 1,000+ | ₹5.38 | ₹5,380.00 |
| 4,000+ | ₹4.83 | ₹19,320.00 |
| 8,000+ | ₹4.55 | ₹36,400.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
GP8891C
₹88.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Frequency - Switching
- 70kHz
- Output Current
- 1A
- Voltage - Supply
- 2.8V~5.1V
- Voltage - Breakdown
- 850V
- Topology
- Flyback
- Features
- High voltage direct start;Cable compensation;Leading edge blanking;Under-voltage lockout;Constant Current Mode (CC);Constant Voltage (CV);Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Under Voltage Protection
- Output Voltage
- 5V
- Duty Cycle(Max)
- 55%
- Feedback System
- Primary-side feedback
- Working Mode
- DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.175 g
Overview
A self-powered constant voltage/constant current primary-side feedback control IC designed for chargers and adapters. Features proprietary output line loss compensation technology to effectively compensate for the voltage drop caused by output current across the output cable. Integrated startup circuit eliminates external startup resistors; built-in feedback voltage divider pull-down resistor and current sensing resistor simplify the peripheral circuit. Integrated loop compensation circuit requires no external compensation, ensuring good system stability. Achieves excellent CV/CC characteristics with standby power consumption less than 75 mW. Provides multiple protection features including open-circuit protection, overvoltage protection, and output short-circuit protection. Unique single-cycle peak current shutdown mechanism prevents power transistor failure due to overcurrent. SOP7 package.
Applications
- Adapters and chargers for mobile phones, cordless phones, PDAs, MP3 players, and other portable devices
- LED driver power supplies
- Replacement for linear power supplies and RCC switching power supplies
- Other auxiliary power supplies
Key features
- Self-powered primary-side feedback control
- High CV/CC accuracy
- Standby power consumption ~75 mW
- Adjustable output line loss compensation
- OVP, UVP, OCP, SCP
- OTP
- Compatible with dual-winding and tri-winding topologies
