Guestgood

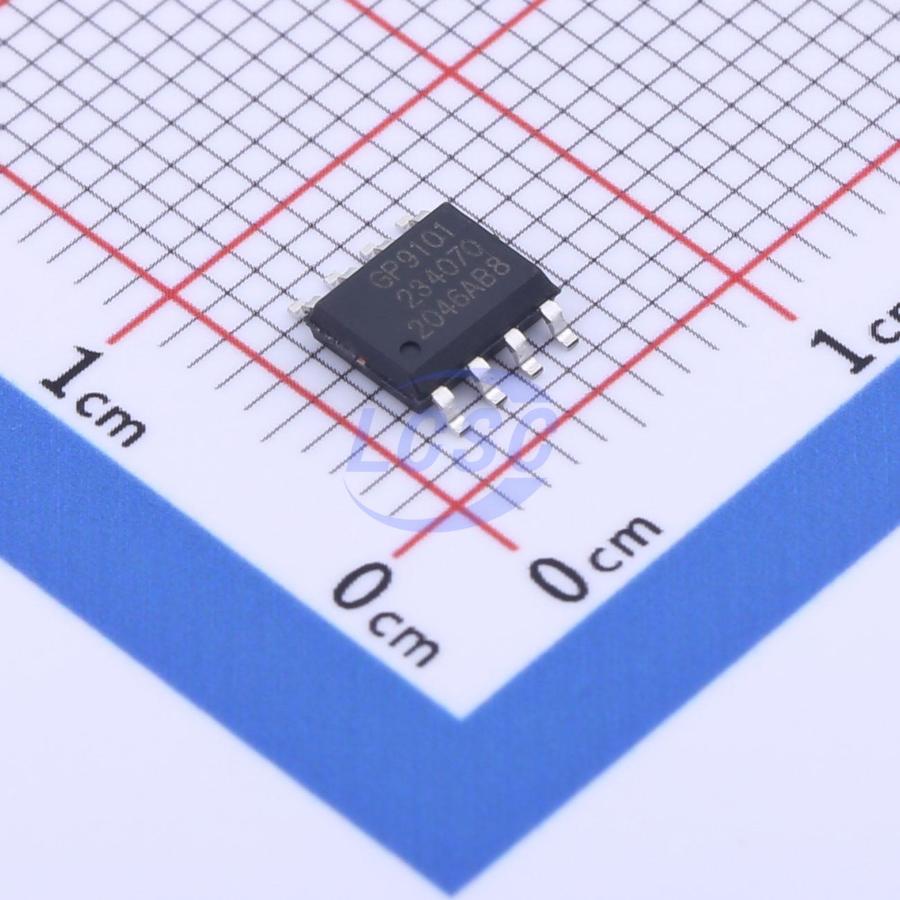

GP9101-F10K-L2H1-SW

1 4.5V~5.5V SOP-8 ADCs/DACs - Special Purpose RoHS

SOP-8ROHS CompliantActive

Analog Voltage to PWM

Manufacturer: Guestgood
Manufacturer part #: GP9101-F10K-L2H1-SW
Store part #: C2837705
Package / case: SOP-8
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,635 in stock

#C2837705

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹100.83	₹100.83
10+	₹80.66	₹806.60
30+	₹70.69	₹2,120.70
100+	₹60.71	₹6,071.00
500+	₹55.29	₹27,645.00
1,000+	₹52.26	₹52,260.00

Quantity (min 1)

1 × ₹100.83

₹100.83

excl. GST

₹118.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP9101-F10K-L2H1-SW

₹100.83 for 1 + GST

Specifications

Number of Channels: 1
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 4.5V~5.5V
Quiescent Current: 2000uA
Resolution (Bits): -;1MHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.05 g

Overview

GP9101 is an analog-to-PWM signal converter, equivalent to an ADC with PWM signal output. The device linearly converts an analog voltage from 0V to VCC into a PWM signal with a duty cycle of 0% to 100%, with a duty cycle linearity error of less than 0.5%.

Applications

DC motor speed control
LED dimming
Industrial analog signal isolation
Inverter
Power supply

Key features

Linearly converts analog voltage input (0V to VCC) to PWM output with 0% ~ 100% duty cycle
Output PWM frequency range: 1 Hz ~ 1 MHz
Maximum PWM duty cycle error: < 1%
PWM duty cycle linearity error: < 0.5%
Supply voltage: 4.5V ~ 5.5V
Power consumption: < 5 mA
Startup time: < 2 ms
Operating temperature: -40°C ~ 85°C, -40°C ~ 125°C
