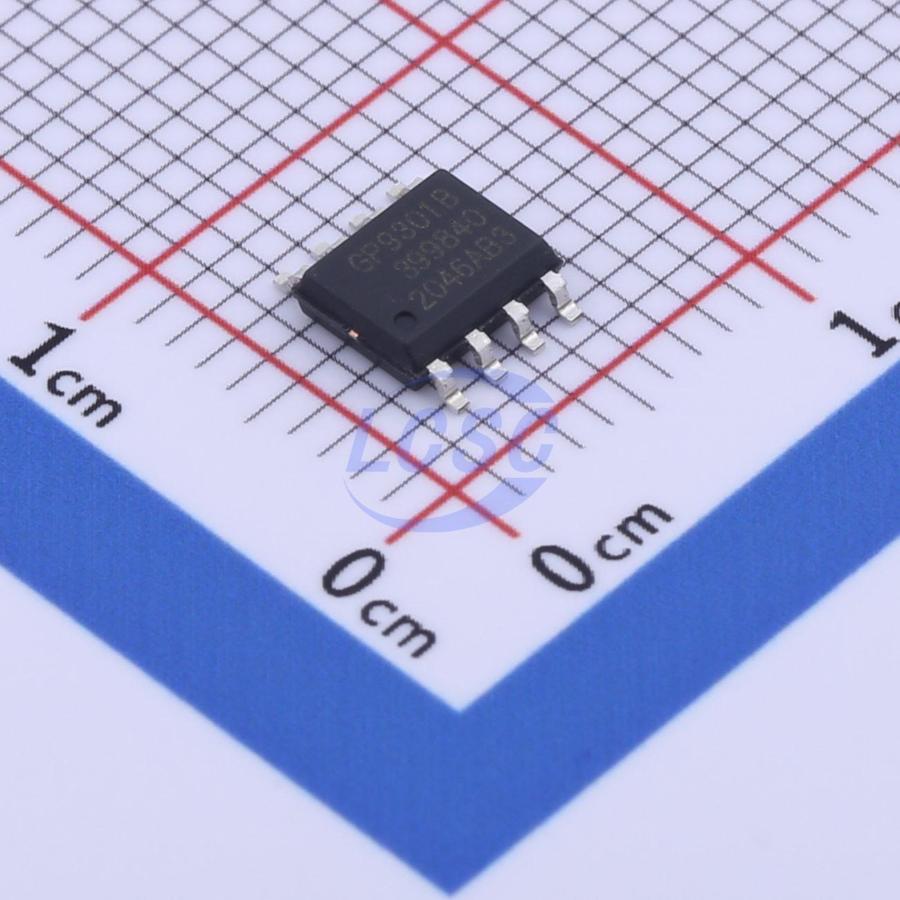

GP9301B-F1K-D5V9-SW

GP9301B is an analog-to-PWM signal converter, functionally equivalent to an ADC with PWM output. The device linearly converts a 0V to 10V analog voltage into a PWM signal with a duty cycle ranging from 0% to 100%, with a duty cycle linearity error of less than 0.5%. It also supports 100K resistor and PWM signal inputs. GP9301BM is a capacitive isolation-enabled variant.

Applications

• DC motor speed control
• LED dimming
• Industrial analog signal isolation
• Inverter
• Power supply

Key features

• GP9301B linearly converts 0V to 10V analog voltage input into 0% - 100% duty cycle PWM signal output.
• GP9301BM linearly converts 0V to 10V analog voltage input into 0% - 100% duty cycle PWM signal, then outputs the PWM signal after high-frequency modulation, for capacitive isolation applications.
• Input signal compatible with 0 - 10V, PWM, 100KΩ resistor.
• Input PWM signal high level: >2.7V.
• Built-in 100uA pull-up current on input signal VIN pin.
• Output PWM signal frequency range: 1Hz to 1MHz.
• During fast power-up/down, ensure VCC supply voltage drops below 1.5V before restarting.
• Output PWM signal high level: 5V.
• Maximum PWM duty cycle error: <1%.
• PWM duty cycle linearity error: <0.5%.
• Supply voltage: 10V - 40V.
• Power consumption: 5mA @TYP.
• Start-up time: <2ms.
• Operating temperature: -40°C to 125°C.
