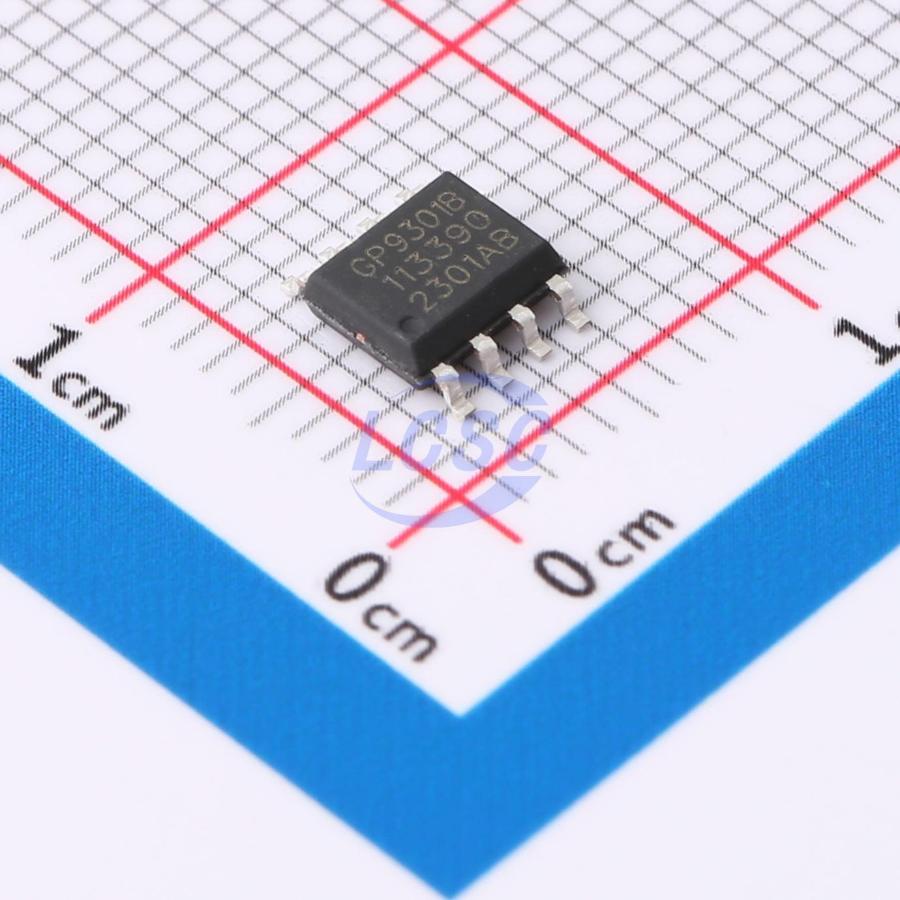

GP9301B-F1K-N-SW

1 10V~40V SOP-8 ADCs/DACs - Special Purpose RoHS

SOP-8ROHS CompliantActive

0-10V/PWM/Resistor to 0%-100% PWM

Manufacturer: Guestgood
Manufacturer part #: GP9301B-F1K-N-SW
Store part #: C5464822
Package / case: SOP-8
Category: ADCs/DACs - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,794 in stock

#C5464822

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹72.14	₹72.14
10+	₹63.89	₹638.90
30+	₹59.97	₹1,799.10
100+	₹55.84	₹5,584.00
500+	₹53.45	₹26,725.00
1,000+	₹52.15	₹52,150.00

Quantity (min 1)

1 × ₹72.14

₹72.14

excl. GST

₹85.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

GP9301B-F1K-N-SW

₹72.14 for 1 + GST

Specifications

Number of Channels: 1
Operating Temperature: -40℃~+85℃
ChipType: PWM-to-Analog Converter
Voltage - Supply: 10V~40V
Quiescent Current: 5mA
Resolution (Bits): -;1MHz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.168 g

Overview

GP9301B is an analog-to-PWM signal converter, functionally equivalent to an ADC with PWM output. The device linearly converts a 0V to 10V analog voltage into a PWM signal with a duty cycle ranging from 0% to 100%, with a duty cycle linearity error of less than 0.5%. It also supports 100K resistor and PWM signal inputs. GP9301BM is a capacitive isolation-enabled variant.

Applications

DC motor speed control
LED dimming
Industrial analog signal isolation
Inverter
Power supply

Key features

GP9301B linearly converts 0V to 10V analog voltage input into 0% - 100% duty cycle PWM signal output.
GP9301BM linearly converts 0V to 10V analog voltage input into 0% - 100% duty cycle PWM signal, then outputs the PWM signal after high-frequency modulation, for capacitive isolation applications.
Input signal compatible with 0 - 10V, PWM, 100KΩ resistor.
Input PWM signal high level: >2.7V.
Built-in 100uA pull-up current on input signal VIN pin.
Output PWM signal frequency range: 1Hz to 1MHz.
During fast power-up/down, ensure VCC supply voltage drops below 1.5V before restarting.
Output PWM signal high level: 5V.
Maximum PWM duty cycle error: <1%.
PWM duty cycle linearity error: <0.5%.
Supply voltage: 10V - 40V.
Power consumption: 5mA @TYP.
Start-up time: <2ms.
Operating temperature: -40°C to 125°C.
