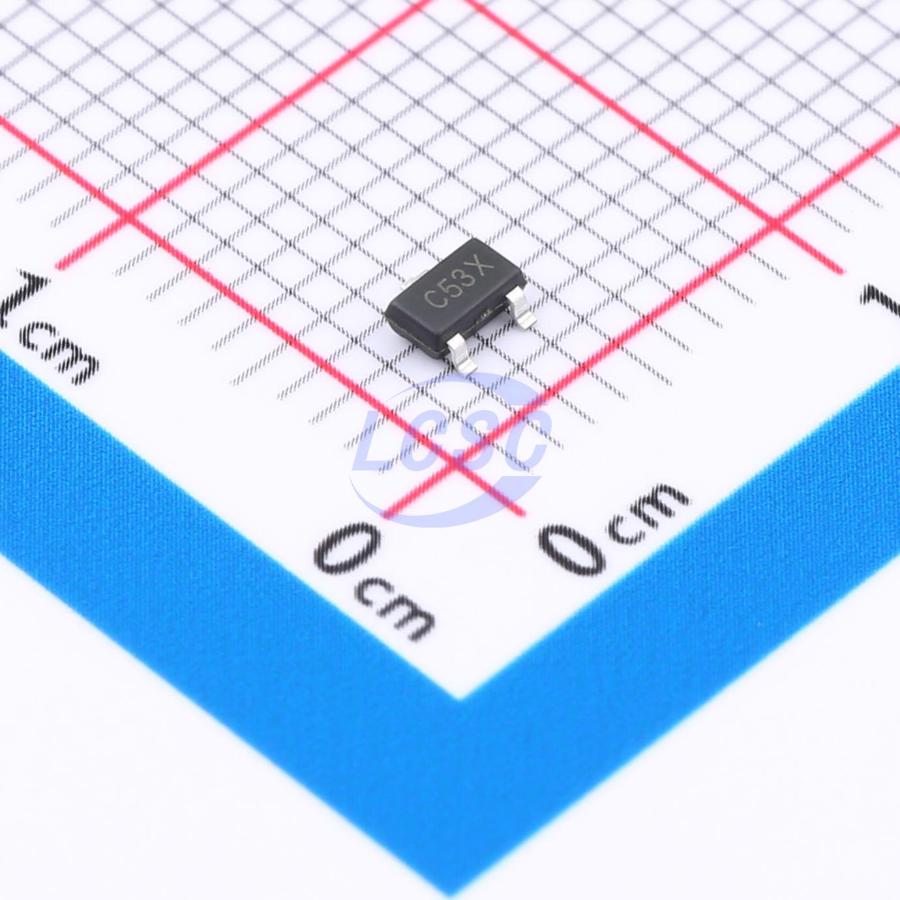

GR61CC2502MR
Supervisor Push-Pull 1 Channel SOT-23-3
SOT-23-3RoHSActive
Low Voltage Detector
- Manufacturer
- GR
- Manufacturer part #
- GR61CC2502MR
- Store part #
- C19631673
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,760 in stock
#C19631673
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.83 | ₹583.00 |
| 300+ | ₹5.07 | ₹1,521.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR61CC2502MR
₹73.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The GR61CCxx series is a high-precision, low-power voltage detector IC fabricated using CMOS process technology and laser trimming. The GR61CCxx series exhibits minimal temperature drift, achieving high voltage detection accuracy. The GR61CCxx series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Power-fail detector
- Microprocessor reset
- Non-volatile RAM signal storage protector
- Battery backup storage
Key features
- Low power consumption: typical 2.0μA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature coefficient detection voltage: typical ±50ppm/℃
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
