GRDatasheet (PDF)

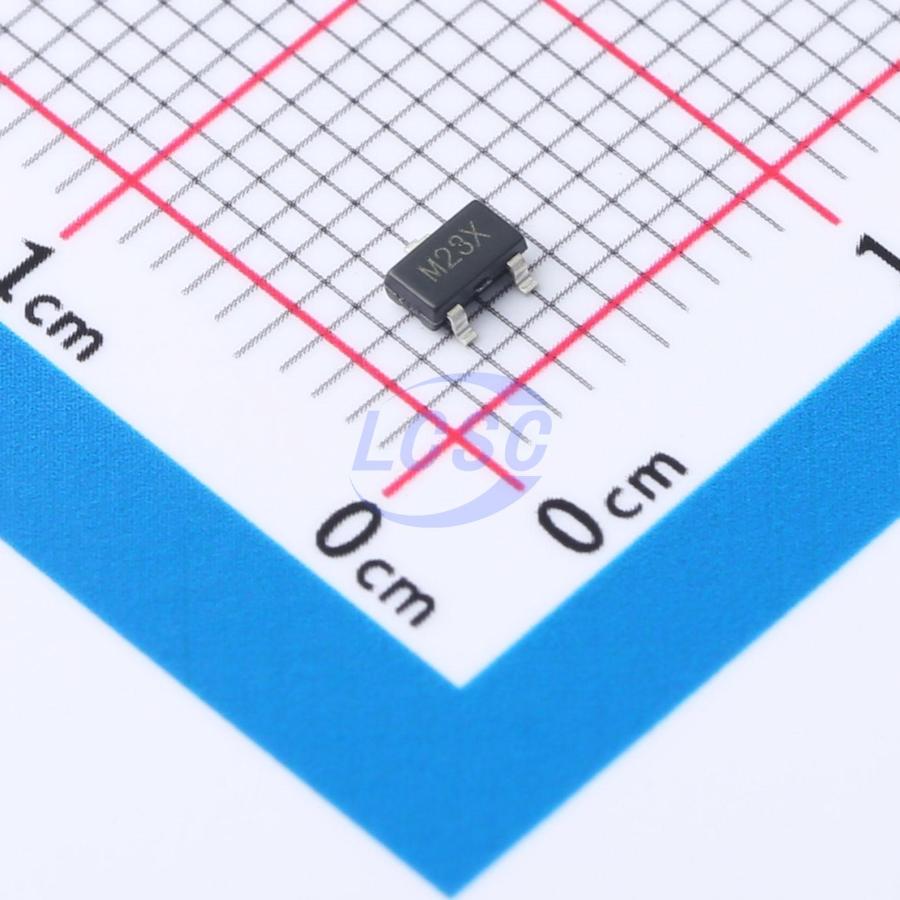

GR61CN2202MR
Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3RoHSActive
Low Voltage Detector
- Manufacturer
- GR
- Manufacturer part #
- GR61CN2202MR
- Store part #
- C19631679
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,120 in stock
#C19631679
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.66 | ₹76.60 |
| 100+ | ₹6.10 | ₹610.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.26 | ₹25,560.00 |
| 9,000+ | ₹4.02 | ₹36,180.00 |
10 × ₹7.66
₹76.60
excl. GST
₹90.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR61CN2202MR
₹76.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.2V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The GR61CNxx series is a high-precision, low-power voltage detector IC manufactured using CMOS process technology and laser trimming. The GR61CNxx series exhibits minimal temperature drift characteristics, delivering high voltage detection accuracy.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power-fail detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption: 2.0μA typical
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: ±50ppm/℃ typical
- Detection voltage: 2.0V - 5.0V, 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact packages: SOT23-3, SOT89-3, TO92
