GRDatasheet (PDF)

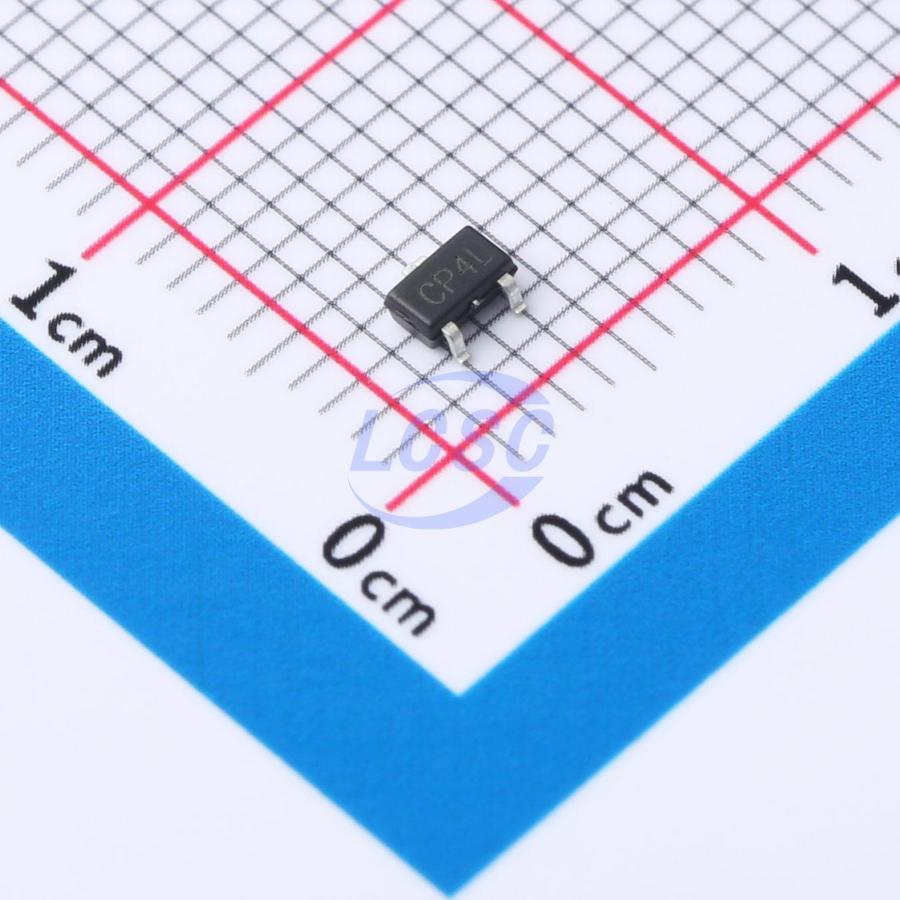

GR61CN3502MR
Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3RoHSActive
Low Voltage Detector
- Manufacturer
- GR
- Manufacturer part #
- GR61CN3502MR
- Store part #
- C19631684
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,730 in stock
#C19631684
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.40 | ₹74.00 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.08 | ₹1,524.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.40
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR61CN3502MR
₹74.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.2V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The GR61CNxx series is a high-precision, low-power voltage detector IC manufactured using CMOS process technology and laser trimming. The GR61CNxx series exhibits minimal temperature drift characteristics, delivering high voltage detection accuracy.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power-fail detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption: 2.0μA typical
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: ±50ppm/℃ typical
- Detection voltage: 2.0V - 5.0V, 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact packages: SOT23-3, SOT89-3, TO92
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GR61CN3602MR#C19631685GR · SOT-23-3 | GR | SOT-23-3 | 180 | ₹6.84 · 180 in stock | View |
