GRDatasheet (PDF)

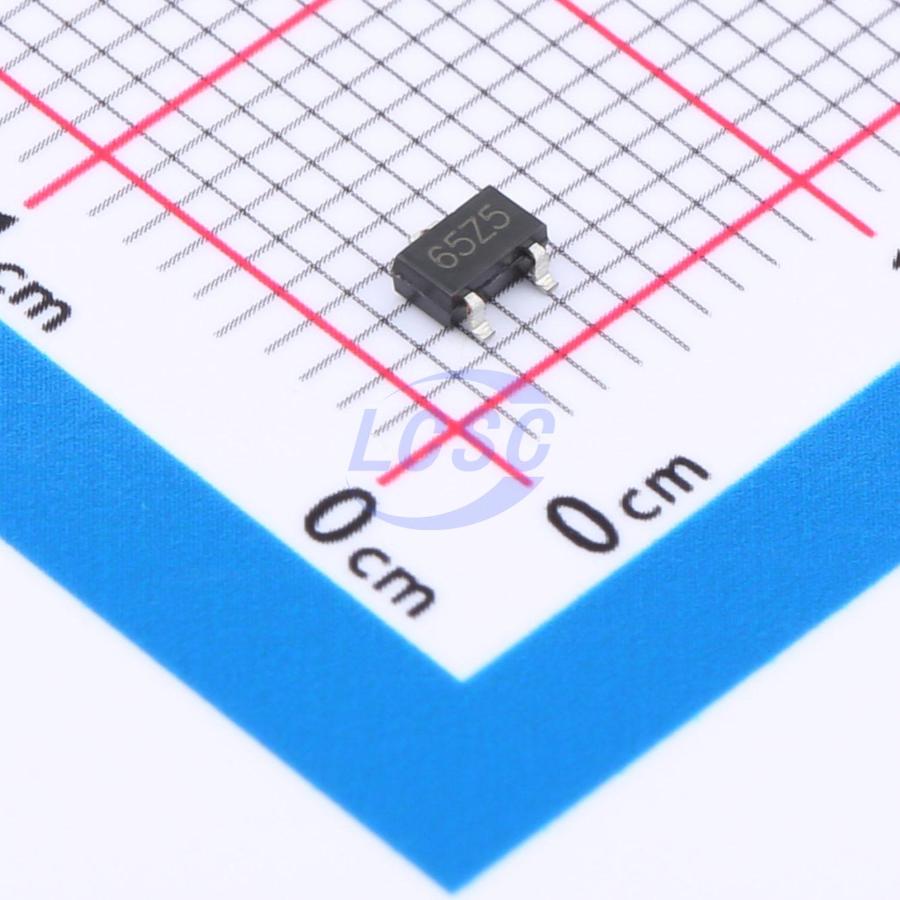

GR6206P302MR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3
SOT-23-3RoHSActive
IC REG LINEAR 3V 200mA SOT-23-3
- Manufacturer
- GR
- Manufacturer part #
- GR6206P302MR
- Store part #
- C19631744
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,160 in stock
#C19631744
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.73 | ₹54.60 |
| 200+ | ₹2.13 | ₹426.00 |
| 600+ | ₹1.81 | ₹1,086.00 |
| 3,000+ | ₹1.61 | ₹4,830.00 |
| 9,000+ | ₹1.44 | ₹12,960.00 |
| 21,000+ | ₹1.35 | ₹28,350.00 |
20 × ₹2.73
₹54.60
excl. GST
₹64.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR6206P302MR
₹54.60 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
The GR6206xx series are CMOS step-down voltage regulators with high ripple rejection, low quiescent current, low dropout, and overcurrent/short-circuit protection. These devices feature an ultra-low quiescent current (6.5μA Typ.), capable of delivering 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. The combination of low dropout voltage and low quiescent current makes these devices ideal for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instrumentation
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High-accuracy output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Usable as both regulator and voltage reference
- Ultra-low quiescent current (Typ. = 6.5 μA)
- Package: SOT89-3, SOT23-3
