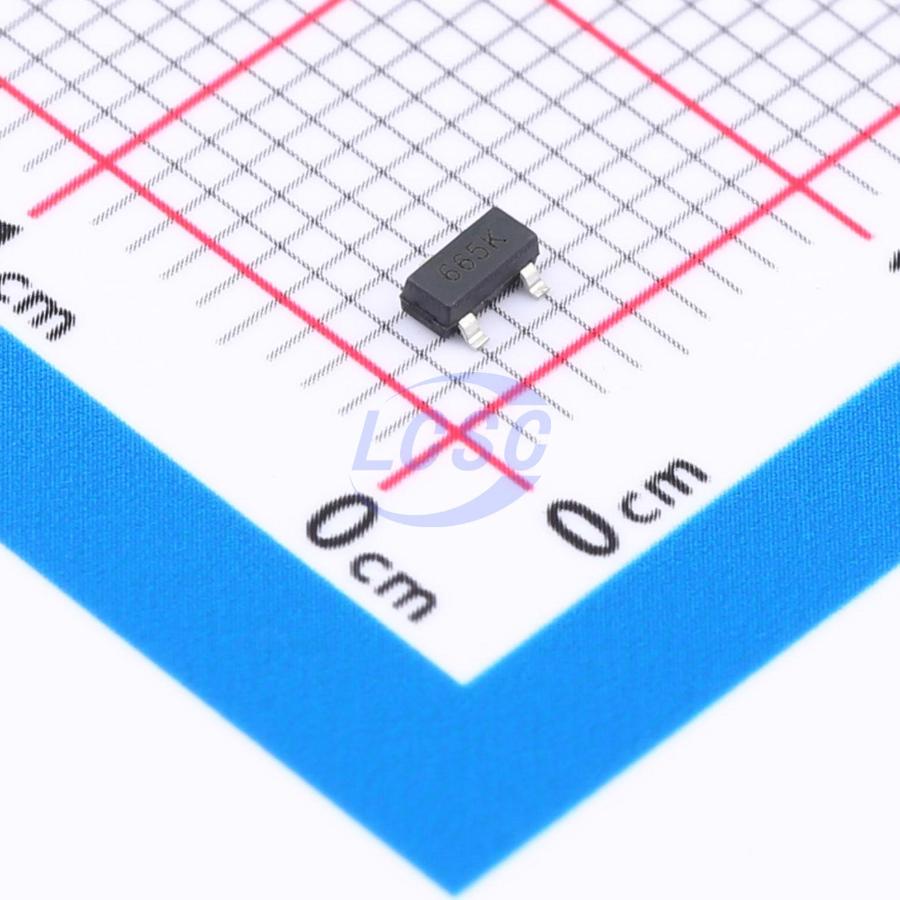

GR6206P362MR-G
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3
SOT-23-3RoHSActive
IC REG LINEAR 3.6V 200mA SOT-23-3
- Manufacturer
- GR
- Manufacturer part #
- GR6206P362MR-G
- Store part #
- C19631738
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,750 in stock
#C19631738
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.81 | ₹90.50 |
| 500+ | ₹1.40 | ₹700.00 |
| 3,000+ | ₹1.18 | ₹3,540.00 |
| 6,000+ | ₹1.05 | ₹6,300.00 |
| 24,000+ | ₹0.9261 | ₹22,226.40 |
| 51,000+ | ₹0.860 | ₹43,860.00 |
50 × ₹1.81
₹90.50
excl. GST
₹106.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GR6206P362MR-G
₹90.50 for 50 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 6.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.048 g
Overview
The GR6206xx series are CMOS step-down voltage regulators with high ripple rejection, low quiescent current, low dropout, and overcurrent/short-circuit protection. These devices feature an ultra-low quiescent current (6.5μA Typ.), capable of delivering 200mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. The combination of low dropout voltage and low quiescent current makes these devices ideal for battery-powered applications requiring extended battery life, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instrumentation
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High-accuracy output voltage: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Usable as both regulator and voltage reference
- Ultra-low quiescent current (Typ. = 6.5 μA)
- Package: SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GR6206P362MR#C19631746GR · SOT-23-3 | GR | SOT-23-3 | 4,580 | ₹2.66 · 4,580 in stock | View |
 | GR7336#C19631788GR · SOT-23-3 | GR | SOT-23-3 | 920 | ₹5.52 · 920 in stock | View |
